Mechanics Of Solids Pdf Force Friction Mechanics of solids tutorial with problems on force components, cartesian vectors, equilibrium, moments, and load distribution. for engineering students. Chapter 4 has a set of boundary value problems for solids with a simple geometry and an elastic constitutive law, which can be solved analytically; and simple examples of plane wave propagation.
Mechanics Of Solid 2 Pdf This document provides the details of an assignment for a mechanics of solids course, including 16 practice problems with accompanying figures. the problems cover various mechanics concepts like forces, moments, friction, and structural analysis. Often the greatest challenges in applying the requirements of static equilibrium to useful purpose is isolating the particle (or later the body) and showing on your isolation, your free body diagram, all the forces (and later all the torques as well) that act. We would get the same result if we summed the moments due to all the forces on the right. it is worth noting that the bending moment must be zero at a free end. We introduced a problem solving strategy in example 12.1 to illustrate the physical meaning of the equilibrium conditions. now we generalize this strategy in a list of steps to follow when solving static equilibrium problems for extended rigid bodies. we proceed in five practical steps.

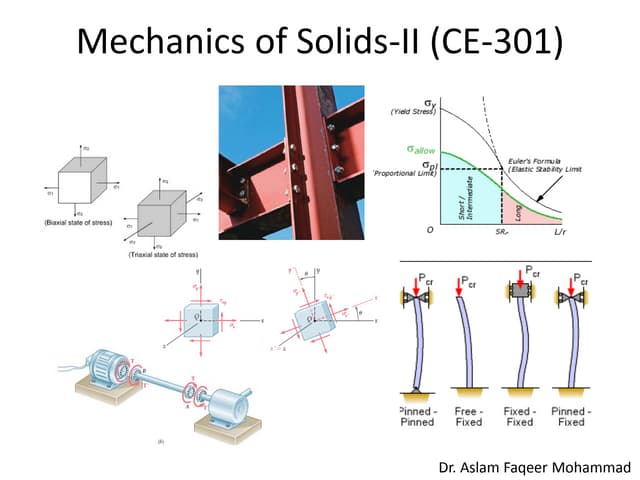

Torsion Mechanics Of Solids Pptx We would get the same result if we summed the moments due to all the forces on the right. it is worth noting that the bending moment must be zero at a free end. We introduced a problem solving strategy in example 12.1 to illustrate the physical meaning of the equilibrium conditions. now we generalize this strategy in a list of steps to follow when solving static equilibrium problems for extended rigid bodies. we proceed in five practical steps. Let us consider an elastic body in equilibrium under the action of a system of external forces. let us pass a fictitious plane through a point p(x1 , x2 , x3) in the interior of this body. The couple m is called the resisting moment or moment and the force v is called the resisting shear or shear. the sign of v and m are taken to be positive if they have the senses indicated above. instruction: write shear and moment equations for the beams in the following problems. in each problem, let x be the distance measured from left end of the beam. also, draw shear and moment diagrams. A variety of engineering problems can be solved by applying equilibrium conditions for rigid bodies. in applications, identify all forces that act on a rigid body and note their lever arms in rotation about a chosen rotation axis. Considering a three dimensional case in which stresses act in the x, y, and z directions gives the following set of equations of equilibrium. the correct stress distribution for a problem in solid mechanics must satisfy these equations of equilibrium.
Solution Engineering Mechanics Equilibrium Of Forces Studypool Let us consider an elastic body in equilibrium under the action of a system of external forces. let us pass a fictitious plane through a point p(x1 , x2 , x3) in the interior of this body. The couple m is called the resisting moment or moment and the force v is called the resisting shear or shear. the sign of v and m are taken to be positive if they have the senses indicated above. instruction: write shear and moment equations for the beams in the following problems. in each problem, let x be the distance measured from left end of the beam. also, draw shear and moment diagrams. A variety of engineering problems can be solved by applying equilibrium conditions for rigid bodies. in applications, identify all forces that act on a rigid body and note their lever arms in rotation about a chosen rotation axis. Considering a three dimensional case in which stresses act in the x, y, and z directions gives the following set of equations of equilibrium. the correct stress distribution for a problem in solid mechanics must satisfy these equations of equilibrium.
