Maximum Power Transfer Theorem Using Tinkercad

Maximum Power Transfer Theorem Pdf Circuit design maximum power transfer theorem created by mohan raj g with tinkercad. This video demonstrates the experiment "verification of maximum power transfer theorem" using tinkercad.

Maximum Power Transfer Theorem Pdf Each student's simulation, procedure to set up the circuit using tinkercad, readings recorded by varying the potentiometer resistance, and graph plotting voltage vs power. "simulation based labs for circuit analysis" brings you an unparalleled learning experience, integrating cutting edge simulation tools, multisim live and tinkercad, to explore the realm of circuits. This theorem states that in an active ac circuit, where a source with internal impedance (denoted as zs) is connected to a load (zl), the highest power transfer occurs when the impedance of the load matches the complex conjugate of the source impedance. A simple tutorial on maximum power transfer theorem. you will learn its statement, proof, maximum power vs maximum efficiency, example.

Maximum Power Transfer Theorem Pdf Electric Power Electrical This theorem states that in an active ac circuit, where a source with internal impedance (denoted as zs) is connected to a load (zl), the highest power transfer occurs when the impedance of the load matches the complex conjugate of the source impedance. A simple tutorial on maximum power transfer theorem. you will learn its statement, proof, maximum power vs maximum efficiency, example. Verification of maximum power transfer theorem. The maximum power transfer theorem states that the maximum power is transferred from a source to a load when the load resistance equals the thevenin (or norton) resistance of the source. Online electrical lab maximum power transfer theorem states that an independent voltage source in series with a resistance rs or an independent current source in parallel with a resistance rs, delivers a maximum power to that load when rl = rs. Learn the maximum power transfer theorem, its formula, and statement, with calculations for dc and ac circuits and practical applications.

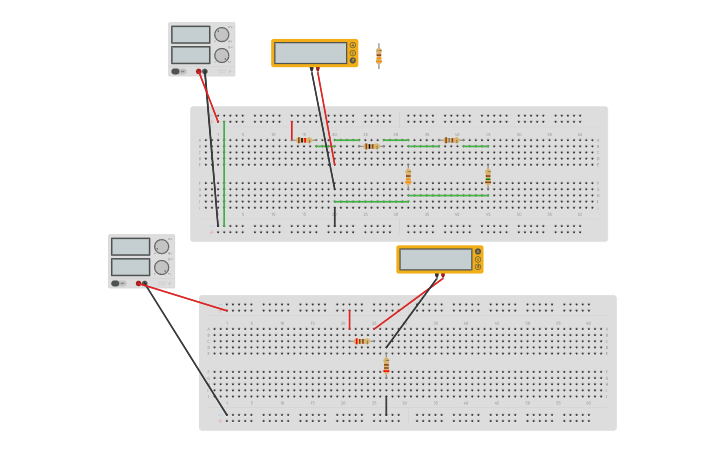

Circuit Design 2020322 Maximum Power Transfer Theorem Circuit Tinkercad Verification of maximum power transfer theorem. The maximum power transfer theorem states that the maximum power is transferred from a source to a load when the load resistance equals the thevenin (or norton) resistance of the source. Online electrical lab maximum power transfer theorem states that an independent voltage source in series with a resistance rs or an independent current source in parallel with a resistance rs, delivers a maximum power to that load when rl = rs. Learn the maximum power transfer theorem, its formula, and statement, with calculations for dc and ac circuits and practical applications.

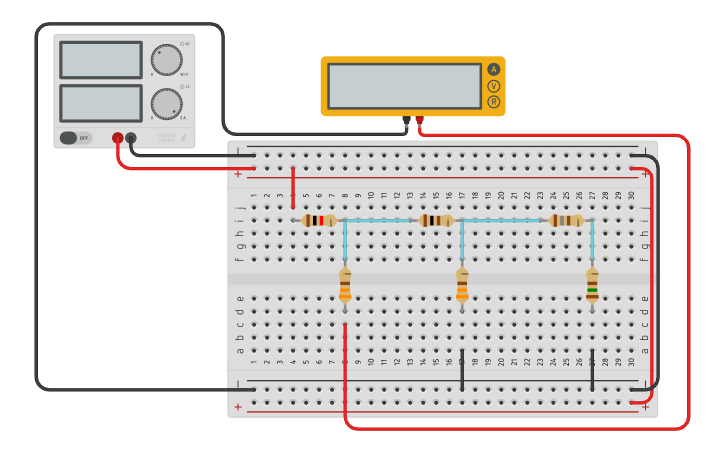

Circuit Design Maximum Power Theorem Tinkercad Online electrical lab maximum power transfer theorem states that an independent voltage source in series with a resistance rs or an independent current source in parallel with a resistance rs, delivers a maximum power to that load when rl = rs. Learn the maximum power transfer theorem, its formula, and statement, with calculations for dc and ac circuits and practical applications.
