Maximum Power Transfer Theorem Pdf A load will receive maximum power from a linear bilateral dc network when its total resistive value is exactly equal to the thévenin resistance of the network as “seen” by the load. The paper elucidates the maximum power transfer theorem (mptt) with detailed methodologies and examples for practical applications in electrical circuits.
Power Measurement And Maximum Power Transfer Download Free Pdf Watt To find the precise value that produces the maximum load power, the proof can be divided into two major portions. the first involves graphing the function and the second requires differential calculus to solve for a precise value. Abstract and figures a reformulation of the maximum power transfer theorem, in terms of terminal conditions of the network corresponding to maximum power delivery, is given. Problem 7. determine the optimum value of load resistance for maximum power transfer if the load is connected to an amplifier of output resistance 448 through a transformer with a turns ratio of 8:1. Q. what current i delivers the maximum power to the load? there are two ways to interpret this result.

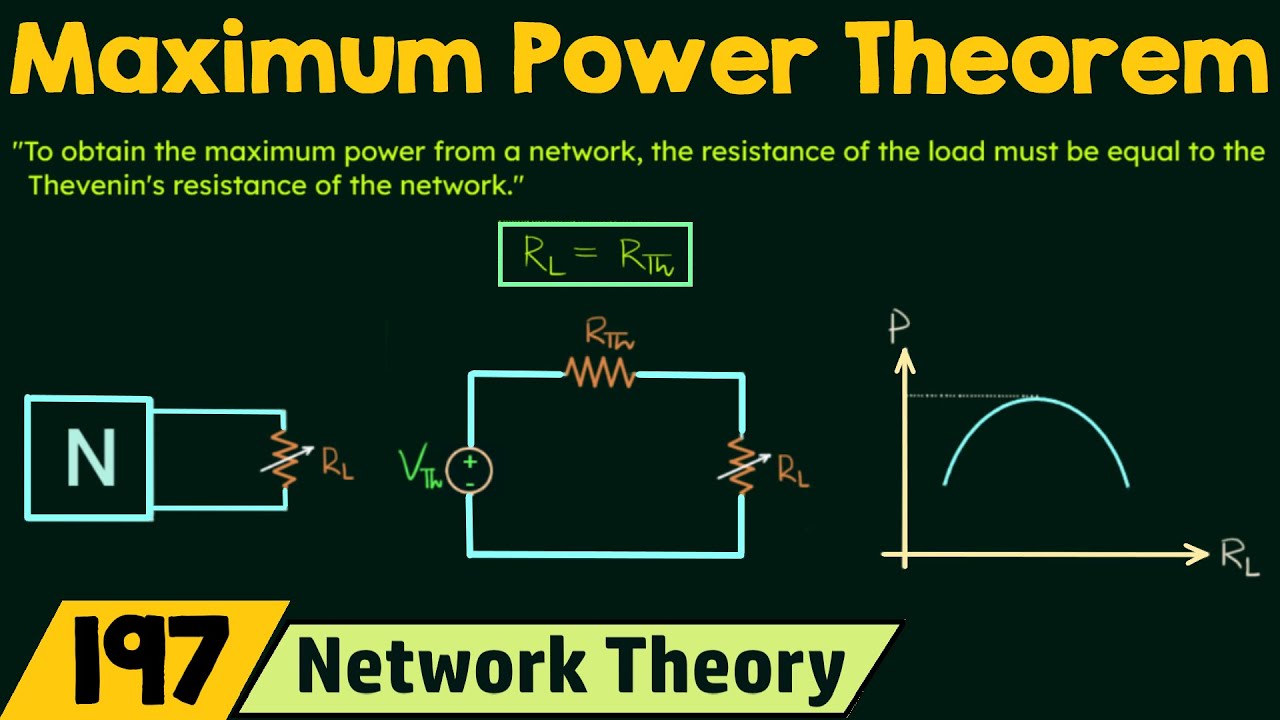

Maximum Power Transfer Theorem Maximum power transfer theorem free download as pdf file (.pdf), text file (.txt) or read online for free. the document discusses the maximum power transfer theorem, which states that maximum power is delivered from a source to a load when the load resistance equals the thevenin resistance. The load size always affects the amount of power transferred from the supply source, i.e., any change in the load resistance results to change in power transfer to the load. thus, the maximum power transfer theorem ensures the condition to transfer the maximum power to the load. A load will receive maximum power from a linear bilateral dc network when its total resistive value is exactly equal to the thévenin resistance of the network as “seen” by the load. One of the most useful theorems of electrical engineering is the maximum power transfer theorem.
