Titen Hd Heavy Duty Screw Anchor Product Data 2211229 Pdf Maximum installation torque for the titen hd anchor table. we’re hiring engineers! this site is protected by recaptcha and the google privacy policy and terms of service apply. by checking this box, i agree to receive communications from simpson strong tie in accordance with their privacy policy. © 2026 simpson strong tie company, inc. Testing shows the titen hd installs in concrete with 50% less torque than competitor anchors removable — ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved vibration and shock resistance excellent minimum edge distance performance.
Titen Hd Heavy Duty Screw Anchor For Concrete Masonry Pdf Drill The information presented in this table is to be used in conjunction with the design criteria of aci 318 19 chapter 17 , aci 318 14 chapter 17 and aci appendix d. 2. is the maximum permitted installation torque for the embedment depth range covered by this table using a torque wrench. The information presented in this table is to be used in conjunction with the design criteria of aci 318 14 chapter 17 or aci 318 11 appendix d, as applicable. The information presented in this table is to be used in conjunction with the design criteria of aci 318 14 chapter 17 and aci 318 11 appendix d. tinst,max is the maximum permitted installation torque for the embedment depth range covered by this table using a torque wrench. Figure 2 installation of 3 8" and 1 2" shank diameter screw anchors into the sofit of concrete filled profile steel deck floor and roof assemblies (1" = 25.4 mm).
Maximum Installation Torque For The Titen Hd Anchor Table The information presented in this table is to be used in conjunction with the design criteria of aci 318 14 chapter 17 and aci 318 11 appendix d. tinst,max is the maximum permitted installation torque for the embedment depth range covered by this table using a torque wrench. Figure 2 installation of 3 8" and 1 2" shank diameter screw anchors into the sofit of concrete filled profile steel deck floor and roof assemblies (1" = 25.4 mm). The information presented in this table is to be used in conjunction with the design criteria of aci 318 19 chapter 17, aci 318 14 chapter 17 and aci 318 11 appendix d, except as modified below. Testing shows the titen hd installs in concrete with 50% less torque than competitor anchors removable — ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved vibration and shock resistance excellent minimum edge distance performance. † these models do not meet minimum embedment depth requirements for strength design and require maximum installation torque of 25 ft. – lb. using a torque wrench, driver drill or cordless 1⁄4" impact driver with a maximum permitted torque rating of 100 ft. – lb. The maximum installation torque and maximum impact wrench torque rating requirements for the titen hd® products are detailed in tables 1a and 1b. titen hd® products may be loosened by a maximum one turn and reinstalled with a socket wrench or powered impact wrench to facilitate fixture attachment or realignment.

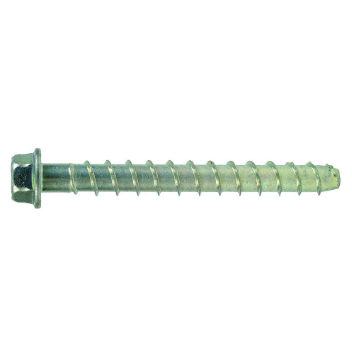

Titen Hd Anchor Steel And Pipes Inc The information presented in this table is to be used in conjunction with the design criteria of aci 318 19 chapter 17, aci 318 14 chapter 17 and aci 318 11 appendix d, except as modified below. Testing shows the titen hd installs in concrete with 50% less torque than competitor anchors removable — ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved vibration and shock resistance excellent minimum edge distance performance. † these models do not meet minimum embedment depth requirements for strength design and require maximum installation torque of 25 ft. – lb. using a torque wrench, driver drill or cordless 1⁄4" impact driver with a maximum permitted torque rating of 100 ft. – lb. The maximum installation torque and maximum impact wrench torque rating requirements for the titen hd® products are detailed in tables 1a and 1b. titen hd® products may be loosened by a maximum one turn and reinstalled with a socket wrench or powered impact wrench to facilitate fixture attachment or realignment.
