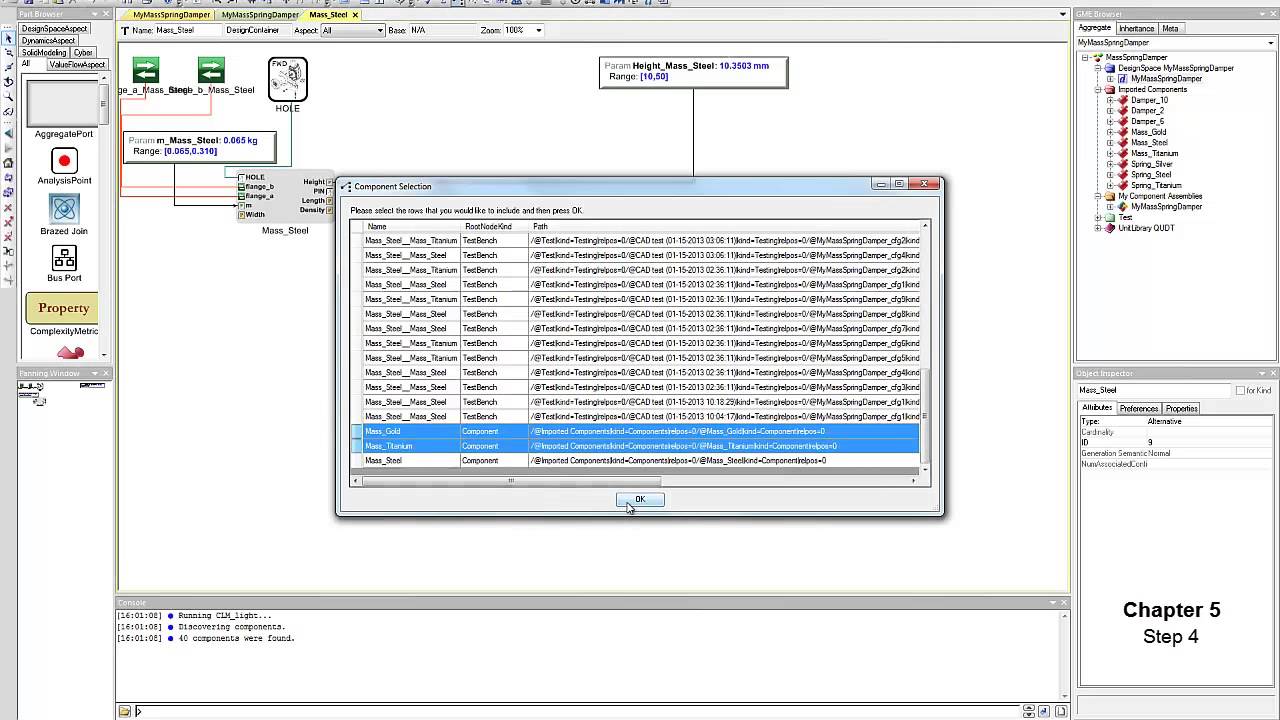

Spring Mass Damper Tutorial 2 Pdf Mass spring damper tutorial chapters 4, 5, 6 & 7.note: change video quality to 720 hd and turn captions on.description:this tutorial will teach you how to. This tutorial worksheet and accompanying applet allow the user to investigate the response of an unforced mass spring damper system subjected to various initial conditions.
Spring Mass Damper System Pdf Damping Mass A tuned mass damper (tmd) is a device consisting of a mass, a spring, and a damper that is attached to a structure in order to reduce the dynamic response of the structure. The mass spring damper differential equation is of a special type; it is a linear second order differential equation. in mathematical terms, linearity means that y, dy dt and d2y dt2 only occur to the power 1 (no y2 or (d2y dt2)3 terms, for example). Suppose a 64 lb weight stretches a spring 6 inches in equilibrium and a dashpot provides a damping force of c lb for each ft sec of velocity. write the equation of motion of the object and determine the value of c for which the motion is critically damped. The following tutorial will set up a mass point and a spring damper, dynamically compute the solution and evaluate the reference solution. we import the exudyn library and the interface for all nodes, objects, markers, loads and sensors:.
Mass Spring Damper System Download Free Pdf Laplace Transform Suppose a 64 lb weight stretches a spring 6 inches in equilibrium and a dashpot provides a damping force of c lb for each ft sec of velocity. write the equation of motion of the object and determine the value of c for which the motion is critically damped. The following tutorial will set up a mass point and a spring damper, dynamically compute the solution and evaluate the reference solution. we import the exudyn library and the interface for all nodes, objects, markers, loads and sensors:. This curriculum module contains interactive matlab® live scripts and simulink® models that explore mass spring damper systems. students learn to create and work with mass spring damper models in guided activities. This curriculum module contains interactive matlab live scripts and simulink models that explore mass spring damper systems. throughout the module, students apply simulink models to study the dynamics of the physical systems. One application of the mass spring damper model is in the use of designing driver seats in vehicles. a well engineered driver seat should be able to limit the amount of vertical displacement and velocity a driver experiences as they are traversing various road conditions like speed bumps. 4.1 vibration analysis of a spring mass damper system. a first approximation of a simple vibrating system would typically result in a spring mass damper system such as the one shown in figure 4.2. for small deflections and velocities, the viscous damping force exerted by the damper can be approximated by f.
Spring Mass Damper Pdf Mechanics Physics This curriculum module contains interactive matlab® live scripts and simulink® models that explore mass spring damper systems. students learn to create and work with mass spring damper models in guided activities. This curriculum module contains interactive matlab live scripts and simulink models that explore mass spring damper systems. throughout the module, students apply simulink models to study the dynamics of the physical systems. One application of the mass spring damper model is in the use of designing driver seats in vehicles. a well engineered driver seat should be able to limit the amount of vertical displacement and velocity a driver experiences as they are traversing various road conditions like speed bumps. 4.1 vibration analysis of a spring mass damper system. a first approximation of a simple vibrating system would typically result in a spring mass damper system such as the one shown in figure 4.2. for small deflections and velocities, the viscous damping force exerted by the damper can be approximated by f.
Spring Mass Damper Notes Pdf One application of the mass spring damper model is in the use of designing driver seats in vehicles. a well engineered driver seat should be able to limit the amount of vertical displacement and velocity a driver experiences as they are traversing various road conditions like speed bumps. 4.1 vibration analysis of a spring mass damper system. a first approximation of a simple vibrating system would typically result in a spring mass damper system such as the one shown in figure 4.2. for small deflections and velocities, the viscous damping force exerted by the damper can be approximated by f.
