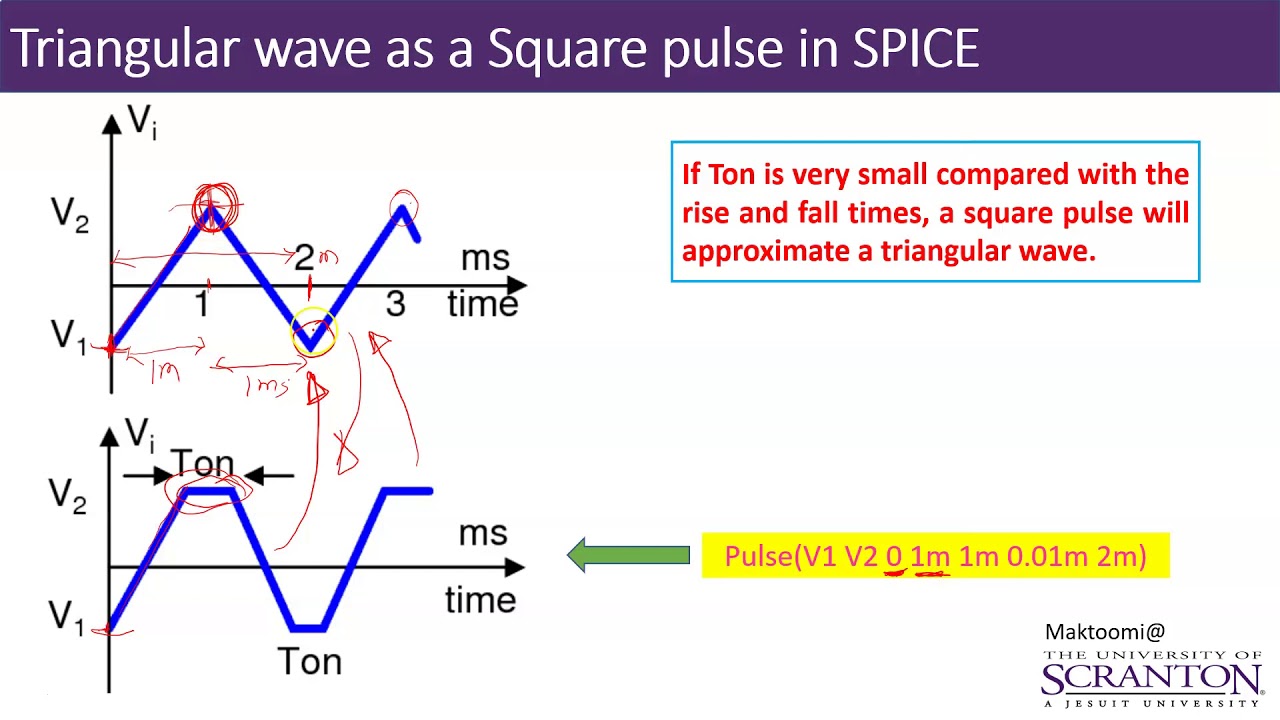

Ltspice How To Use Waveform Viewer Spiceman In this tutorial, you learn how to use the spice periodic pulse to synthesize a triangular waveform. my blog: maktoomi4 more. Hello everyone welcome back to a new tutorial on lts spies and in this tutorial i will talk about how to use spice in general and lts spice in particular to generate a triangular waveform so this is how a periodic triangular waveform looks like and it may start from some initial value say one level is ne 3 volt this is just an example and it.
Ltspice How To Use Waveform Viewer Spiceman A simple approach to creating a triangular and sawtooth waveform is using the pulse fuction using the source component editor shown above. for the triangular waveform you can set the rise and fall time equal to 1 2 of your desired period in your pulse function. To generate a triangular voltage waveform in ltspice, you have several methods to choose from. below, i outline two straightforward approaches: using the pulse function and designing a circuit with an operational amplifier. ### method 1: using the pulse function. To use the waveform viewer with ltspice, you need to run a simulation on the schematic of ltspice. in this article, we will use the following schematic as an example to explain the waveform viewer. Instead, use a pulsed source (voltage or current) with rise times and fall times set to create the desired triangular or sawtooth waveforms. it is not obvious but ltspice supports triangular or sawtooth periodic waveforms, too. of course, one could always resort to a pwl statement, but this gets.
Ltspice How To Use Waveform Viewer Spiceman To use the waveform viewer with ltspice, you need to run a simulation on the schematic of ltspice. in this article, we will use the following schematic as an example to explain the waveform viewer. Instead, use a pulsed source (voltage or current) with rise times and fall times set to create the desired triangular or sawtooth waveforms. it is not obvious but ltspice supports triangular or sawtooth periodic waveforms, too. of course, one could always resort to a pwl statement, but this gets. To generate a triangle waveform with adjustable frequency and amplitude,then output with a dc voltage bias. for auxiliary application ,to inject the generated signal into some certain pin of ics. further more information will be shown in the file. this is practically useful. It should never be used in a frequency response study because ltspice assumes it is in the time domain, and therefore your probe plot will give you inaccurate results. Meanwhile, the triangle wave generator provides a linear signal useful for modulation and audio synthesis. this project not only enhances our understanding of waveform generation techniques but also highlights the effectiveness of ltspice as a simulation tool for electronic circuit design. 🎛️ generate a triangular wave in ltspice (no input signal required!) 🎛️ in this tutorial, we’ll show you how to design a circuit in *ltspice* to generate a *triangular wave* without using any.
Ltspice How To Use Waveform Viewer Spiceman To generate a triangle waveform with adjustable frequency and amplitude,then output with a dc voltage bias. for auxiliary application ,to inject the generated signal into some certain pin of ics. further more information will be shown in the file. this is practically useful. It should never be used in a frequency response study because ltspice assumes it is in the time domain, and therefore your probe plot will give you inaccurate results. Meanwhile, the triangle wave generator provides a linear signal useful for modulation and audio synthesis. this project not only enhances our understanding of waveform generation techniques but also highlights the effectiveness of ltspice as a simulation tool for electronic circuit design. 🎛️ generate a triangular wave in ltspice (no input signal required!) 🎛️ in this tutorial, we’ll show you how to design a circuit in *ltspice* to generate a *triangular wave* without using any.
