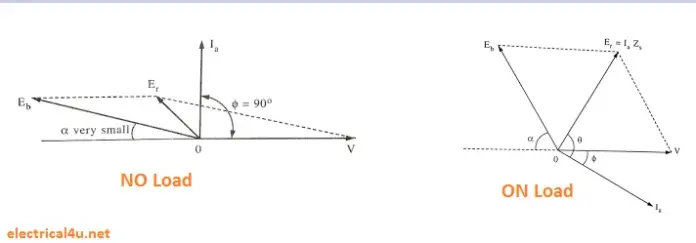

What Is Load Angle Significance Of Load Angle Electrical4u Load angle is nothing but an angle different between stator axis and rotor pole axis of the synchronous motor. for ideal motor, the load angle is zero since the rotor poles aligned with stator poles, but in practice, this is not possible. Learn about all three types of electrical switchgear systems – low voltage switchgear, medium voltage switchgear and high voltage switchgear – and the individual components of an electrical switchgear system.
Beam Clamp Load Angle The Best Picture Of Beam As discussed earlier in this post, load angle is the angle between the field flux and the resultant air gap flux. this means, as the mechanical power input to the synchronous generator is increased through prime mover, the field poles will be dragged ahead of the stator pole or flux. A: the load angle affects the power factor of a circuit because it determines how much of the current is used to generate useful work. when the load angle is small, the power factor is high. This application report provides steps to tune the lead angle to accurately estimate the bemf constant and optimize efficiency by identifying the minimum current to speed ratio. Torque angle is used for individual synchronous machine. power or load angle is used if one or more synchronous machines connected to infinite bus bars.
What Is Load Angle Electrical4u This application report provides steps to tune the lead angle to accurately estimate the bemf constant and optimize efficiency by identifying the minimum current to speed ratio. Torque angle is used for individual synchronous machine. power or load angle is used if one or more synchronous machines connected to infinite bus bars. Almost the entire field of electrical technology has been covered in this website. the website covers all the syllabus of most of the indian universities, degree, diploma and amie section b (elect.) courses, pertaining to this subject. The article explains the per unit (pu) system used in electrical power systems analysis, focusing on how it simplifies calculations by expressing electrical quantities as ratios to base values. Load angle is defined as the angle δ between the generator emf voltage vector (e) and the generator terminal voltage vector (v) in synchronous machines. it oscillates when the load changes and this behavior is referred to as machine hunting. Example inclined cable with uniform load, si units a cable with span 30 m, length a = 7.2 m, length b = 22.8 m, sag h1= 1 m and sag h2 = 10 m has a uniform load of 4 kn m.
