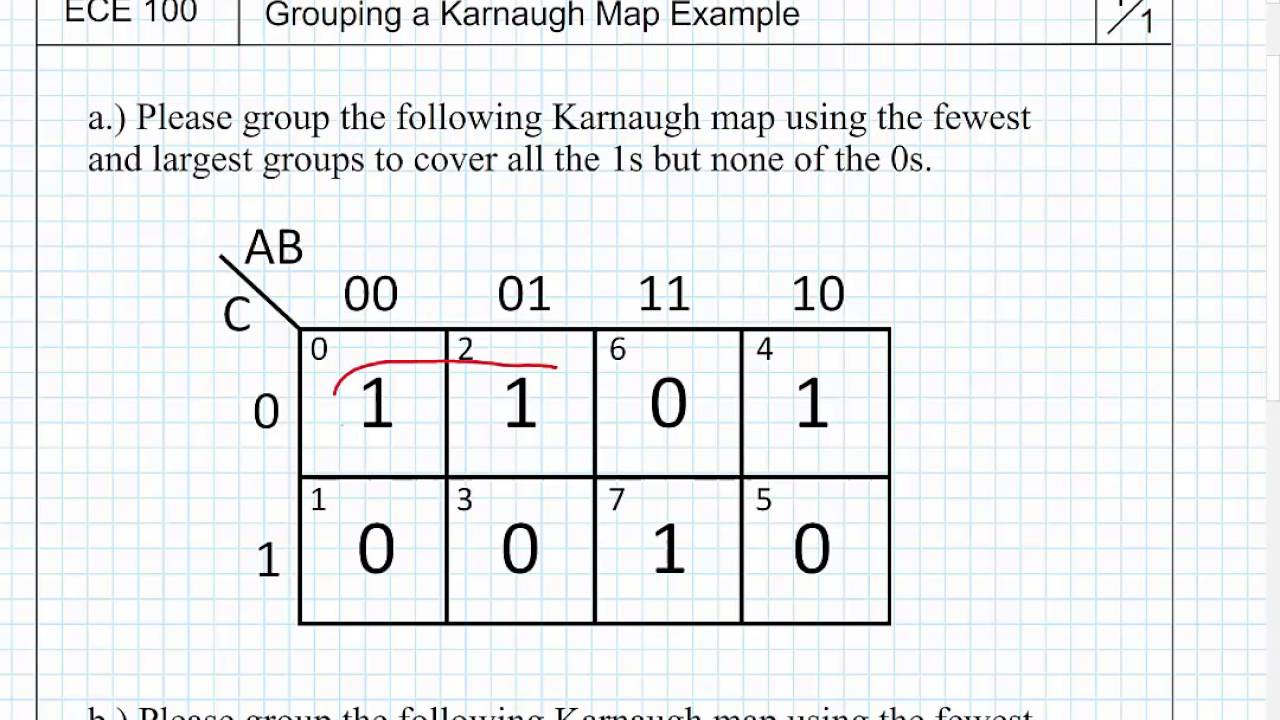

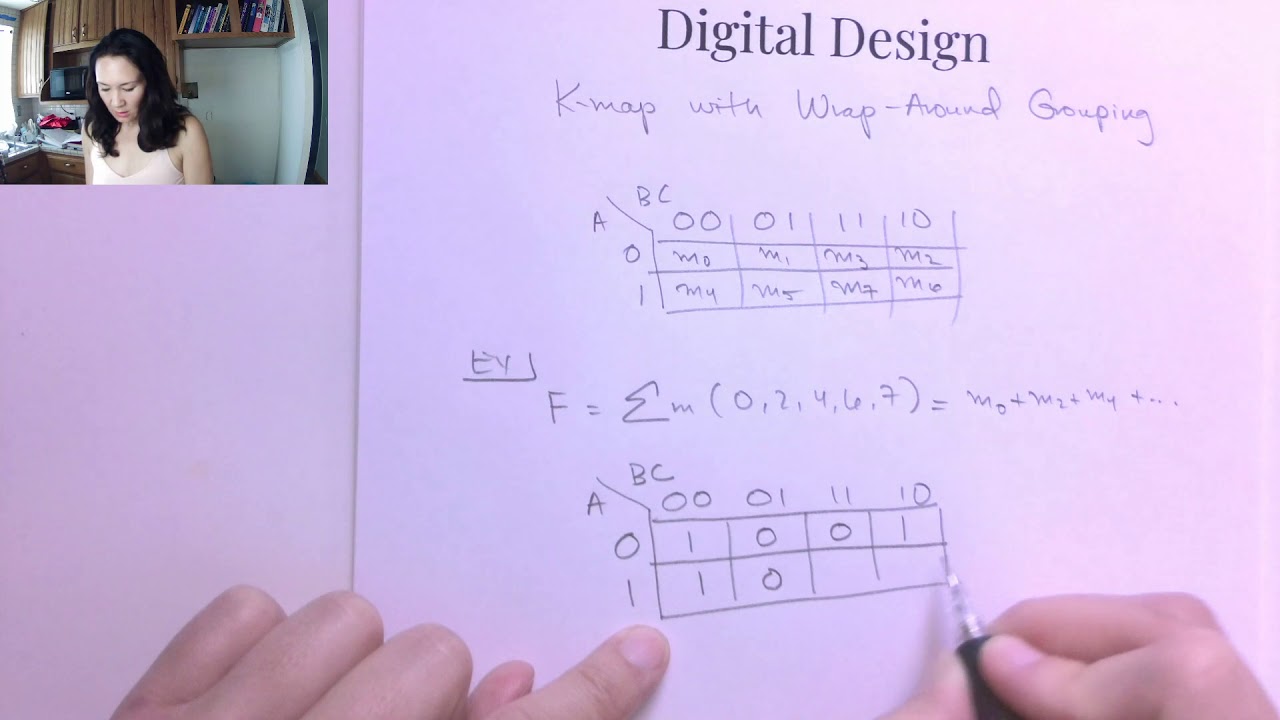

Karnaugh Maps Rules Of Simplification Grouping Ones Pdf We can minimize boolean expressions of 3, 4 variables very easily using k map without using any boolean algebra theorems. it is a tool which is used in digital logic to simplify boolean expression. it helps to simplify logic into simpler form by organizing grid from truth table values. Groups may wrap around the table. the leftmost cell in a row may be grouped with the rightmost cell and the top cell in a column may be grouped with the bottom cell.
Karnaugh Map Grouping The k map organizes the truth table into a grid like structure, grouping together combinations of input variables that differ by only one bit, which helps in identifying common factors. So what is a karnaugh map? a karnaugh map provides a pictorial method of grouping together expressions with common factors and therefore eliminating unwanted variables. the karnaugh map can also be described as a special arrangement of a truth table. Learn all about karnaugh maps for your cie a level computer science exam. this revision note includes how to simplify boolean algebra expressions using kmaps. How to construct karnaugh maps and use them for circuit minimisation. step by step examples.
Karnaugh Map Grouping Learn all about karnaugh maps for your cie a level computer science exam. this revision note includes how to simplify boolean algebra expressions using kmaps. How to construct karnaugh maps and use them for circuit minimisation. step by step examples. 4 variable karnaugh map the 4 variable karnaugh map is an array of 16 cells, which is calculated with 2n , where n is the number of inputs, 24 = 16 possible combinations. Karnaugh maps rules of simplification the karnaugh map uses the following rules for the simplification of expressions by grouping together adjacent cells containing ones groups may not include any cell containing a zero groups may be horizontal or vertical, but not diagonal. groups must contain 1, 2, 4, 8, or in general 2n cells. Grouping the 1s, you can group 1s on the karnaugh map according to the following rules by enclosing those adjacent cells containing 1s. the goal is to maximize the size of the groups and to minimize the number of groups. Learn the fundamentals of karnaugh maps, their purpose in digital logic design, and why they're essential for boolean expression minimization. start with simple 2 variable karnaugh maps to understand the basic grouping concepts and minimization techniques.

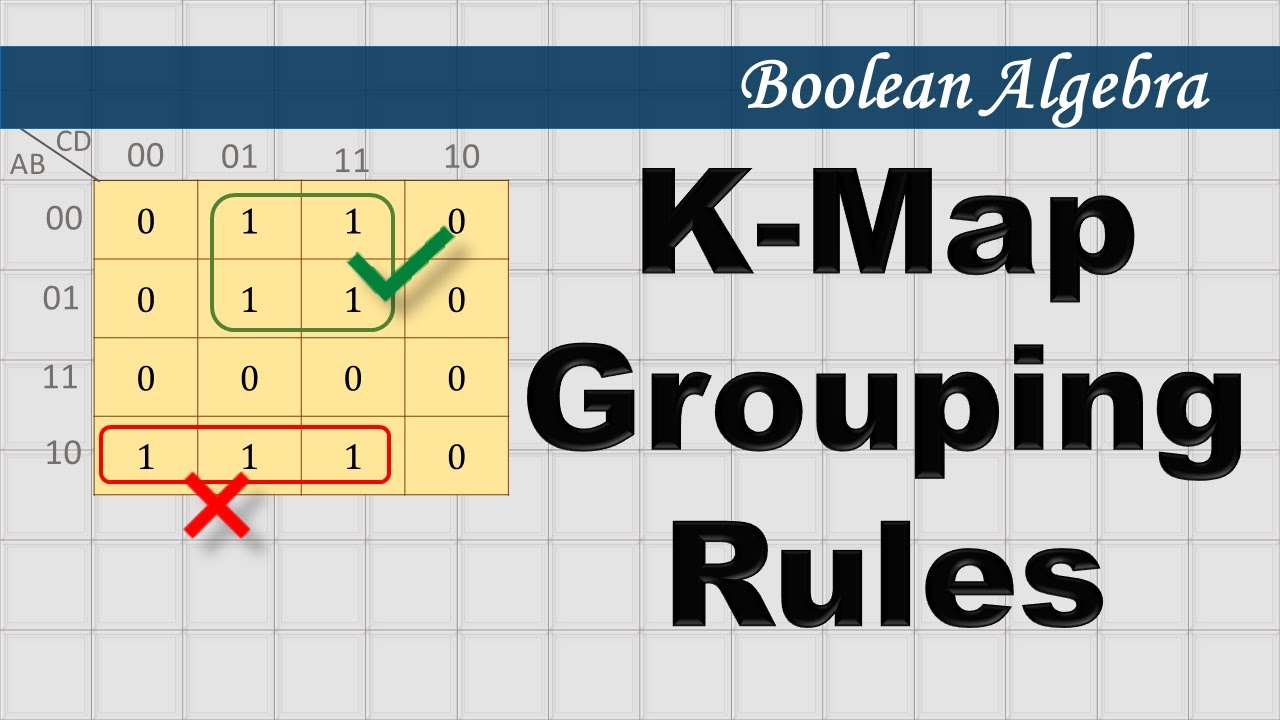

Karnaugh Map Grouping 4 variable karnaugh map the 4 variable karnaugh map is an array of 16 cells, which is calculated with 2n , where n is the number of inputs, 24 = 16 possible combinations. Karnaugh maps rules of simplification the karnaugh map uses the following rules for the simplification of expressions by grouping together adjacent cells containing ones groups may not include any cell containing a zero groups may be horizontal or vertical, but not diagonal. groups must contain 1, 2, 4, 8, or in general 2n cells. Grouping the 1s, you can group 1s on the karnaugh map according to the following rules by enclosing those adjacent cells containing 1s. the goal is to maximize the size of the groups and to minimize the number of groups. Learn the fundamentals of karnaugh maps, their purpose in digital logic design, and why they're essential for boolean expression minimization. start with simple 2 variable karnaugh maps to understand the basic grouping concepts and minimization techniques.

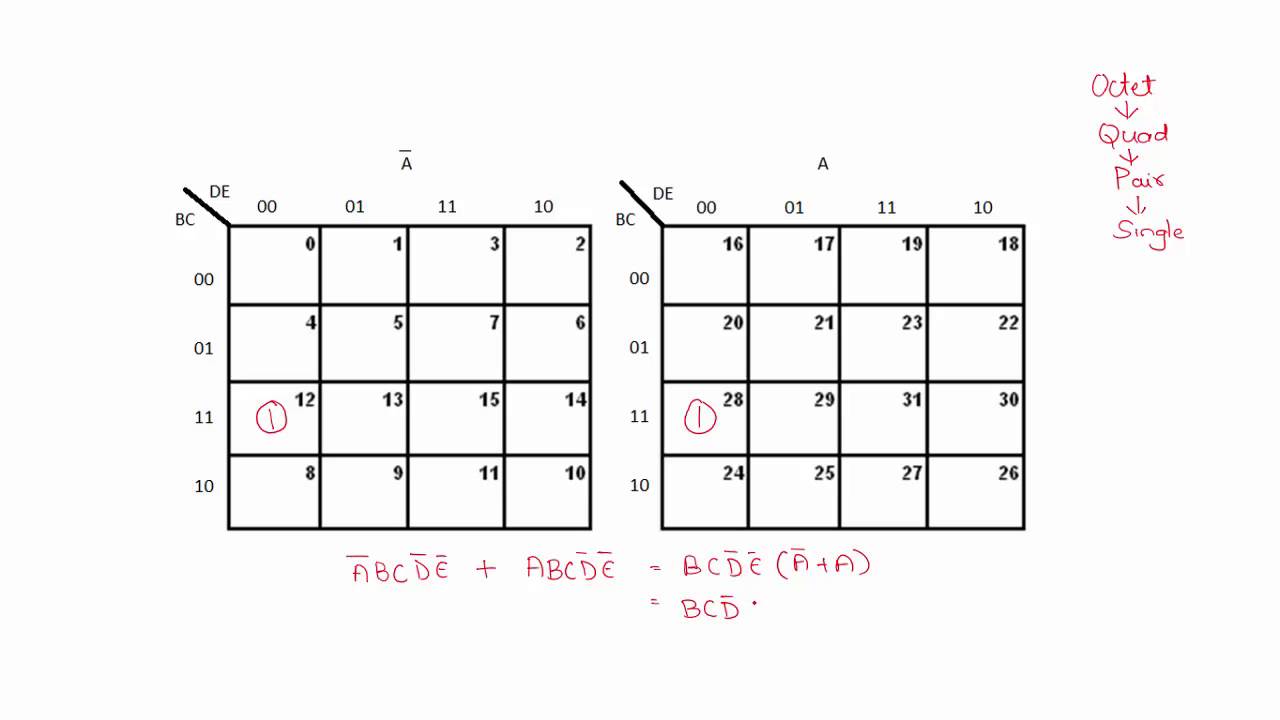

Karnaugh Map Grouping Grouping the 1s, you can group 1s on the karnaugh map according to the following rules by enclosing those adjacent cells containing 1s. the goal is to maximize the size of the groups and to minimize the number of groups. Learn the fundamentals of karnaugh maps, their purpose in digital logic design, and why they're essential for boolean expression minimization. start with simple 2 variable karnaugh maps to understand the basic grouping concepts and minimization techniques.
