Karnaugh Map For 3 Variables Electrical Engineering Stack Exchange This web based karnaugh's map calculator tool is featured to generate the complete work with steps for any corresponding input values of variables a, b & c. this detailed workout may help users to learn how to solve kmap for 3 variables. This k map solver simplifies 3 variable expressions through 5 intuitive inputs: truth table, boolean expression, minterm maxterm numbers, and interactive k map editing.
Karnaugh Map For 3 Variables Electrical Engineering Stack Exchange An alternative to the truth table to determine and simplify the logic function for an application is karnaugh map (k map), named after its originator karnaugh. karnaugh map abbreviates to k map offers a simpler solution to find the logic function for applications with two, three, and four inputs. We can minimize boolean expressions of 3, 4 variables very easily using k map without using any boolean algebra theorems. it is a tool which is used in digital logic to simplify boolean expression. it helps to simplify logic into simpler form by organizing grid from truth table values. Solve 3 variable karnaugh maps instantly! perfect for students with homework deadlines. get step by step solutions with edge wrapping and grouping. most recommended solver for college assignments. Online k map (karnaugh map) solver for 2, 3, 4 and 5 variables. switch the values between 0, 1 and x (don't care) and see the result simultaneously.

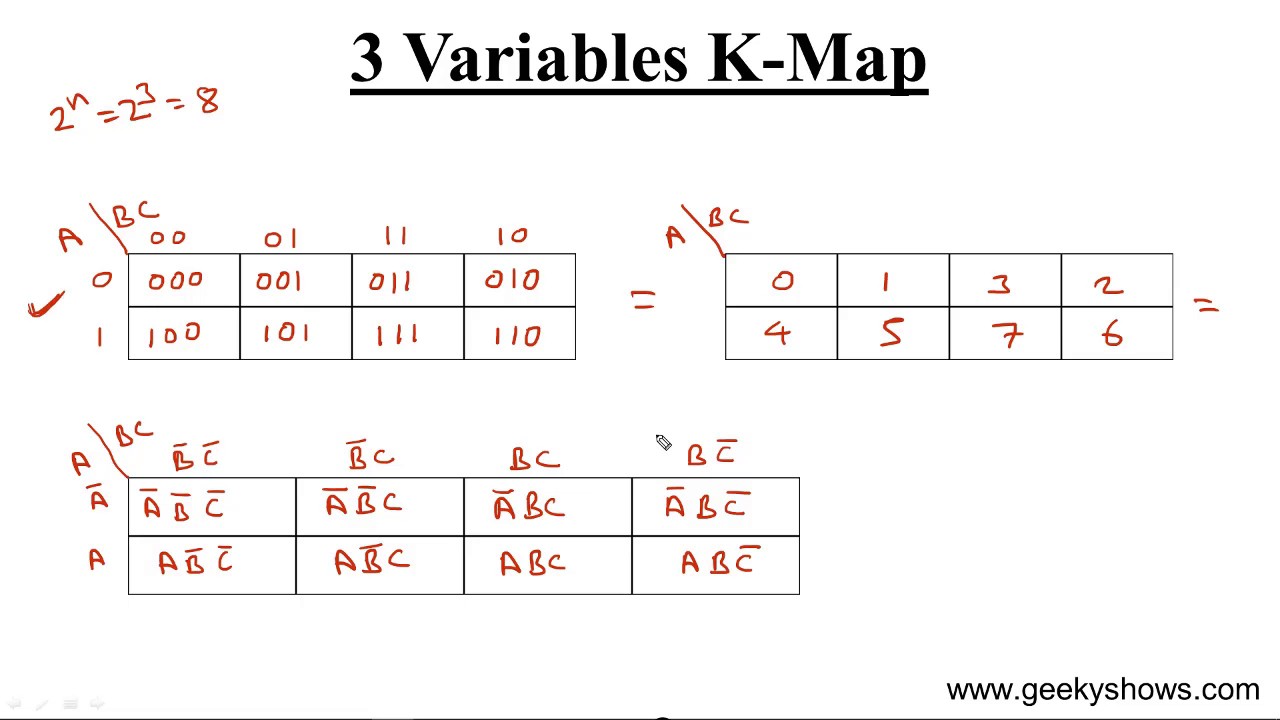

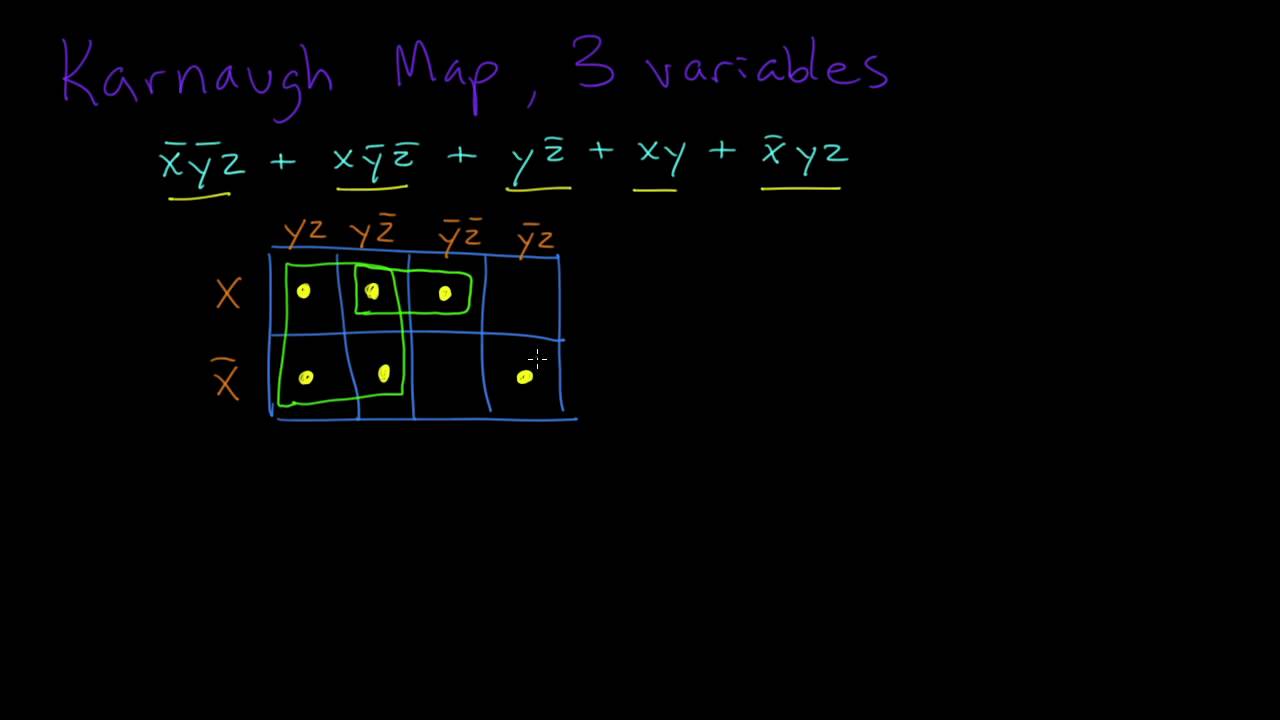

3 Variable Karnaugh Map Solve 3 variable karnaugh maps instantly! perfect for students with homework deadlines. get step by step solutions with edge wrapping and grouping. most recommended solver for college assignments. Online k map (karnaugh map) solver for 2, 3, 4 and 5 variables. switch the values between 0, 1 and x (don't care) and see the result simultaneously. Here, we will discuss the 3 variable k map and its application to simplify a complex boolean function. we can use the k map to simplify a boolean function of three variables. Karnaugh map called also k map for short the karnaugh map is a diagram made up of squares it is a reorganized version of the truth table each square in the karnaugh map represents a minterm adjacent squares differ in the value of one variable. Consider the following truth table for three variables – a, b, and c. figure 1 – truth table and 3 variable k map. let us understand the characteristics of the 3 variable k map because it is very important to understand and use this map for boolean function minimization. What is karnaugh map (k map)? karnaugh map or k map is a map of a function used in a technique used for minimization or simplification of a boolean expression. it results in less number of logic gates and inputs to be used during the fabrication.
