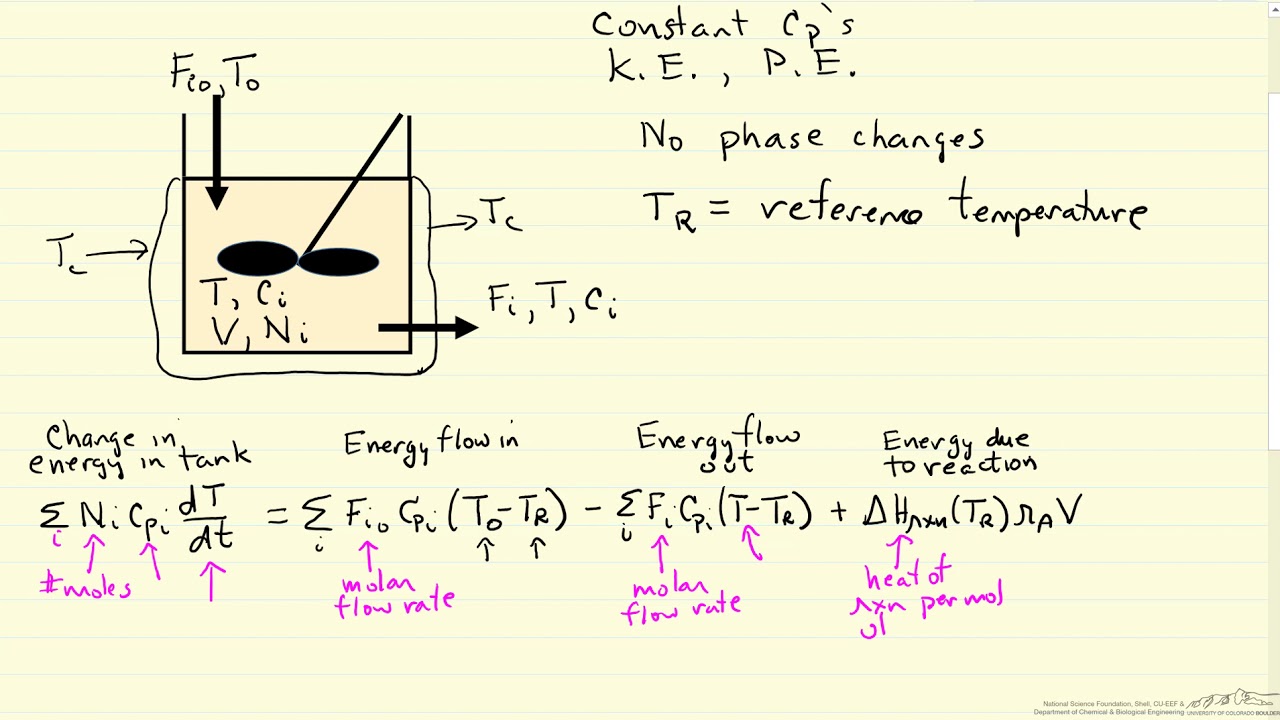

Energy Balances In Stirred Tank Reactors Simulation Learncheme Review important equations for energy balances in stirred tank reactors. use the interactive simulation to further understand the energy balances in a non isothermal cstr. Continuous stirred tank reactors (cstr) are one of the two most common types of reactors (the other being tubular or plug flow reactors) used in chemical engineering processes.
Energy Balances In Stirred Tank Reactors Summary Learncheme Approach to steady state in a continuous stirred tank reactor (cstr). figure 4. two tanks in series. the output of the first tank is the input of the second tank. Æ many cstrs in series looks like a plug flow reactor. The continuous stirred tank reactor (cstr) model simulates a well mixed reactor with continuous feed and discharge streams. the model incorporates arrhenius reaction kinetics, material balance, energy balance, and heat transfer with jacket cooling. Organized by textbook: learncheme explains terms in the unsteady state energy balance for stirred tank reactors and shows the energy balances for batch, semibatch, and. In these reactors, reactants are continuously flowed into the reactor, where they undergo a chemical reaction. simultaneously, an exit stream is extracted from the reactor at the same flow rate as the inlet stream to maintain a constant volume inside the reactor.
Continuous Stirred Tank Continuous Stirred Tank Reactors Lmorwy Organized by textbook: learncheme explains terms in the unsteady state energy balance for stirred tank reactors and shows the energy balances for batch, semibatch, and. In these reactors, reactants are continuously flowed into the reactor, where they undergo a chemical reaction. simultaneously, an exit stream is extracted from the reactor at the same flow rate as the inlet stream to maintain a constant volume inside the reactor. The document summarizes a lecture on analyzing non isothermal chemical reactors using energy balances. it discusses how energy balances can be written in terms of enthalpy and temperature for batch and continuous stirred tank reactors (cstrs). Cstr reactors (continuous stirred tank reactor) are a very widespread class of reactors in chemical or bio chemical industries. the reactor has an inlet, an outlet and is perfectly agitated. Given r a as a function of conversion, r a = f (x), one can size any type of reactor. the volume of a cstr can be represented as the shaded areas in the levenspiel plot shown below:. Cstrs compared with batch reactors and pfrs the choice of which type of reactor to use is affected by several factors, including cost, controllability and safety.
Continuous Stirred Tank Reactors Cstrs Atommek The document summarizes a lecture on analyzing non isothermal chemical reactors using energy balances. it discusses how energy balances can be written in terms of enthalpy and temperature for batch and continuous stirred tank reactors (cstrs). Cstr reactors (continuous stirred tank reactor) are a very widespread class of reactors in chemical or bio chemical industries. the reactor has an inlet, an outlet and is perfectly agitated. Given r a as a function of conversion, r a = f (x), one can size any type of reactor. the volume of a cstr can be represented as the shaded areas in the levenspiel plot shown below:. Cstrs compared with batch reactors and pfrs the choice of which type of reactor to use is affected by several factors, including cost, controllability and safety.
