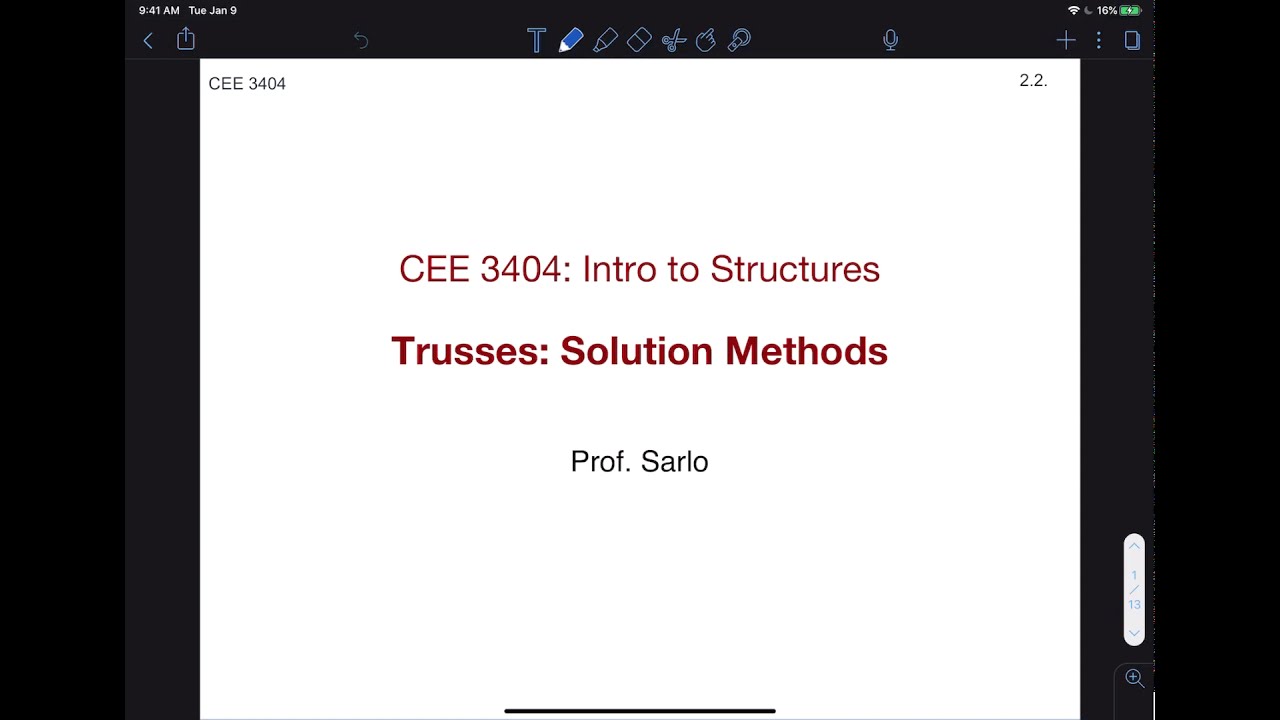

Solution To Trusses Pdf Truss Force Intro to structures 2.2 solution methods for trusses vibes lab 1.51k subscribers subscribe. The document provides solutions to truss problems using the method of joints, detailing the calculations for forces in various truss members. key results include forces such as f ab = 5.56 kn tension, f ae = 75.56 kn tension, and f cd = 88.87 kn compression.
Solution 16 Analysis Of Trusses By Matrix Methods Studypool Analyse trusses by method of joints and method of sections. zero force members, pratt vs howe trusses and step by step gate ce solved numerical problems. There are several methods of truss analysis, but the two most common are the method of joint and the method of section (or moment). Learn truss analysis and truss simulation from the ground up. understand types, methods, and how to simulate trusses step by step in abaqus. 1. determine the support reaction. 2. since only two independent equations of equilibrium can be written for a plane concurrent system, start the analysis with a joint acted on by only two members. 3. continue by considering the next joint at which only two unknown forces act and so on successively until the unknown forces in each member has been found.
Solution Trusses 1 Studypool Learn truss analysis and truss simulation from the ground up. understand types, methods, and how to simulate trusses step by step in abaqus. 1. determine the support reaction. 2. since only two independent equations of equilibrium can be written for a plane concurrent system, start the analysis with a joint acted on by only two members. 3. continue by considering the next joint at which only two unknown forces act and so on successively until the unknown forces in each member has been found. The document is a set of lecture notes by prem kumar soni on the topic of trusses, covering definitions, types, and analysis methods including the method of joints and method of sections. In this post, i will provide a detailed explanation of trusses and the methods i use to analyze them. a truss is a structural framework composed of straight, slender members connected at their ends, forming a configuration that efficiently supports loads. Method of joints vs method of sections use method of joints when you need to know element forces throughout the structure. two equations of equilibrium per joint. In module 2, force method of analysis is applied to solve indeterminate beams, trusses and frames. in modules 3 and 4, displacement based methods are discussed for the analysis of indeterminate structures.
Solution Structural Theory 2 Solved Problems In Indeterminate Beams The document is a set of lecture notes by prem kumar soni on the topic of trusses, covering definitions, types, and analysis methods including the method of joints and method of sections. In this post, i will provide a detailed explanation of trusses and the methods i use to analyze them. a truss is a structural framework composed of straight, slender members connected at their ends, forming a configuration that efficiently supports loads. Method of joints vs method of sections use method of joints when you need to know element forces throughout the structure. two equations of equilibrium per joint. In module 2, force method of analysis is applied to solve indeterminate beams, trusses and frames. in modules 3 and 4, displacement based methods are discussed for the analysis of indeterminate structures.
