Intersect Command In Solidworks Grabcad Tutorials

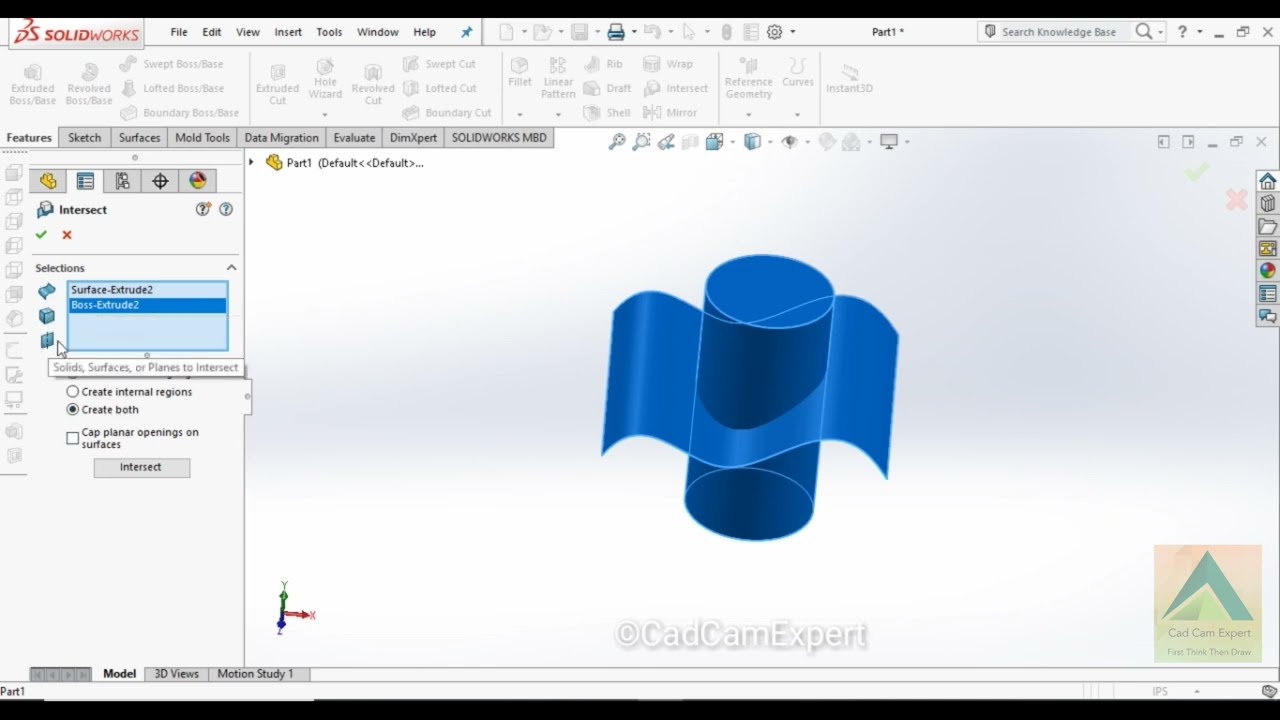

Intersect Command In Solidworks Grabcad Tutorials Here you can find how to create an intersecting part for an already existing part. This tutorial shows how to use the intersect command in solidworks. how to convert a part with a solid and a surface body into a single solid body. then press the 'intersect'button to populate all the intersecting regions.

Solidworks Intersect Split Grabcad Tutorials This tutorial shows how to use the intersect command in solidworks how to convert a part with a solid and a surface body into a single solid body. You can intersect solids, surfaces, and planes to modify existing geometry, or to create new geometry with the intersect tool. for example, you can add open surface geometry to a solid, remove material from a model, or you can create geometry from an enclosed cavity. Was this tutorial useful? the computer aided design ("cad") files and all associated content posted to this website are created, uploaded, managed and owned by third party users. Learn the solidworks intersect command in this advanced tutorial designed for mechanical engineers, cad designers, and students.

Solidworks Intersect Split Grabcad Tutorials Was this tutorial useful? the computer aided design ("cad") files and all associated content posted to this website are created, uploaded, managed and owned by third party users. Learn the solidworks intersect command in this advanced tutorial designed for mechanical engineers, cad designers, and students. Now you can combine surfacing and solid modeling techniques using one powerful and convenient tool that was introduced into solidworks in 2013. the intersect tool can be used to modify existing geometry or create new geometry based on surfaces, solids, and planes that intersect each other. I’ve only outlined one use for the intersect tool, but there are many other ways to use it, such as with mold and cavity making, or with surfacing. i encourage you to experiment with the intersect tool and find out what works best for you. I have an assembly file in solidworks 2019 with two components, the green, and yellow rectangular prisms. i'm having trouble understanding the instructions i found online about making an intersection with these two components. In short, use the combine command wherever possible to maintain short rebuild times. intersect is there for you when you have those more challenging problems like creating internal volume or using reference geometry surfaces to split or trim a part.
