China Twist Off Type Configurations Structural High Tension Control This method usually defaults to "twist off" bolts, sometimes called "tension control" or tc bolts. these assemblies’ function by calibrating the torque needed to twist off a splined extension manufactured into the bolt shank. Learn how the twist off tension control (tc) bolt method works, including shear wrench operation, piv steps, and installation best practices.
Twist Off Type Installation Procedure 5 Download Scientific Diagram Tcb installation is the lowest cost method for properly installing high strength friction grip (hsfg) or preloaded bolts. for full instructions please download our installation manual. Twist off type tension control bolts can be used in snug tightened joints, even if the splined ends are severed during installation. In this article, we have explored the bolt tightening methods such as sung tight, turn of the nut, dti tightening, calibrated wrench and twist off bolts (astm f1852 and f2280) installation in steel structures. In order to ensure that the preload in fully installed bolting assemblies meets the specified minimum preload requirement, the installation process consists of two tightening stages.
Twist Off Type Installation Procedure 5 Download Scientific Diagram In this article, we have explored the bolt tightening methods such as sung tight, turn of the nut, dti tightening, calibrated wrench and twist off bolts (astm f1852 and f2280) installation in steel structures. In order to ensure that the preload in fully installed bolting assemblies meets the specified minimum preload requirement, the installation process consists of two tightening stages. This guide provides an overview of the benefits and applications of tension control bolts, along with step by step instructions for the tc bolts installation process. Twist off bolts measure torque which can never accomplish more than measuring the friction generated in the threads and on the nut face. this varies depending on many factors including, but not limited to lubricity of the threads and nut face, and thread tolerances and general thread condition. After the spline of the bolt has sheared, the bolt tension should be equal to or greater than those values as required by the specification (see table 1). since the quality assurance and integrity of the bolted connection is determined by the bolt itself, visual inspection of the bolt spline removal is sufficient. en 1090 2. Subscribed 430 90k views 8 years ago this video is about installation methods twist off type bolts more.

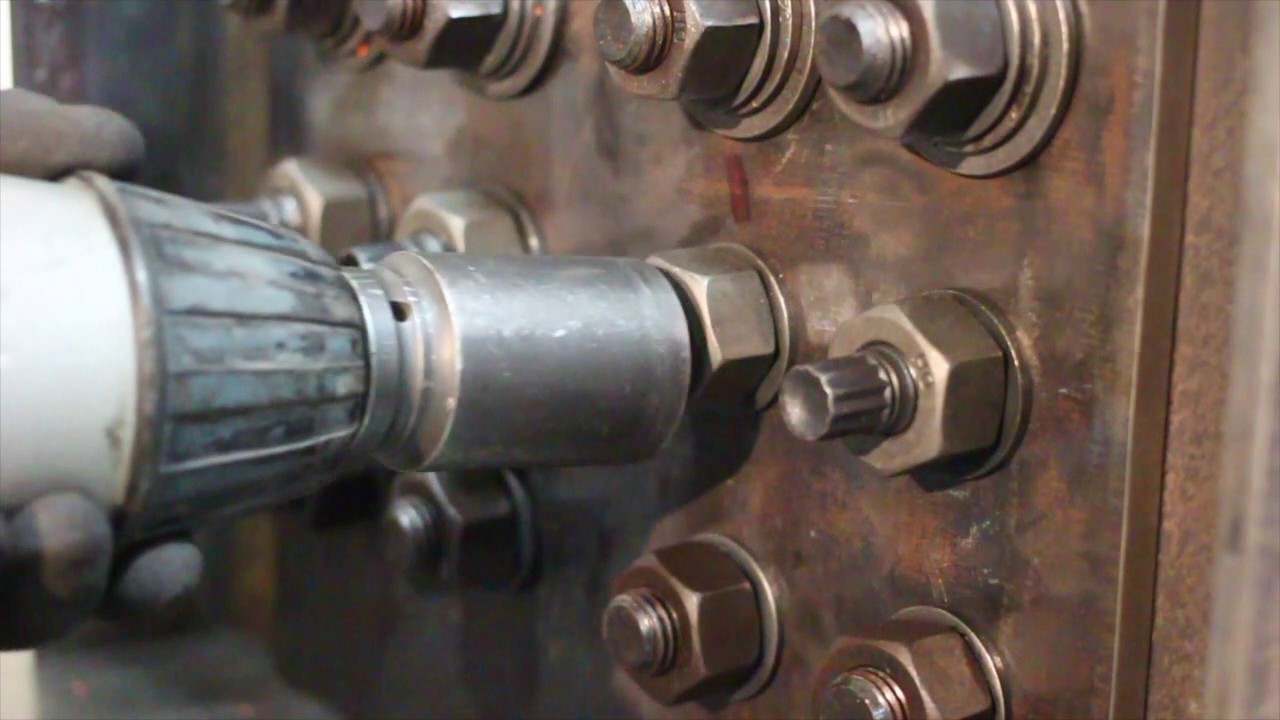

Twist Off Structural Bolts 3d Models Page 1 Stlfinder This guide provides an overview of the benefits and applications of tension control bolts, along with step by step instructions for the tc bolts installation process. Twist off bolts measure torque which can never accomplish more than measuring the friction generated in the threads and on the nut face. this varies depending on many factors including, but not limited to lubricity of the threads and nut face, and thread tolerances and general thread condition. After the spline of the bolt has sheared, the bolt tension should be equal to or greater than those values as required by the specification (see table 1). since the quality assurance and integrity of the bolted connection is determined by the bolt itself, visual inspection of the bolt spline removal is sufficient. en 1090 2. Subscribed 430 90k views 8 years ago this video is about installation methods twist off type bolts more.
