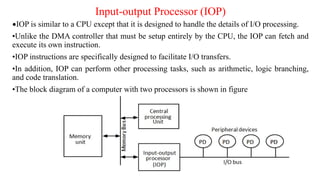

Input Output Processor Iop In Computer Organisationac Pptx Input output processor (iop) in computer organisationac.pptx download as a pptx, pdf or view online for free. The input output processor (iop) is designed to manage i o processing independently from the cpu, allowing it to fetch and execute its own instructions for efficient data transfer between peripheral devices and memory.

Input Output Processor Iop In Computer Organisationac Pptx Io interface provides a method for transferring information between internal storage and external i o devices. i o devices can not directly communicate with the cpu due to various differences between them. i o bus is attached to all peripherals. interface monitors the address on address bus. Explore input output organization in computer architecture: peripherals, interfaces, data transfer, interrupts, dma, i o processors, and serial communication. Intack enables tristate bus buffer to load vad generated by the priority logic interrupt register: each bit is associated with an interrupt request from different interrupt source different priority level each bit can be cleared by a program instruction mask register: mask register is associated with interrupt register each bit can be set or cleared by an instruction priority interrupt mask register intack from cpu priority encoder i 0 i 1 i 2 i 3 0 1 2 3 y x ist ien 0 1 2 3 0 0 0 0 0 0 disk printer reader keyboard interrupt register enable interrupt to cpu vad to cpu bus buffer interrupt priority encoder determines the highest priority interrupt when more than one interrupts take place priority encoder truth table 1 d d d 0 1 d d 0 0 1 d 0 0 0 1 0 0 0 0 i0 i1 i2 i3 0 0 1 0 1 1 1 0 1 1 1 1 d d 0 x y ist x = i0' i1' y = i0' i1 i0’ i2’ (ist) = i0 i1 i2 i3 inputs. Computer organization and architecture input output organization (module 3) input output organization. module3. introduction. oneofthebasicfeaturesofacomputerisitsabilitytoexchange. datawithotherdevices. enablesahumanoperatortouseakeyboard andadisplayscreento processtextandgraphics.

Input Output Processor Iop In Computer Organisationac Pptx Intack enables tristate bus buffer to load vad generated by the priority logic interrupt register: each bit is associated with an interrupt request from different interrupt source different priority level each bit can be cleared by a program instruction mask register: mask register is associated with interrupt register each bit can be set or cleared by an instruction priority interrupt mask register intack from cpu priority encoder i 0 i 1 i 2 i 3 0 1 2 3 y x ist ien 0 1 2 3 0 0 0 0 0 0 disk printer reader keyboard interrupt register enable interrupt to cpu vad to cpu bus buffer interrupt priority encoder determines the highest priority interrupt when more than one interrupts take place priority encoder truth table 1 d d d 0 1 d d 0 0 1 d 0 0 0 1 0 0 0 0 i0 i1 i2 i3 0 0 1 0 1 1 1 0 1 1 1 1 d d 0 x y ist x = i0' i1' y = i0' i1 i0’ i2’ (ist) = i0 i1 i2 i3 inputs. Computer organization and architecture input output organization (module 3) input output organization. module3. introduction. oneofthebasicfeaturesofacomputerisitsabilitytoexchange. datawithotherdevices. enablesahumanoperatortouseakeyboard andadisplayscreento processtextandgraphics. To communicate with i o, the processor must communicate with the memory unit. like the i o bus, the memory bus contains data, address and read write controllines. Learn about peripheral devices, i o organization, data transfer modes, priority interrupts, and more in a computer system setup. explore the functionalities of keyboards, displays, printers, and other peripherals in the i o subsystem. The input output processor is a specialized processor which loads and stores data in memory along with the execution of i o instructions. it serves as an interface between the system and devices. The i o device simply puts the information in a status register , and the processor must come and get the information. the processor is totally in control and does all the work.

Input Output Processor Iop In Computer Organisationac Pptx To communicate with i o, the processor must communicate with the memory unit. like the i o bus, the memory bus contains data, address and read write controllines. Learn about peripheral devices, i o organization, data transfer modes, priority interrupts, and more in a computer system setup. explore the functionalities of keyboards, displays, printers, and other peripherals in the i o subsystem. The input output processor is a specialized processor which loads and stores data in memory along with the execution of i o instructions. it serves as an interface between the system and devices. The i o device simply puts the information in a status register , and the processor must come and get the information. the processor is totally in control and does all the work.

Input Output Processor Iop In Computer Organisationac Pptx The input output processor is a specialized processor which loads and stores data in memory along with the execution of i o instructions. it serves as an interface between the system and devices. The i o device simply puts the information in a status register , and the processor must come and get the information. the processor is totally in control and does all the work.
