Igneous Rock Classification Chart Engineering Geology Facebook The document provides a classification of rocks based on their formation: igneous, sedimentary, and metamorphic. it details the characteristics of intrusive and extrusive igneous rocks, as well as clastic, chemical, and biologic sedimentary rocks. For igneous rock, the composition is divided into four groups: felsic, intermediate, mafic, and ultramafic. these groups refer to differing amounts of silica, iron, and magnesium found in the minerals that make up the rocks.

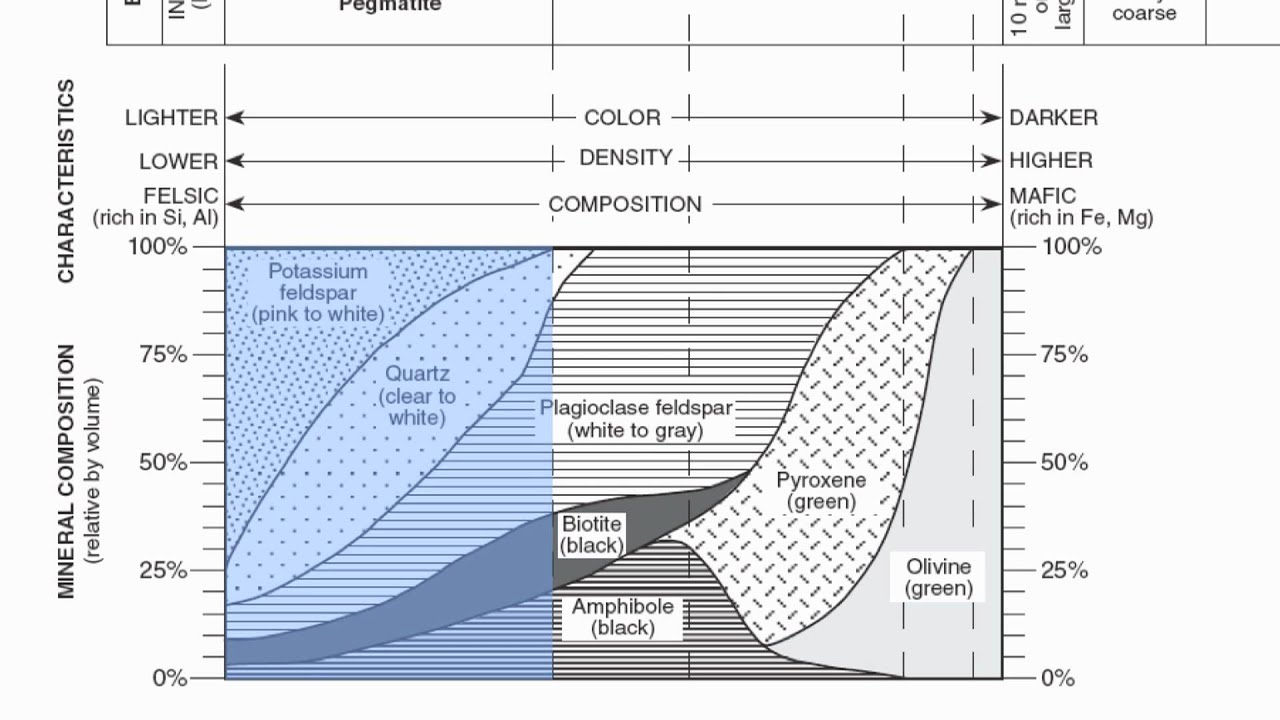

Reading Igneous Rock Chart Diagram Quizlet Learn how to identify and classify igneous rocks using flowcharts, charts and diagrams. find out the mineral composition, colour and texture of different types of igneous rocks. The upper and lower limits of the ranges are intentionally vague because these limits depend on a number of different factors, such as the pressure, the amount of water present, and the overall composition of the rock. Figure b: a simplified classification diagram for igneous rocks based on their mineral compositions. note that glassy igneous rocks pumice and obsidian are not included on this diagram. An igneous rock classification chart is a systematic tool used by geologists to identify and categorize rocks formed from cooling magma or lava based on two primary criteria: mineral composition and crystalline texture. by analyzing the color index (mafic vs. felsic) and the size of the mineral grains (phaneritic vs. aphanitic), you can accurately name any igneous specimen and understand its.
Image Result For Rock Chart Igneous Rock Igneous Rock Figure b: a simplified classification diagram for igneous rocks based on their mineral compositions. note that glassy igneous rocks pumice and obsidian are not included on this diagram. An igneous rock classification chart is a systematic tool used by geologists to identify and categorize rocks formed from cooling magma or lava based on two primary criteria: mineral composition and crystalline texture. by analyzing the color index (mafic vs. felsic) and the size of the mineral grains (phaneritic vs. aphanitic), you can accurately name any igneous specimen and understand its. This chart provides a systematic way to classify and identify igneous rocks, making it a valuable tool for geologists and petrologists studying the origin and composition of these rocks. A chart to help identify igneous rocks based on composition, color, main mineral components, and texture. includes examples of felsic, intermediate, mafic, and ultramafic rocks, as well as their variations and textures. The table at the top of the page is read vertically, from zero% at the bottom to 100% at the top (scale on left and right sides). for example, the composition of the rock on the farthest right side of the chart is (bottom up) about 92% olivine, and the remaining composition to the top about 8% pyroxene. Need help with the igneous rock chart? the following step by step example is a guide for how to identify your igneous rock samples and how to use the identification chart in figure 6:.
