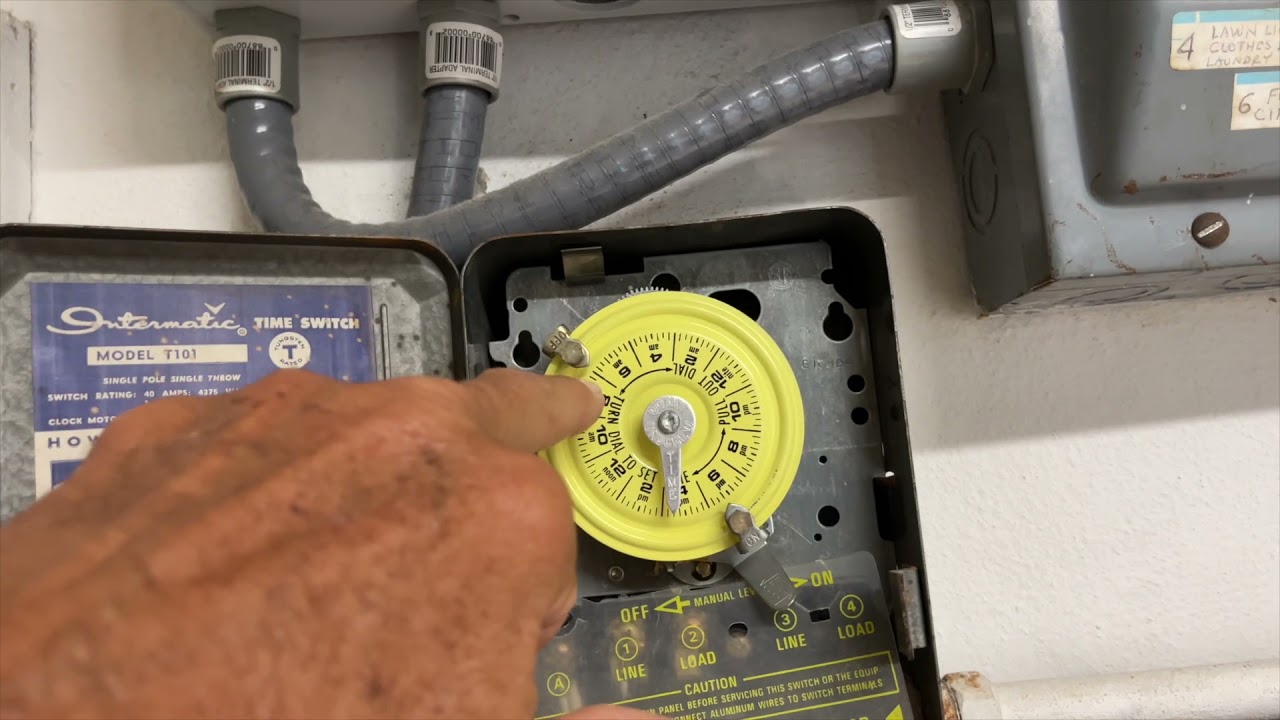

How To Use Intermatic Time Switch Model T101 43 Off The intermatic t101 clock is not turning to move time likely because the timer motor is not receiving power, the motor has burned out, or something is jammed in the gears. To set an on time: slide an "on" tripper (typically green or silver) onto the outer edge of the yellow dial at the desired activation time. to set an off time: slide an "off" tripper (typically red or black) onto the outer edge of the yellow dial at the desired deactivation time.
Snapklik Intermatic T101 24 Hour Mechanical Timer Switch 120v Spst To set “on” and “off” times: hold trippers against edge of clock dial, pointing to time (am or pm) when on and off operations are desired, tighten tripper screws firmly. Download the intermatic t100 t101 time switch user manual. learn how to program, operate, and troubleshoot this 24 hour dial time switch. You can use the manual lever on the mechanism to toggle the load on or off at any time. the timer will automatically return to its scheduled operation when the next tripper activates. We understand that it’s nice to have a paper manual for your intermatic t101 time switch. you can always download the manual from our website and print it yourself.
Intermatic Model T101 Mechanical Time Switch You can use the manual lever on the mechanism to toggle the load on or off at any time. the timer will automatically return to its scheduled operation when the next tripper activates. We understand that it’s nice to have a paper manual for your intermatic t101 time switch. you can always download the manual from our website and print it yourself. To override the timer function on the intermatic t101, you can use the override option to control both the pump and heater without manually turning on the timer. This document provides instructions for a 24 hour dial time switch that can be used to automatically turn electrical loads on and off at programmed times. it is a single pole, single throw switch that can handle loads up to 40 amps for resistive, inductive or tungsten applications. The intermatic t101 is typically mounted on a wall near the pool equipment and features a manual override switch for easy operation. the control device is user friendly and can be easily programmed to meet the specific needs of the pool owner. Subscribed 84 51k views 4 years ago how to use intermatic time switch model t101 more.
