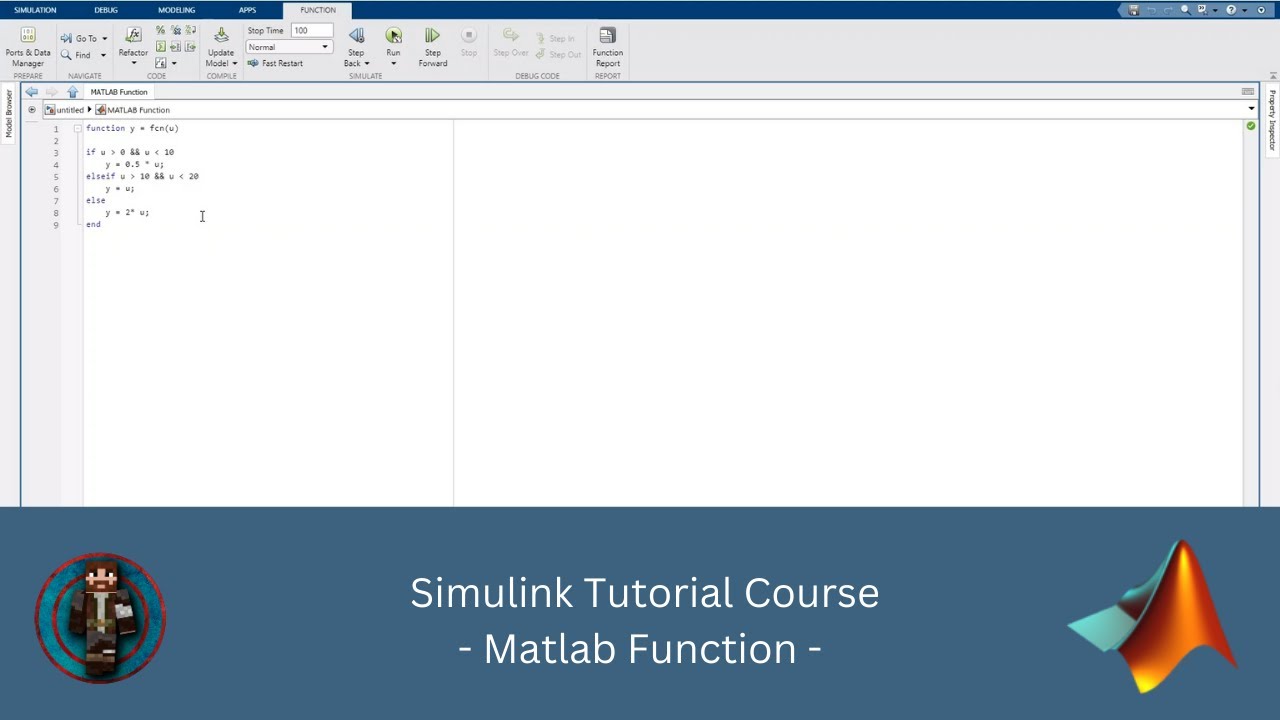

How To Code And Simulate A Matlab Function In Simulink Simulink Tutorial Model Function

Matlab Simulink Tutorial Pdf The matlab function block enables you to write matlab ® functions that execute in simulink ® models. the matlab function executes during simulation at each time step. Learn how to integrate matlab code into simulink models using matlab function blocks, enabling advanced simulations and custom algorithm implementation in your simulink projects.

Matlab Simulink Tutorial Pdf Matlab Simulation In this chapter we will understand how to make use of matlab function in simulink. open simulink and click on blank model. we need a constant block, a matlab function block and a display block for the output. In this page we will examine three of the ways in which simulink can interact with matlab. The embedded matlab function block is an easy and convenient way to write matlab m code that can be incorporated into a simulink model. this tutorial discusses the core features of the embedded matlab function block and presents an example model that uses the block. That’s it for this tutorial on creating our own function block in matlab simulink. we’ve seen how to add our own desired function to the block, and how to have multiple inputs and outputs.

Simulink Tutorial R2013a Pdf Matlab Numerical Analysis The embedded matlab function block is an easy and convenient way to write matlab m code that can be incorporated into a simulink model. this tutorial discusses the core features of the embedded matlab function block and presents an example model that uses the block. That’s it for this tutorial on creating our own function block in matlab simulink. we’ve seen how to add our own desired function to the block, and how to have multiple inputs and outputs. The following is an example of a simple simulink system that reads a variable from a matlab script, runs the model and exports the outputs into the workspace window. This document is designed to act as a tutorial for an individual who has had no prior experience with simulink. it is assumed that the reader has already read through the beginner and intermediate matlab tutorials. Use matlab function block to integrate simple functions. use the matlab system block to integrate code that requires state dynamics, large streaming data interface, and interaction with the simulink engine. This example starts with a model that includes a matlab function block and guides you through how to customize the block to calculate the mean and standard deviation for a vector of values.

Build And Simulate Models In Matlab Simulink The following is an example of a simple simulink system that reads a variable from a matlab script, runs the model and exports the outputs into the workspace window. This document is designed to act as a tutorial for an individual who has had no prior experience with simulink. it is assumed that the reader has already read through the beginner and intermediate matlab tutorials. Use matlab function block to integrate simple functions. use the matlab system block to integrate code that requires state dynamics, large streaming data interface, and interaction with the simulink engine. This example starts with a model that includes a matlab function block and guides you through how to customize the block to calculate the mean and standard deviation for a vector of values.
