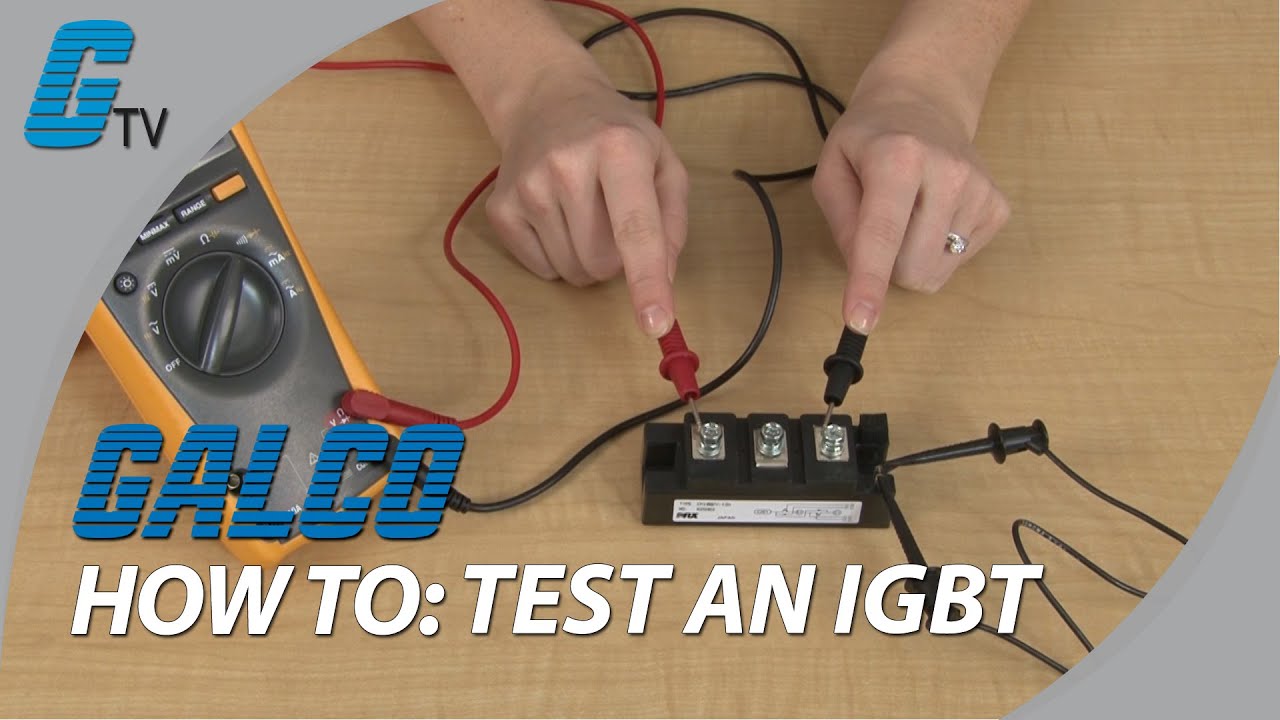

How To Test An Igbt With A Multimeter By following these steps, you can use a multimeter to assess the status of the igbt module and ensure that both its turn off and turn on characteristics are functioning as expected. A practical, step by step guide to testing an igbt module with a multimeter. learn how to quickly identify common faults like shorts, open circuits, and gate failures.
How To Test Igbt Find Bad Igbt Leets Academy This process involves measuring the diode like characteristics, resistance, or conductivity between its pins to identify potential shorts, open circuits, or other issues. below is a step by step guide on how to test an igbt using a multimeter, along with some important considerations. Learn how to check an igbt with a multimeter. this comprehensive guide covers everything you need to know, from identifying the different terminals on an igbt to performing a basic test. Testing an igbt using a multimeter is a relatively straightforward process, but it requires careful execution and understanding of the device’s operation. here’s a step by step guide to help you test an igbt effectively. Testing igbt transistor with a multimeter this guide provides a concise overview of the essential steps to test an insulated gate bipolar transistor (igbt) using a multimeter.
How To Test Igbt Find Bad Igbt Leets Academy Testing an igbt using a multimeter is a relatively straightforward process, but it requires careful execution and understanding of the device’s operation. here’s a step by step guide to help you test an igbt effectively. Testing igbt transistor with a multimeter this guide provides a concise overview of the essential steps to test an insulated gate bipolar transistor (igbt) using a multimeter. Learn how to test an igbt at home using a basic multimeter, from checking the diode to verifying the switching function. To test an igbt with multimeter , the meter should be used in diode checking mode. it should have battery voltage of less than 20v (a typical unit using 9v battery is alright). with the module out of circuit, remove the conductive foam and short the gate to the emitter. Step to test igbt module with analog multimeter. 1. discharge igbt by shorting 3 terminal together ( g c e short). the test igbt must remove from circuit and there is no power present while checking. 2. after discharging , do not touch any metal terminal and hold at insulated case if need. In this video, we’ll walk you through the process of testing insulated gate bipolar transistors (igbts) using a multimeter. whether you’re troubleshooting electronic circuits or working on.
