3 Tricks To Text Align Fast In Autocad Pdf Here, we’ll walk through the steps to center align multiline text in autocad, along with some additional tips for different alignment options. follow these steps to effectively center align multiline text in autocad:. Which text align setting allows you to set up evenly aligned text in autocad? textalign command description: aligns multiple text objects vertically, horizontally, or obliquely.

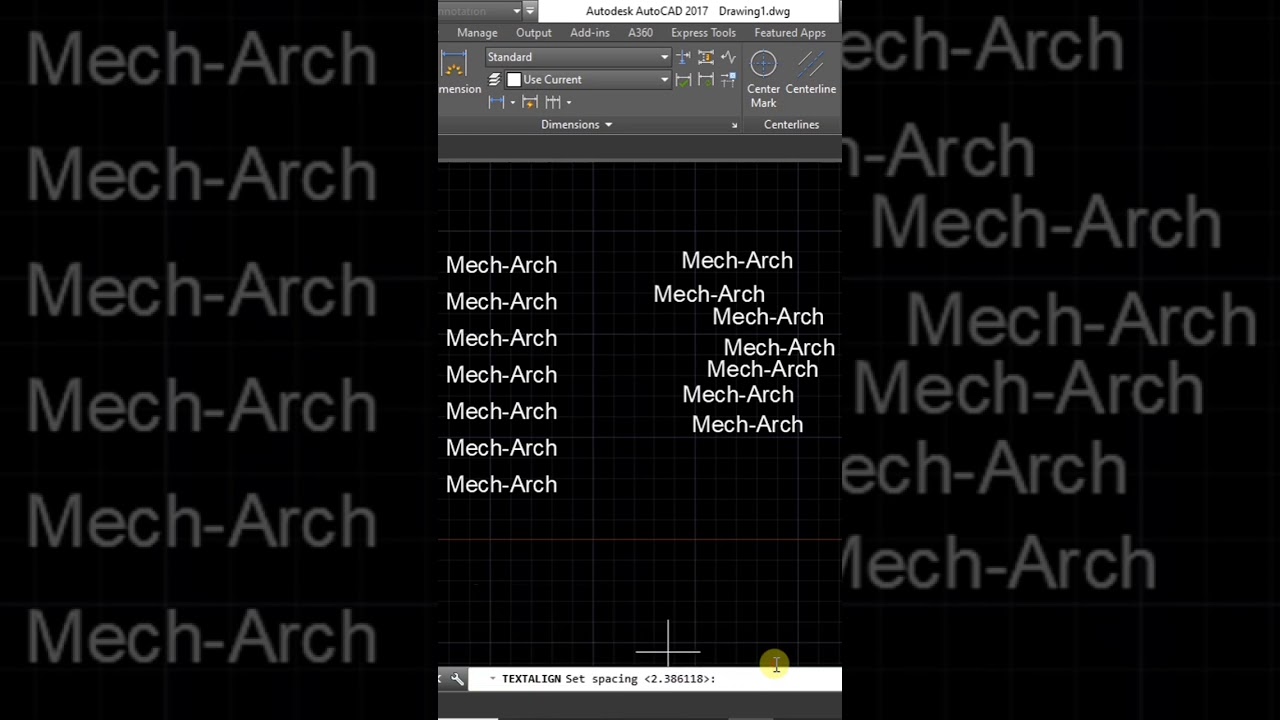

Autocad Text Align Tuesday Tips With Heidi Autocad Blog Autodesk The “text align” tool is located in the “text” panel of the “annotate” tab of the ribbon menu as shown in figure 1. once the command has been activated, select the “text” object to “align”, multiple “text” objects can be selected, the selected objects are shown in blue, as in figure 2. Click on the arc on which you want to make your aligned text, if the arc is a part of polyline then explode the polyline and then select arc. a new arcalignedtext workshop window will pop up. In the in place text editor, use one of the following methods: move the cursor over the right boundary of the text frame until the cursor changes to a double arrow. Tired of messy text in your autocad drawings? 😩 in this quick and clear tutorial, you'll see how to align your text like a pro 💪 so everything looks clean, consistent, and.
Autocad Text Align Tuesday Tips With Heidi Autocad Blog Autodesk In the in place text editor, use one of the following methods: move the cursor over the right boundary of the text frame until the cursor changes to a double arrow. Tired of messy text in your autocad drawings? 😩 in this quick and clear tutorial, you'll see how to align your text like a pro 💪 so everything looks clean, consistent, and. You have several options when you want to draw texts aligned (rotated) in a direction of existing lines (polylines, arcs, curves e.g. utility lines, electric conductors, parcels, street network, etc.) in your autocad drawings:. Activate the command: type mtext then press enter (or use the annotate ribbon → text → multiline text). click and drag to draw the text box where you want the paragraph to appear. the box width determines word wrapping. type your text inside the mtext editor that opens. Use the mtext command in autocad to create and edit multiline text with formatting, columns, styles, and fields. learn when to use mtext instead of text. Optimize text placement: place multiline text objects strategically to avoid clutter and overcrowding, ensuring sufficient spacing and alignment for readability and visual clarity.
