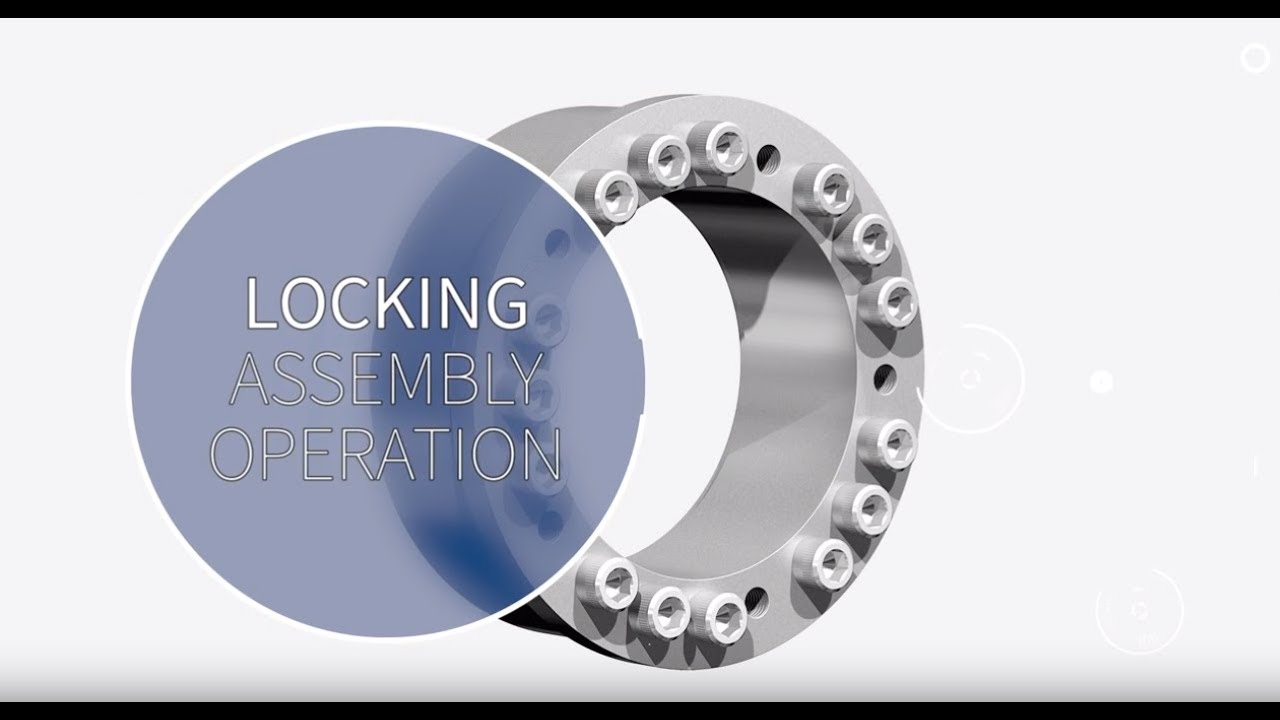

Ringfeder Locking Assemblies Catalogue En Pdf Gear Screw Compared to external clamping connections, e.g. shrink discs, locking assemblies are installed between shaft and hub. by tightening the clamping screws, inner and outer rings press themselves onto the contact surfaces of the components to be connected, thus creating a friction fit press connection. Learn how internal keyless locking devices work. locking assembly installs between the shaft and the clamped component.
Tech Paper Ringfeder Locking Assemblies Rfn 7515 En 08 2019 Pdf The document provides assembly, disassembly, and re assembly instructions for the ringfeder® rfn 7515 locking assemblies, emphasizing safety precautions and the importance of using appropriate lubricants. Switch off the drive before assembly work. safeguard the machine against accidental switch on. mount all covers and protection devices before switching on the machine. ringfeder® products may only be mounted by specialist staff and for suitable applications. The original ringfeder locking assemblies featuring double tapered thrust rings with self releasing tapers. they bridge relatively large fit clearances, are easy to install, adjust or remove, but are not self centering. Easy trouble free assembly removal – the reinforced flange prevents the locking assembly from distorting when the jacking screws are used during assembly and removal.
Locking Assemblies For Bending Moments Rfn 7515 Ringfeder The original ringfeder locking assemblies featuring double tapered thrust rings with self releasing tapers. they bridge relatively large fit clearances, are easy to install, adjust or remove, but are not self centering. Easy trouble free assembly removal – the reinforced flange prevents the locking assembly from distorting when the jacking screws are used during assembly and removal. Simple dismantling – ringfeder® locking assemblies are fitted with threaded extraction holes, so that no additional auxiliary equipment is necessary, series rfn 7012 is self releasing. As the friction lock of the locking assemblies ringfeder®rfn 7012 is proportional to the srew tightening torque, it is advised to use a torque wrench (see page 26). Ringfeder locking assemblies are suitable for securing all types of bosses and hubs to shafts and axles. no keyways or splines are required. thus notch effect is eliminated and a high polar section modulus is available. assemblies require no stops. they can therefore be located and positively locked at any position on the shaft. Compared to external clamping connections, e.g. shrink discs, locking assemblies are installed between shaft and hub. by tightening the clamping screws, inner and outer rings press themselves onto the contact surfaces of the components to be connected, thus creating a friction fit press connection.
