What Is A Solid Dielectric Capacitor These induced charges on the dielectric surface are of an opposite sign to the free charges on the plates of the capacitor, and so they are attracted by the free charges on the plates. As we discussed earlier, an insulating material placed between the plates of a capacitor is called a dielectric. inserting a dielectric between the plates of a capacitor affects its capacitance. to see why, let’s consider an experiment described in figure 8.17.

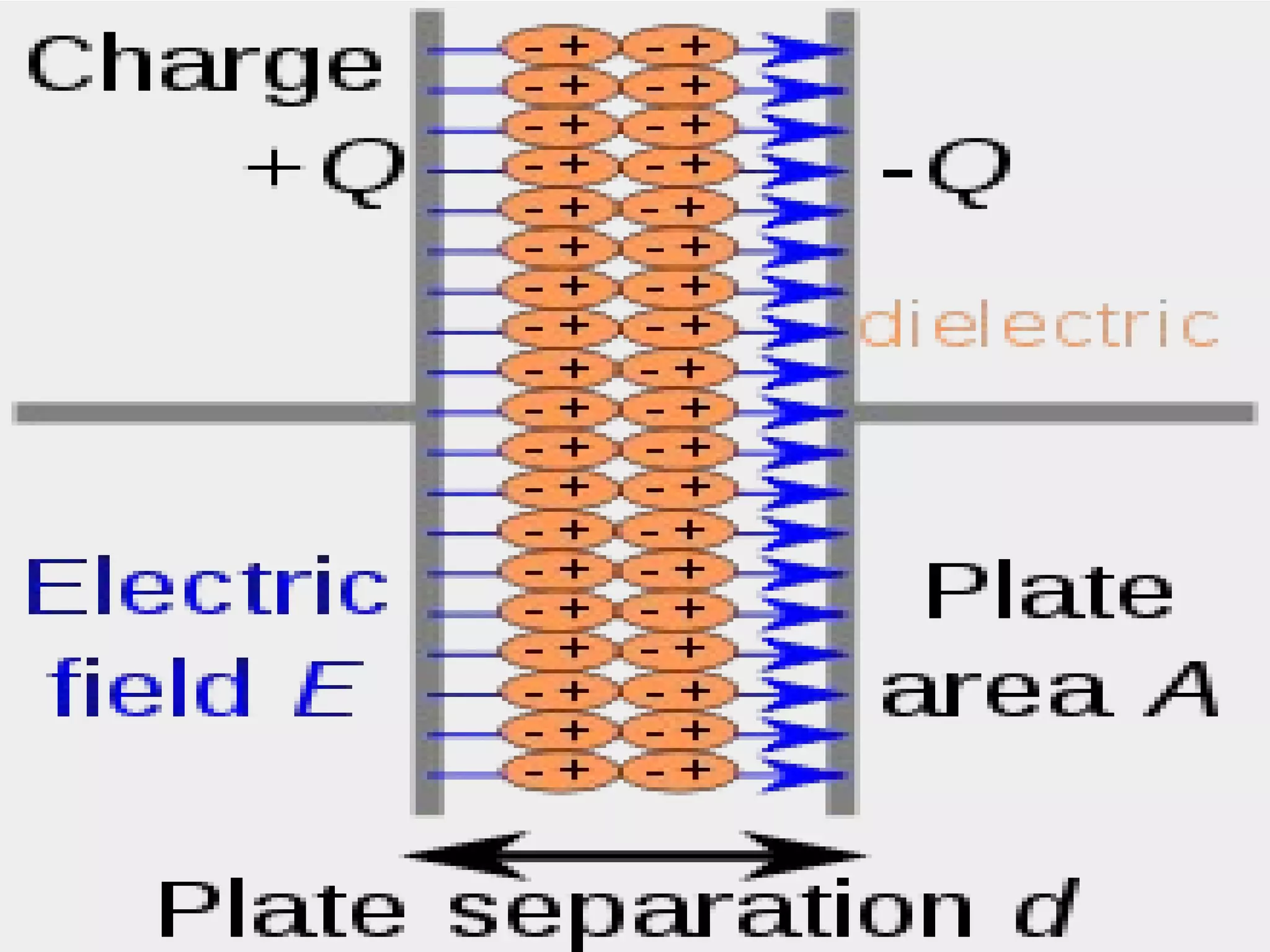

Capacitor With A Dielectric Ppt (b) the dielectric reduces the electric field strength inside the capacitor, resulting in a smaller voltage between the plates for the same charge. the capacitor stores the same charge for a smaller voltage, implying that it has a larger capacitance because of the dielectric. Because some electric field lines terminate and start on polarization charges in the dielectric, the electric field is less strong in the capacitor. thus, for the same charge, a capacitor stores less energy when it contains a dielectric. The capacitor stores the same charge for a smaller voltage, implying that it has a larger capacitance because of the dielectric. another way to understand how a dielectric increases capacitance is to consider its effect on the electric field inside the capacitor. Capacitors use non conducting materials or dielectric, to store charge and increase capacitance. dielectrics when placed between charged capacitor plates, it becomes polarized which reduces the voltage across the plate and increases the capacitance.
Capacitor With A Dielectric How Ti Works The capacitor stores the same charge for a smaller voltage, implying that it has a larger capacitance because of the dielectric. another way to understand how a dielectric increases capacitance is to consider its effect on the electric field inside the capacitor. Capacitors use non conducting materials or dielectric, to store charge and increase capacitance. dielectrics when placed between charged capacitor plates, it becomes polarized which reduces the voltage across the plate and increases the capacitance. A conductor may be a foil, thin film, sintered bead of metal, or an electrolyte. the nonconducting dielectric acts to increase the capacitor's charge capacity. materials commonly used as dielectrics include glass, ceramic, plastic film, paper, mica, air, and oxide layers. As the dielectric enters the field between the plates, it gets polarized by the field, and the charges get arranged such that they act as two charged sheets with a surface charge density of σ p and – σ p, as shown in the figure below. A dielectric polarizes: its bound charges partially cancel the field produced by the free charges on the plates. that is why (for the same free charge) the field and voltage drop, and why capacitance increases. But now because of the polarized molecules of the dielectric, there is addtional "pull" on each of the plates. (there is a slight pull from the negative side of the molecules on the positive plate and vice versa.) this causes additional charge to be attracted to each of the plates.
Electromagnetism Dielectric Slab Inserted Into Constant Charge A conductor may be a foil, thin film, sintered bead of metal, or an electrolyte. the nonconducting dielectric acts to increase the capacitor's charge capacity. materials commonly used as dielectrics include glass, ceramic, plastic film, paper, mica, air, and oxide layers. As the dielectric enters the field between the plates, it gets polarized by the field, and the charges get arranged such that they act as two charged sheets with a surface charge density of σ p and – σ p, as shown in the figure below. A dielectric polarizes: its bound charges partially cancel the field produced by the free charges on the plates. that is why (for the same free charge) the field and voltage drop, and why capacitance increases. But now because of the polarized molecules of the dielectric, there is addtional "pull" on each of the plates. (there is a slight pull from the negative side of the molecules on the positive plate and vice versa.) this causes additional charge to be attracted to each of the plates.
What Is A Dielectric The Effect Of Insertion Of The Dielectric Slab In A dielectric polarizes: its bound charges partially cancel the field produced by the free charges on the plates. that is why (for the same free charge) the field and voltage drop, and why capacitance increases. But now because of the polarized molecules of the dielectric, there is addtional "pull" on each of the plates. (there is a slight pull from the negative side of the molecules on the positive plate and vice versa.) this causes additional charge to be attracted to each of the plates.

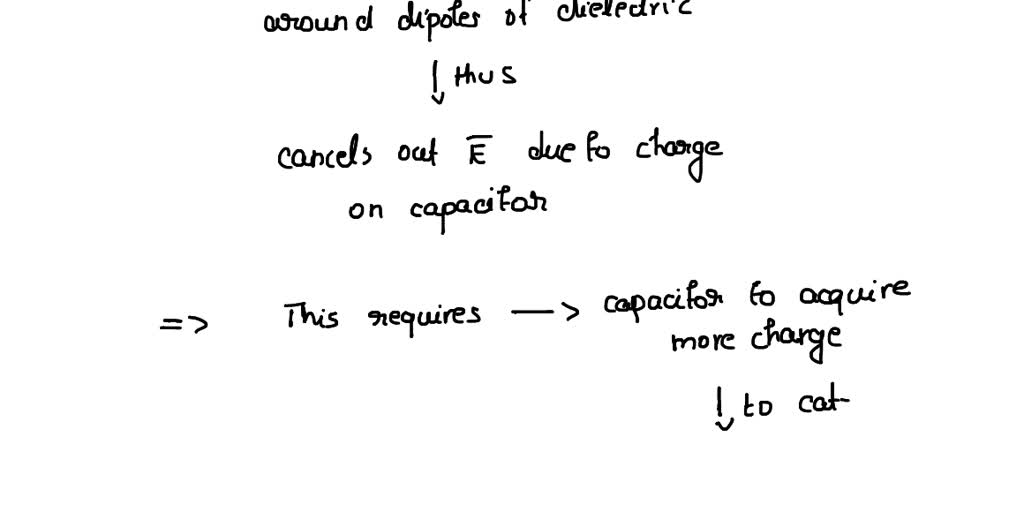

Solved How Does The Energy Contained In A Charged Capacitor Change
