Contactor Holding Circuit Diagram Knowing how to read and interpret a chcd is crucial for any electrician looking to complete a job correctly and safely. there are several key elements to a chcd including the components and their relationship to each other, the voltage required for the circuit, and the wiring configurations. Learn how to create a contactor holding circuit diagram for efficient and reliable control of electrical systems. understand the components involved and their connections to ensure the safe operation of your circuits.

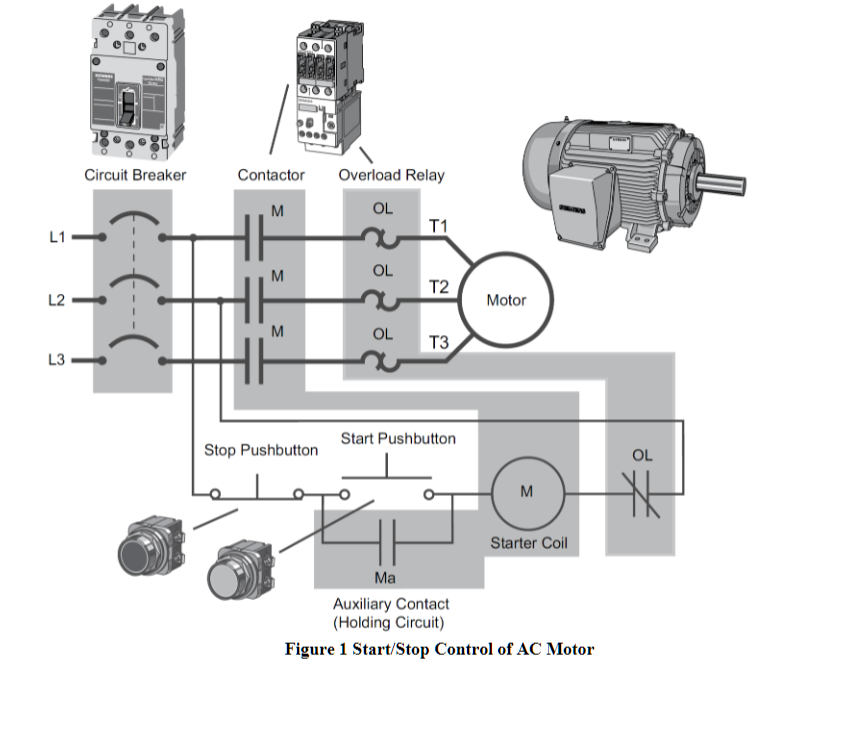

Contactor Holding Circuit Diagram This contactor holding circuit is mostly used in the motor controller or motor starter circuit such as dol starter, star delta starter, etc. This contactor holding circuit is mostly used in the motor controller or motor starter circuit such as dol starter, star delta starter, etc. the main objective of this holding circuit is to keep the contactor on condition even if we release the pressure from the no push button switch. The document describes how to build a self holding circuit using a contactor, push buttons, and power supply. it explains how to connect a normally open contactor and normally open and normally closed push buttons to control the contactor's switching of a load when the buttons are pressed. In summary, the contactor holding circuit consists of a contactor coil, holding contact, start and stop buttons, and control wiring. these components work together to keep the contactor coil energized, thus maintaining the circuit in an energized state even after the start button is released.
Contactor Holding Circuit Diagram The document describes how to build a self holding circuit using a contactor, push buttons, and power supply. it explains how to connect a normally open contactor and normally open and normally closed push buttons to control the contactor's switching of a load when the buttons are pressed. In summary, the contactor holding circuit consists of a contactor coil, holding contact, start and stop buttons, and control wiring. these components work together to keep the contactor coil energized, thus maintaining the circuit in an energized state even after the start button is released. Perhaps the most common industrial use for contactors is the control of electric motors. this being the case, the normally closed, timed closed contact of td1 between wires 8 and 5 will have immediately opened the moment td1 was energized. In this video, we demonstrate the working principle and wiring diagram of a contactor self locking (holding) circuit using a detailed animation. Nema and definite purpose contactors and starters. the holding circuit interlock is a normally open auxiliary contact on magnetic starters or contactors. used in three wire control schemes with momentary inputs. Holding circuit using no nc switch with contactor holding circuit for contactor published 1 year ago.
Contactor Holding Circuit Diagram Perhaps the most common industrial use for contactors is the control of electric motors. this being the case, the normally closed, timed closed contact of td1 between wires 8 and 5 will have immediately opened the moment td1 was energized. In this video, we demonstrate the working principle and wiring diagram of a contactor self locking (holding) circuit using a detailed animation. Nema and definite purpose contactors and starters. the holding circuit interlock is a normally open auxiliary contact on magnetic starters or contactors. used in three wire control schemes with momentary inputs. Holding circuit using no nc switch with contactor holding circuit for contactor published 1 year ago.
Contactor Holding Circuit Diagram Nema and definite purpose contactors and starters. the holding circuit interlock is a normally open auxiliary contact on magnetic starters or contactors. used in three wire control schemes with momentary inputs. Holding circuit using no nc switch with contactor holding circuit for contactor published 1 year ago.
