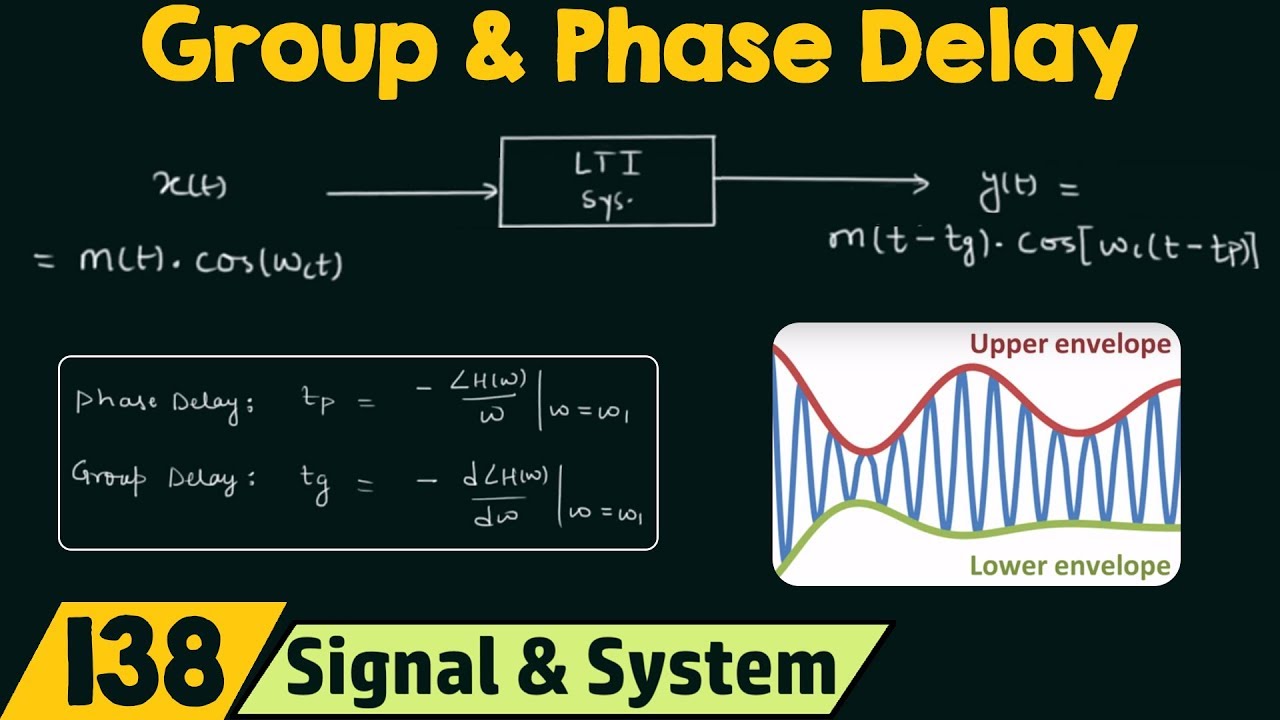

Group Delay And Phase Delay Pdf Wireless Telecommunications In that case, the group delay of the inner red device and the phase delay of the outer device give the same time delay figure for the signal as a whole, from the baseband input to the baseband output. Learn how to calculate and interpret the phase delay and group delay of lti digital filters, which measure the time delay of sinusoidal components at different frequencies. see examples, definitions, derivations and applications of these concepts.

Group Delay And Phase Delay Video Lecture Crash Course For Gate Ece Phase delay and group delay describe how different frequencies can propagate at different speeds in a dielectric medium. the concept is brought up in digital signal integrity, but it also applies in rf devices that use modulated signals and a reference oscillator. Plot the group delay and the phase delay of a fifth order butterworth lowpass filter. I know this is a pretty old question, but i've been looking for a derivation of the expressions for group delay and phase delay on the internet. not many such derivations exist on the net so i thought i'd share what i found. In the following section we’ll examine some basic mathematical properties of phase delay and group delay and explore how those properties relate to the phase response of an lti system.

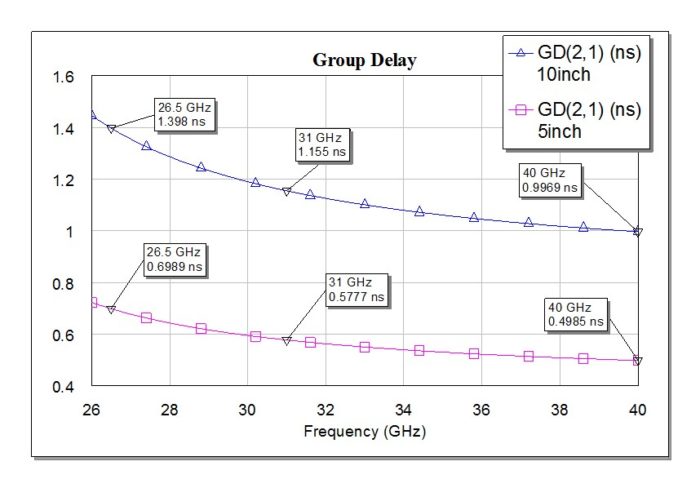

Group Delay Phase Equalizer Exceed Microwave I know this is a pretty old question, but i've been looking for a derivation of the expressions for group delay and phase delay on the internet. not many such derivations exist on the net so i thought i'd share what i found. In the following section we’ll examine some basic mathematical properties of phase delay and group delay and explore how those properties relate to the phase response of an lti system. In the next two sections we look at two alternative forms of the phase response: phase delay and group delay. after considering some examples and special cases, poles and zeros of the transfer function are discussed in the next chapter. Linear phase filters are characterized by a constant group delay. the deviation of the group delay from a constant value within the passband indicates the degree of nonlinearity in the phase. use the group delay to analyze the linearity of a filter. Group delay vs phase delay: what's the difference? i don’t know about you but i have always been confused about the group delay, phase delay, and sample delay in digital signal processing… let’s clear this all up once and for all! play video: group delay vs phase delay: what's the difference?. Is group delay the same as the delay calculated from the phase velocity? no, in dispersive media, the group velocity differs from the phase velocity, so the group delay is different from the phase delay (length divided by phase velocity).

Group Delay And Phase Delay Of A Filter Electrical Engineering Stack In the next two sections we look at two alternative forms of the phase response: phase delay and group delay. after considering some examples and special cases, poles and zeros of the transfer function are discussed in the next chapter. Linear phase filters are characterized by a constant group delay. the deviation of the group delay from a constant value within the passband indicates the degree of nonlinearity in the phase. use the group delay to analyze the linearity of a filter. Group delay vs phase delay: what's the difference? i don’t know about you but i have always been confused about the group delay, phase delay, and sample delay in digital signal processing… let’s clear this all up once and for all! play video: group delay vs phase delay: what's the difference?. Is group delay the same as the delay calculated from the phase velocity? no, in dispersive media, the group velocity differs from the phase velocity, so the group delay is different from the phase delay (length divided by phase velocity).
