Karnaugh 5 Variables Pdf Simplify boolean expressions with 5 variables using karnaugh map solver, step by step, with visual grouping and explanation. Design a circuit of 5 input variables that generates output 1 if and only if the number of 1’s in the input is prime (i.e., 2, 3 or 5). the minterms can easily be found from karnaugh map where addresses of 2,3 or 5 numbers of 1. this is shown in fig. x 6.

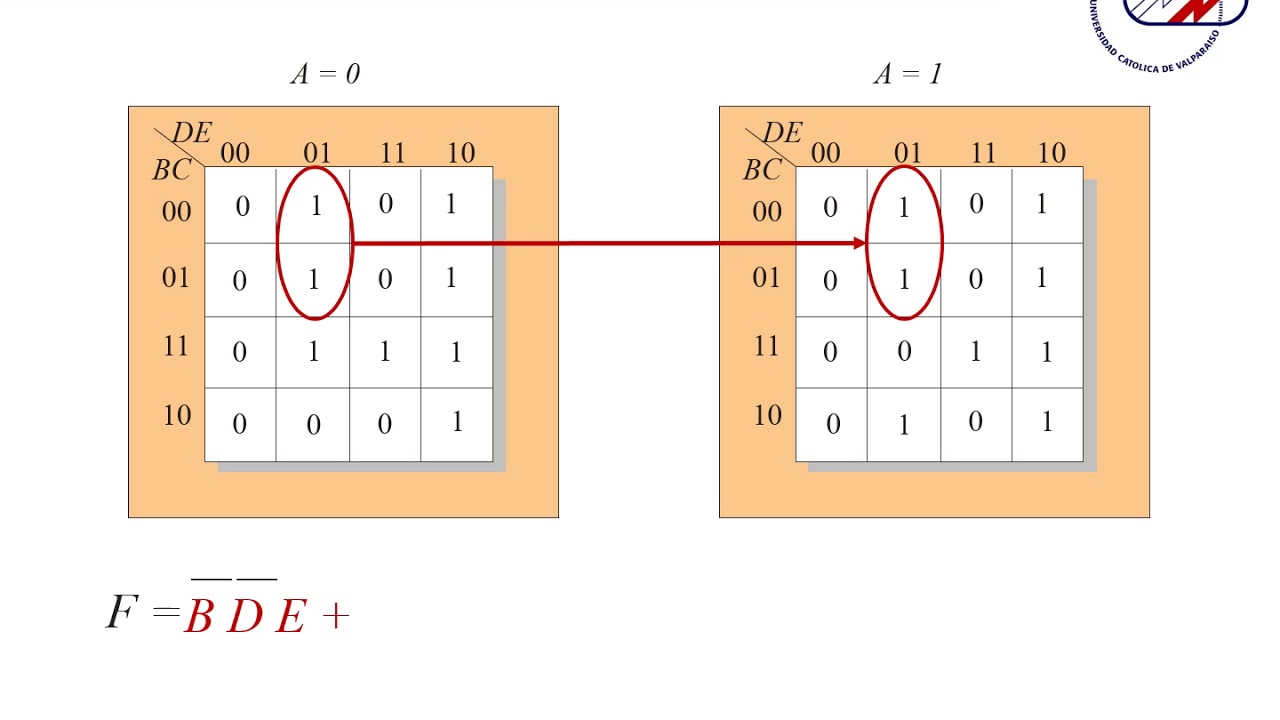

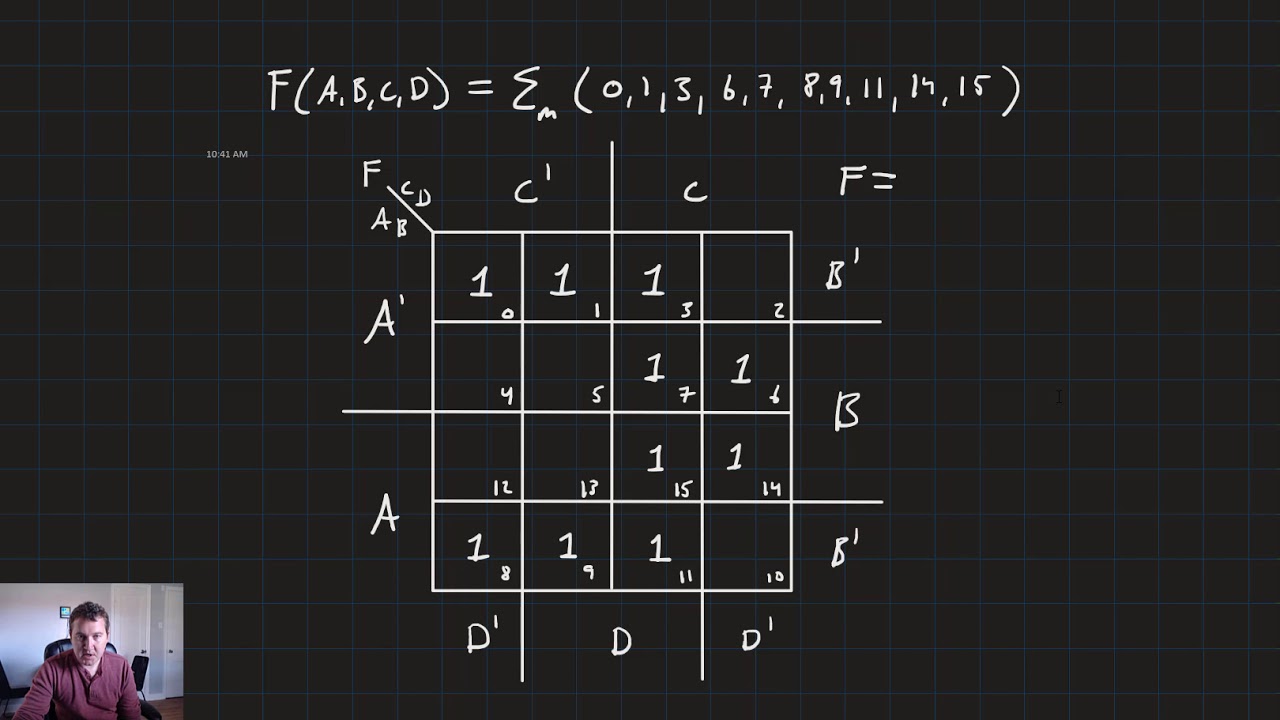

Grade 5 Variables Karnaugh As the number of variables keeps increasing, the efficacy of the karnaugh map decreases. let the 5 variable boolean function be represented as f ( p q r s t) where p, q, r, s, and t are the variables and p is the most significant bit variable and t is the least significant bit variable. In this article, we will look at the concepts and techniques behind the 5 variable k map in order to help you understand and use this useful tool in digital circuit design. We show five individual items above, which are just different ways of representing the same thing: an arbitrary 2 input digital logic function. first is relay ladder logic, then logic gates, a truth table, a karnaugh map, and a boolean equation. the point is that any of these are equivalent. To summarize: 1. two 5 variable k maps are needed, one for e=0 and one for e=1. 2. the minterms are plotted on the k maps and grouped to find the essential prime implicants. 3. the groupings yield the terms a'b'd' ad'e b'c'd' for the boolean function f (a,b,c,d,e).
Grade 5 Variables Karnaugh We show five individual items above, which are just different ways of representing the same thing: an arbitrary 2 input digital logic function. first is relay ladder logic, then logic gates, a truth table, a karnaugh map, and a boolean equation. the point is that any of these are equivalent. To summarize: 1. two 5 variable k maps are needed, one for e=0 and one for e=1. 2. the minterms are plotted on the k maps and grouped to find the essential prime implicants. 3. the groupings yield the terms a'b'd' ad'e b'c'd' for the boolean function f (a,b,c,d,e). This free k map solver online helps students and engineers simplify boolean expressions using karnaugh maps. enter minterms and optional don’t care terms to instantly get a minimized sop expression. This article discusses an overview of what is a karnaugh map, steps to solve expression, k map for different variables and examples. A karnaugh map (k map) is a graphical method used to simplify boolean algebra expressions. while k maps are very effective for 2, 3, and 4 variables, solving 5 variable k maps becomes significantly more complex due to the increased number of cells and the challenge of visualizing adjacencies. Here, we will discuss five variable k map and will use it to simplify boolean functions in 5 variables. so lets start with the introduction of 5 variable k map.
Grade 5 Variables Karnaugh This free k map solver online helps students and engineers simplify boolean expressions using karnaugh maps. enter minterms and optional don’t care terms to instantly get a minimized sop expression. This article discusses an overview of what is a karnaugh map, steps to solve expression, k map for different variables and examples. A karnaugh map (k map) is a graphical method used to simplify boolean algebra expressions. while k maps are very effective for 2, 3, and 4 variables, solving 5 variable k maps becomes significantly more complex due to the increased number of cells and the challenge of visualizing adjacencies. Here, we will discuss five variable k map and will use it to simplify boolean functions in 5 variables. so lets start with the introduction of 5 variable k map.
Grade 5 Variables Karnaugh Map A karnaugh map (k map) is a graphical method used to simplify boolean algebra expressions. while k maps are very effective for 2, 3, and 4 variables, solving 5 variable k maps becomes significantly more complex due to the increased number of cells and the challenge of visualizing adjacencies. Here, we will discuss five variable k map and will use it to simplify boolean functions in 5 variables. so lets start with the introduction of 5 variable k map.
