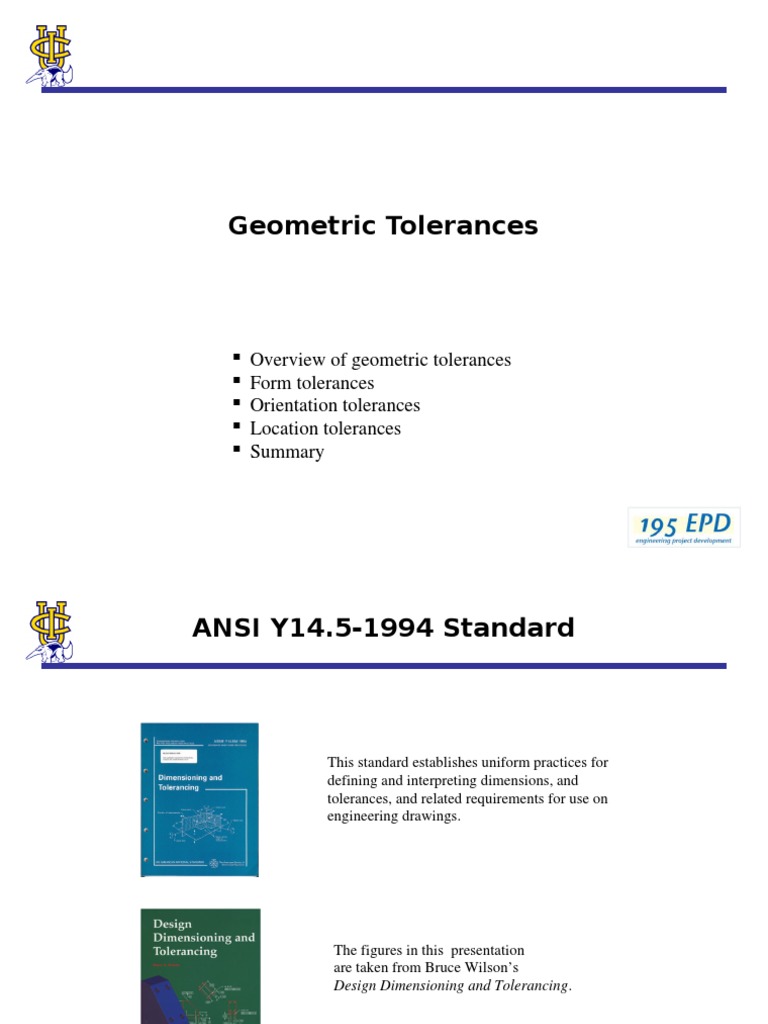

Geometric Tolerances Pdf Engineering Tolerance Space He is a subject matter expert (sme3) to asme’s statistical tolerancing technical subcommittee, a member of asme’s geometric dimensioning and tolerancing committee, a six sigma blackbelt, and a licensed professional engineer in texas. he holds two patents related to mechanical tolerancing. What is gd & t ? when to use gd & t ? why to use gd & t ? leads to high productivity, less rework and reduced cost. always need a datum (reference) plane feature. if not specified, treat feature tolerance as rfs.
Geometric Tolerance Pdf As the diameters of the holes increase to 10.5mm diameter, the tolerance zones increase proportionately to 0.75mm diameter. the tolerances. in this example, apply to the center distance between holes as well as the location of these features as a group from the datum planes (a b c). Geometric dimensioning and tolerancing (gd&t) is a language for communicating engineering design specifications. gd&t includes all the symbols, definitions, mathematical formulae, and application rules necessary to embody a viable engineering language. A tolerance specified at rfs is only the tolerance specified in the feature control frame, and no bonus tolerance is added. geometric tolerances specified at rfs are often used when tolerancing high speed, rotating parts, or when symmetrical relationships are required. Iso 286 1:2010 geometric product specifications (gps) – iso code system for tolerances on linear sizes – part 1: basis of tolerances, deviations, and fits.
Geometric Tolerances A Guide To Classification Machinemfg A tolerance specified at rfs is only the tolerance specified in the feature control frame, and no bonus tolerance is added. geometric tolerances specified at rfs are often used when tolerancing high speed, rotating parts, or when symmetrical relationships are required. Iso 286 1:2010 geometric product specifications (gps) – iso code system for tolerances on linear sizes – part 1: basis of tolerances, deviations, and fits. Iso 2768 2 is for simplifying drawing and fixes general tolerances in 3 tolerance classes (h, k, and l), this part including general geometrical tolerances range of flatness & straightness, cylindricity, and circularity. you can check the tolerance chart below:. Provides a concise way to describe a reference coordinate system (datums) of a component or assembly to be used throughout the manufacturing and inspection processes. reduces the amount of notes, dimensions, and tolerances on a drawing; quickly convey design, manufacturing and inspection intent. Overview of geometric tolerances geometric tolerances define the shape of a feature as opposed to its size. we will focus on three basic types of geometric tolerances:. In order to properly plan the processes to make a part, you must first understand the part designer's intention. geometric dimensioning and tolerancing is a method by which designers specify the geometric form of parts.
01a Geometric Tolerances Pdf Design For Manufacture And Assembly Iso 2768 2 is for simplifying drawing and fixes general tolerances in 3 tolerance classes (h, k, and l), this part including general geometrical tolerances range of flatness & straightness, cylindricity, and circularity. you can check the tolerance chart below:. Provides a concise way to describe a reference coordinate system (datums) of a component or assembly to be used throughout the manufacturing and inspection processes. reduces the amount of notes, dimensions, and tolerances on a drawing; quickly convey design, manufacturing and inspection intent. Overview of geometric tolerances geometric tolerances define the shape of a feature as opposed to its size. we will focus on three basic types of geometric tolerances:. In order to properly plan the processes to make a part, you must first understand the part designer's intention. geometric dimensioning and tolerancing is a method by which designers specify the geometric form of parts.
4 Geometric Tolerances And Dimensioning Pdf Overview of geometric tolerances geometric tolerances define the shape of a feature as opposed to its size. we will focus on three basic types of geometric tolerances:. In order to properly plan the processes to make a part, you must first understand the part designer's intention. geometric dimensioning and tolerancing is a method by which designers specify the geometric form of parts.
