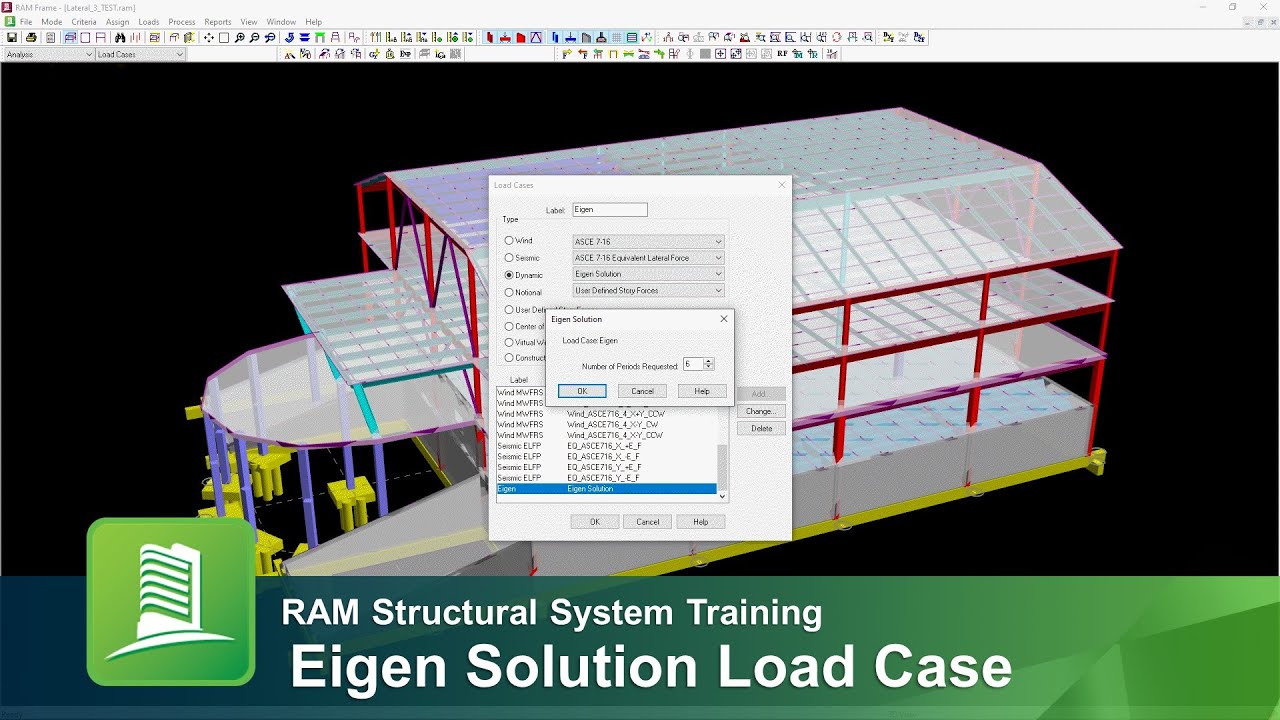

Ram Frame Analysis Pdf Buckling Beam Structure In this video, you will learn how to generate the eigen solution load case in ram frame (ram structural system). One load case will be generated for each direction at which the force acts. you may specify the technique to be used in the combination of the modal responses by choosing either srss or cqc. see section 6.9.4 in the ram frame manual for further discussion on modal combination methods.

Eigen Solution And Response Spectrum Method Pdf Physics Create an eigen solution dynamic load case and enter the number of modes to consider. the number of modes can be changed at any point by changing this load case in ram frame (loads > load cases). It covers essential topics such as modeling considerations, load cases, analysis modes, and building codes, along with detailed instructions on various tools and features within the software. Generating seismic loads in ram frame according to the ibc equivalent lateral force procedure 4. The eigenvalue extraction consists of determining the lowest frequencies (ω, which also corresponds to highest periods) and mode shapes (Φ) of the structure. the fundamental structural periods in the global x and y directions can be used in the generation of equivalent static seismic loads.

Ram Frame Inas S A Generating seismic loads in ram frame according to the ibc equivalent lateral force procedure 4. The eigenvalue extraction consists of determining the lowest frequencies (ω, which also corresponds to highest periods) and mode shapes (Φ) of the structure. the fundamental structural periods in the global x and y directions can be used in the generation of equivalent static seismic loads. For the calculation of structural periods and modes, there are three methods provided in the program: subspace iteration, arnoldi lanczos eigenvalue solution, and (load dependent) ritz vectors. the subspace iteration solution is the default choice in the program. Gravity "loads" are defined in ram modeler. these can be in the form of surface loads, line loads, and point loads. additional lateral loads can be defined for load cases in ram modeler nodal loads and pressure loads. Ram frame utilizes a nonlinear analysis algorithm to track tension only members during solution of the structural model under applied lateral loads. the program applies the loads for a given load case to the structure and iteratively controls the stiffness of the tension only members. For the calculation of structural periods and modes, there are three methods provided in the program: subspace iteration, arnoldi lanczos eigenvalue solution, and (load dependent) ritz vectors. the subspace iteration solution is the default choice in the program.

Ram Frame Inas S A For the calculation of structural periods and modes, there are three methods provided in the program: subspace iteration, arnoldi lanczos eigenvalue solution, and (load dependent) ritz vectors. the subspace iteration solution is the default choice in the program. Gravity "loads" are defined in ram modeler. these can be in the form of surface loads, line loads, and point loads. additional lateral loads can be defined for load cases in ram modeler nodal loads and pressure loads. Ram frame utilizes a nonlinear analysis algorithm to track tension only members during solution of the structural model under applied lateral loads. the program applies the loads for a given load case to the structure and iteratively controls the stiffness of the tension only members. For the calculation of structural periods and modes, there are three methods provided in the program: subspace iteration, arnoldi lanczos eigenvalue solution, and (load dependent) ritz vectors. the subspace iteration solution is the default choice in the program.
