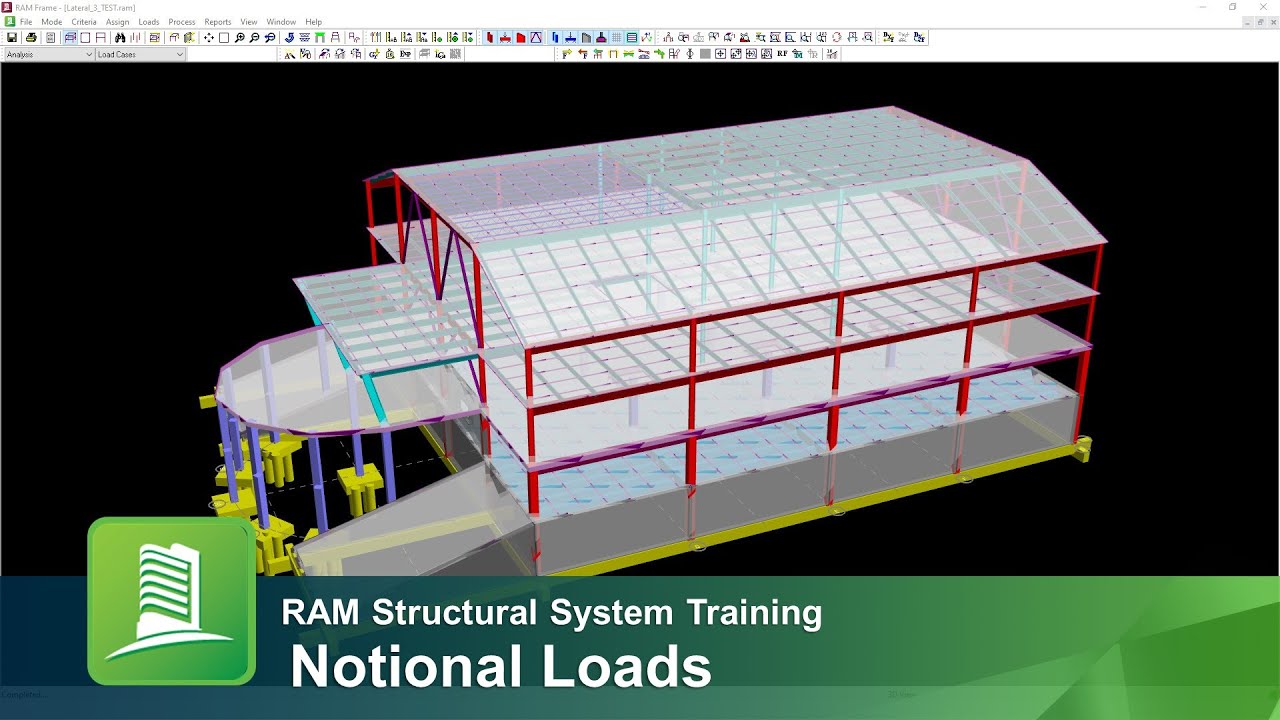

Ram Structural System Pdf Beam Structure Column The values used for the gravity loads at each diaphragm are automatically calculated, but can be modified using the loads > gravity for notional command in the ram frame analysis mode. note that the notional loads are unfactored for analysis; they are factored in the load combinations. In this video, you will learn how to generate notional loads in ram structural system in preparation for performing a direct analysis according to the aisc 360.
Vibration Analysis In The Ram Structural System Pdf To consider the combined effects of gravity and notional loads, the program requires some steel design type load combinations. use the load combination generator tool to generate a set of steel design combos, asce 7 16 lrfd is appropriate in this case. The ram frame user manual provides comprehensive guidance on using the ram structural system for structural analysis and design, with updates as of march 21, 2023. The gravity loads that have been applied on each diaphragm are reported in the loads > gravity for notional command. based on these values, notional loads can be generated. Notional loads are required to be applied. they are generated using the loads – load cases command in ram frame analysis mode.
Load Generator And Combination For Ram Structural System Pdf The gravity loads that have been applied on each diaphragm are reported in the loads > gravity for notional command. based on these values, notional loads can be generated. Notional loads are required to be applied. they are generated using the loads – load cases command in ram frame analysis mode. Sets of notional loads share a common direction. notional loads acting in different directions will not be included in the same combination (e.g., an x direction notional dead load will not be included in the same combination as a y direction notional live load). The notional loads dialog is where notional loads are defined. a notional load is a fictitious lateral load applied in a structural analysis as a means to account for the destabilizing effects of gravity loads that are not otherwise accounted for in design provisions. Notional loads are applied at each framing level and specified in terms of the gravity loads applied at that level. the gravity loads applied to each diaphragm can be reviewed and modified by issuing the loads > gravity loads command. The values used for the gravity loads at each diaphragm are automatically calculated, but can be modified using the loads > gravity for notional command in the ram frame analysis mode. note that the notional loads are unfactored for analysis; they are factored in the load combinations.
