Solved A Gear Reduction System Consists Of Three Gears A B And C 🚀 struggling with gear systems? learn how to calculate angular velocity and acceleration step by step!. In this section we use the moments of inertia of geared shafts to identify the total torque and the equivalent moment of inertia for any given shaft in a state of acceleration.

Solutions Acceleration Of A Geared System Pdf Torque Electric Motor Technical explanations and interactive examples are provided for the kinematics of different gear system architectures. use cases are given to formulate and solve angular velocities in parallel and planetary gear systems. It includes questions related to determining angular velocities, angular accelerations, linear velocities and linear accelerations in systems involving gears, pulleys, linkages and other moving parts. Question 1: a gear reduction system consists of three gears 𝐴, 𝐵, and 𝐶. knowing that gear 𝐴rotates clockwise with a constant angular velocity of 600 𝑟𝑝𝑚, determine (a)the angular velocities of gears 𝐵 and 𝐶, (b) the accelerations of the points on gears 𝐵and 𝐶 which are in contact. This section provides materials from a lecture session on velocity, acceleration, and rotational motion. materials include a session overview, assignments, lecture and recitation videos, and a problem set with solutions.

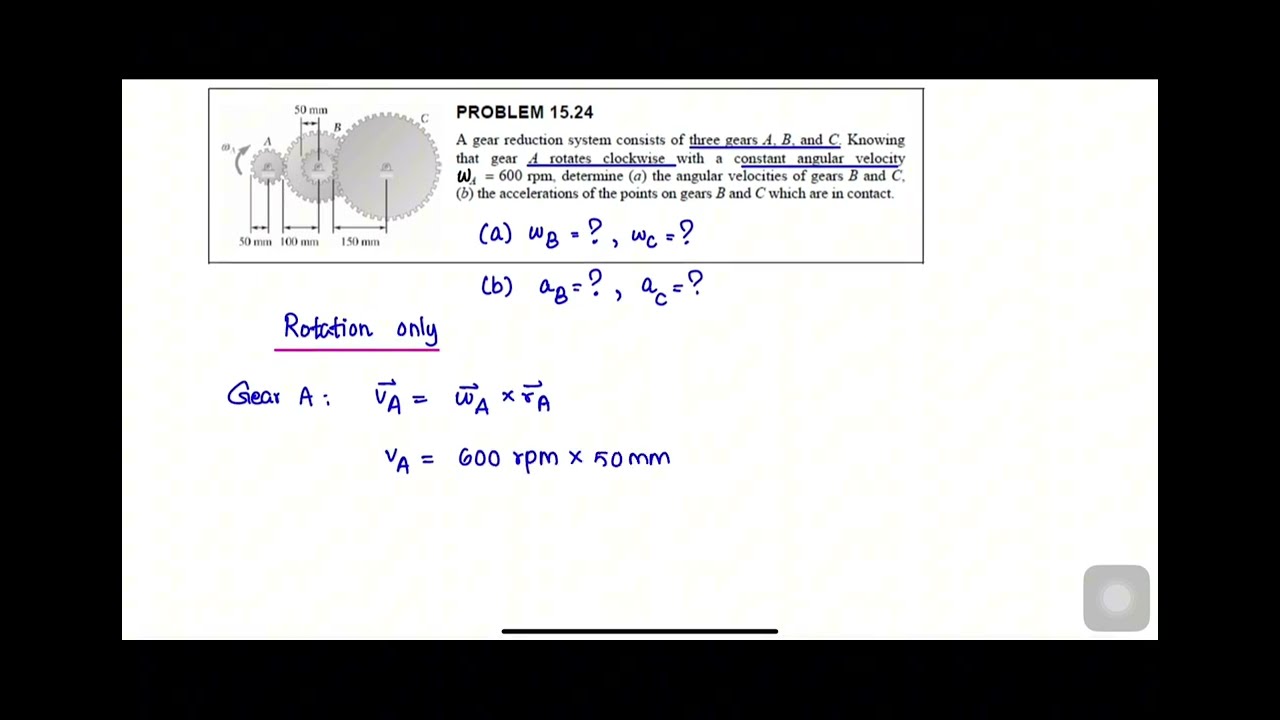

The Large Gear Is Fixed The Angular Velocity And Question 1: a gear reduction system consists of three gears 𝐴, 𝐵, and 𝐶. knowing that gear 𝐴rotates clockwise with a constant angular velocity of 600 𝑟𝑝𝑚, determine (a)the angular velocities of gears 𝐵 and 𝐶, (b) the accelerations of the points on gears 𝐵and 𝐶 which are in contact. This section provides materials from a lecture session on velocity, acceleration, and rotational motion. materials include a session overview, assignments, lecture and recitation videos, and a problem set with solutions. A gear reduction system consists of three gears a, b, and c. knowing that gear a rotates clockwise with a constant angular velocity ωa = 600 rpm, determine (a) the angular velocities of gears b and c, (b) the accelerations of the points on gears b and c which are in contact. In a gear reduction system, the angular speeds of the gears are inversely proportional to their sizes (or number of teeth) through the gear ratio. Determine the angular velocity of gear b by using the relationship v a = v b and substituting the given angular velocity of gear a into the equation r a ω a = r b ω b. A gear reduction system consists of three gears a, b, and c. knowing that gear a rotates clockwise with a constant angular velocity 𝜔 = 600 rpm, determine (a) the angular velocities of gears b and c, and (b) the accelerations of the points on gears b and c which are in contact.

Solved 2 In A Gear Reduction System Consists Of Three Gears A B And C A gear reduction system consists of three gears a, b, and c. knowing that gear a rotates clockwise with a constant angular velocity ωa = 600 rpm, determine (a) the angular velocities of gears b and c, (b) the accelerations of the points on gears b and c which are in contact. In a gear reduction system, the angular speeds of the gears are inversely proportional to their sizes (or number of teeth) through the gear ratio. Determine the angular velocity of gear b by using the relationship v a = v b and substituting the given angular velocity of gear a into the equation r a ω a = r b ω b. A gear reduction system consists of three gears a, b, and c. knowing that gear a rotates clockwise with a constant angular velocity 𝜔 = 600 rpm, determine (a) the angular velocities of gears b and c, and (b) the accelerations of the points on gears b and c which are in contact.
