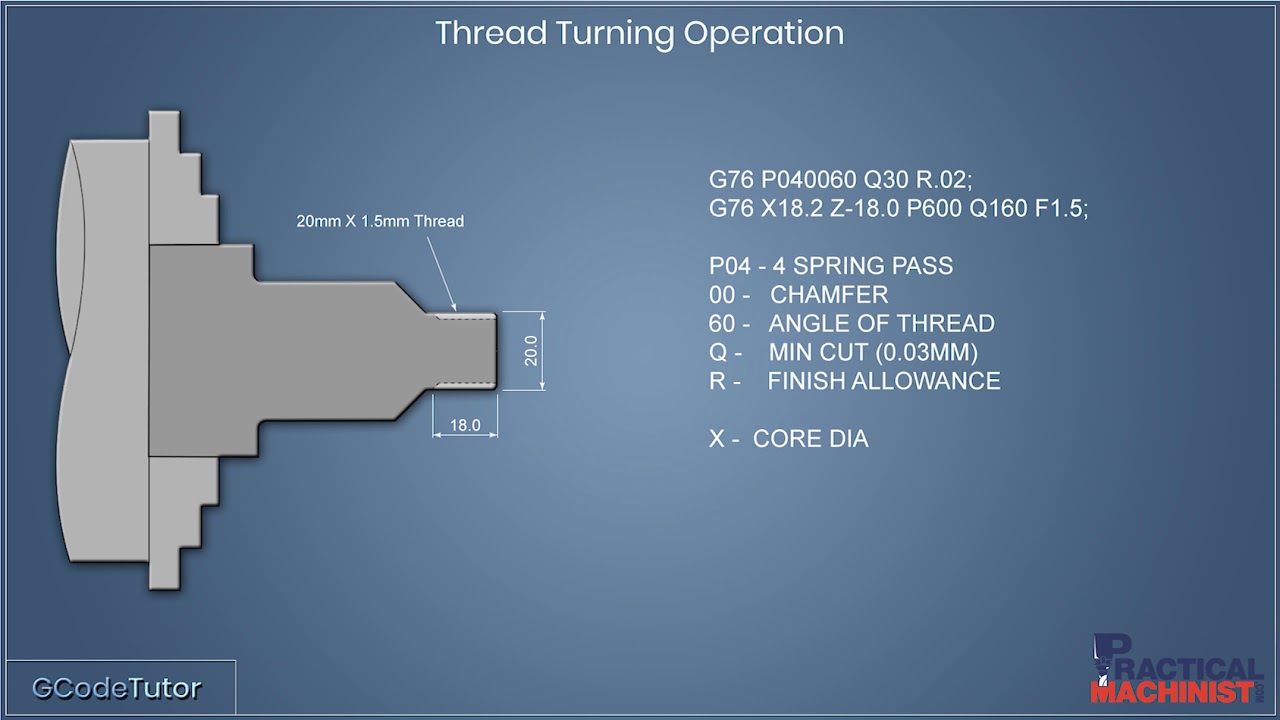

G76 Screw Thread Cycle Pdf Pdf Machining Industrial Processes The g76 threading cycle does far more than repeat a cutting pass. it tells the control how to progressively shape a thread by managing how much material is removed on each pass, how the tool feeds along the part, and how the final thread form is produced. G76 is the industry standard threading cycle for cnc lathes, offering unmatched control, accuracy, and efficiency. it handles both internal and external threads, supports tapered profiles, manages infeed logic, and ensures professional grade thread quality with minimal operator intervention.
G76 Screw Thread Cycle Artofit Most of the cycles on a cnc lathe are wrongly call canned cycles. the correct name for a cycle like g76 threading cycle and g71 roughing cycle is a multi repetitive cycle. G76 threading cycle can be used for internal threading on cnc lathe machines. this g76 threading example actually cuts external threads on two different diameters. After completing this unit, you should be able to: g76 threading cycle. read this webpage from haas about g76 threading cycle, multiple pass (group 00). g76 is the automatic cycle for threading. remember, the name of these automatic cycles in cnc codes is canned cycles. variable list: x = minor diameter, d. z = length of thread, where d stops. Master the g76 threading cycle for fanuc cnc lathes with our detailed guide covering essential parameters, tips, and programming techniques.
G76 Screw Thread Cycle Artofit After completing this unit, you should be able to: g76 threading cycle. read this webpage from haas about g76 threading cycle, multiple pass (group 00). g76 is the automatic cycle for threading. remember, the name of these automatic cycles in cnc codes is canned cycles. variable list: x = minor diameter, d. z = length of thread, where d stops. Master the g76 threading cycle for fanuc cnc lathes with our detailed guide covering essential parameters, tips, and programming techniques. Using g32, g33, and g76, machinists can cut single, multiple, and custom threads with absolute pitch accuracy — synchronized to the spindle rotation. this guide explains real threading g code, fanuc g76 multi pass formats, and custom macro logic for advanced threading applications. The g76 cycle allows for specifying thread diameter, pitch, and length, and is used in combination with x axis movements when programming a cnc lathe. precise programming and calculation of variables guarantee accurate and consistent thread production using the g76 cycle. G76 consists of 2 lines of code that fully define the desired thread, these lines are called out by the g76 and g76.1 g codes. note: the cutting tool should be positioned where the threading passes will start before the g76 sequence is initiated. 6.1.3. g76 threading cycle threads can be done externally or internally with this two block threading canned cycle. here is a brief explanation of the cycle and its parameters.
