G73 Peck Drilling Example Canned Cycle Cnc Training Centre G73 is a high speed peck drilling cycle that drills in steps to break chips. learn the syntax, parameters, code example, and when to use g73 vs g83. An in depth look at the g73 and g83 drilling cycles on a cnc milling machine. also including variable depth pecking technique.

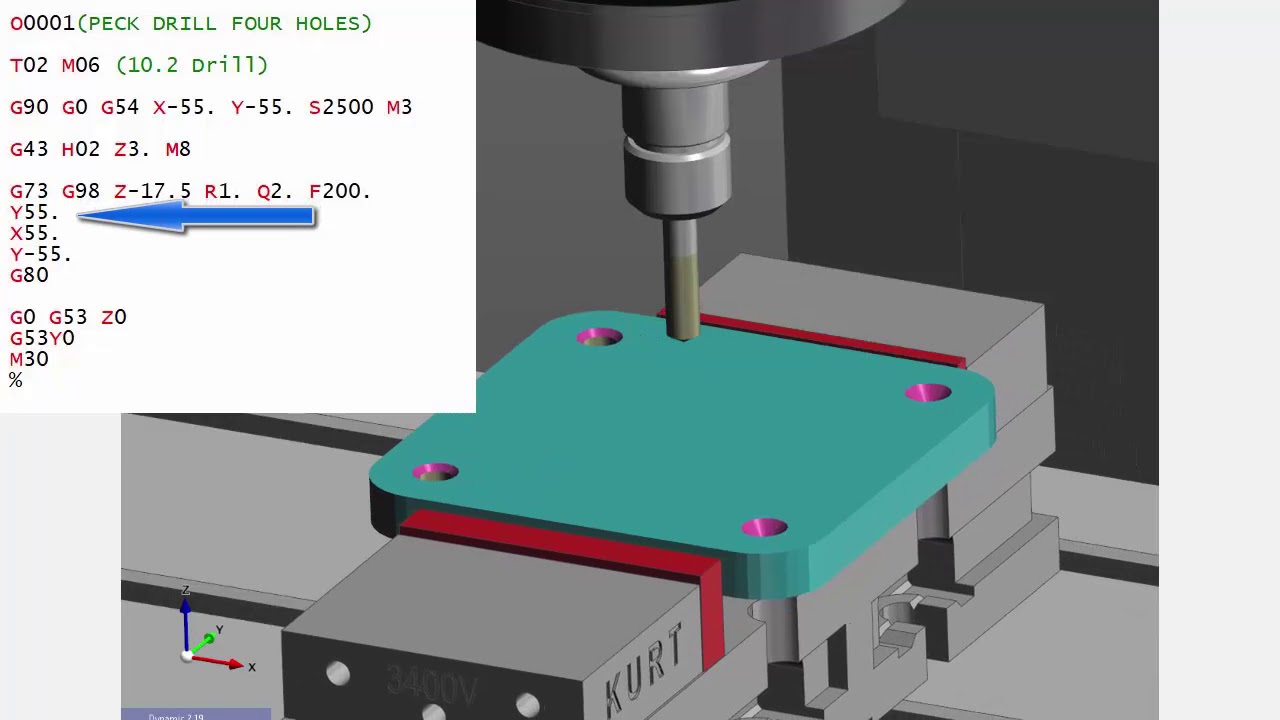

G73 Peck Drilling Example Canned Cycle Cnc Training Centre G73 is a high speed peck drilling cycle used for shallow to medium depth holes where chips need to be broken quickly without retracting completely out of the hole. It then rapids the z axis down to 1mm above the part r1. the g73 cycle instructs it to drill a hole 17.5mm deep (z 17.5) at a feed of 200mm per minute (f200.) the q2. tells the machine to drill the hole in 2mm steps. after each step it retracts a small amount to break up the chips from the drilling. as it drills the depth increases by 2mm each. Example program the following fanuc g73 chip break drilling cycle example code shows how to use g73 drilling cycle and how to use g98 and g99 g code with g73 cycle. For example, once we select the high speed peck drilling cycle with g73, subsequent coordinates on later lines specify new hole locations where more peck drilling will be done.
G73 Peck Drilling Example Canned Cycle Cnc Training Centre Example program the following fanuc g73 chip break drilling cycle example code shows how to use g73 drilling cycle and how to use g98 and g99 g code with g73 cycle. For example, once we select the high speed peck drilling cycle with g73, subsequent coordinates on later lines specify new hole locations where more peck drilling will be done. In this mode, the tool is returned to the r plane after all pecks are completed, and all pecks will be equal to the q value.g73 peck drilling canned cycles using the k and q addresses: [#22] setting 22. keep up with the latest haas tips and technology. In this example, the first line moves the x and y axes to x10 y10, sets the retract plane to z2, and drills to z 8 using a peck depth of 1 mm at a feed rate of 100 millimetres per minute. Coolant delivery plays a critical role in deep hole drilling. the g73 cycle supports the use of through tool coolant, ensuring effective heat dissipation and lubrication. the cycle utilizes peck drilling techniques, retracting the tool periodically to clear chips and minimize tool deflection. Learn about the g73 g code command used in cnc machining. see it in an example g code program and get started with g73 today.
G73 Peck Drilling Example Canned Cycle Cnc Training Centre In this mode, the tool is returned to the r plane after all pecks are completed, and all pecks will be equal to the q value.g73 peck drilling canned cycles using the k and q addresses: [#22] setting 22. keep up with the latest haas tips and technology. In this example, the first line moves the x and y axes to x10 y10, sets the retract plane to z2, and drills to z 8 using a peck depth of 1 mm at a feed rate of 100 millimetres per minute. Coolant delivery plays a critical role in deep hole drilling. the g73 cycle supports the use of through tool coolant, ensuring effective heat dissipation and lubrication. the cycle utilizes peck drilling techniques, retracting the tool periodically to clear chips and minimize tool deflection. Learn about the g73 g code command used in cnc machining. see it in an example g code program and get started with g73 today.
