Forces In Cartesian Vector Form

Forces In Cartesian Vector Form Question Solutions The following video goes through each example to show you how you can express each force in cartesian vector form. if you do not want to watch the video, you can read the steps below. Express each of the three forces acting on the support in cartesian vector form and determine the magnitude of the resultant force and its direction, measure.

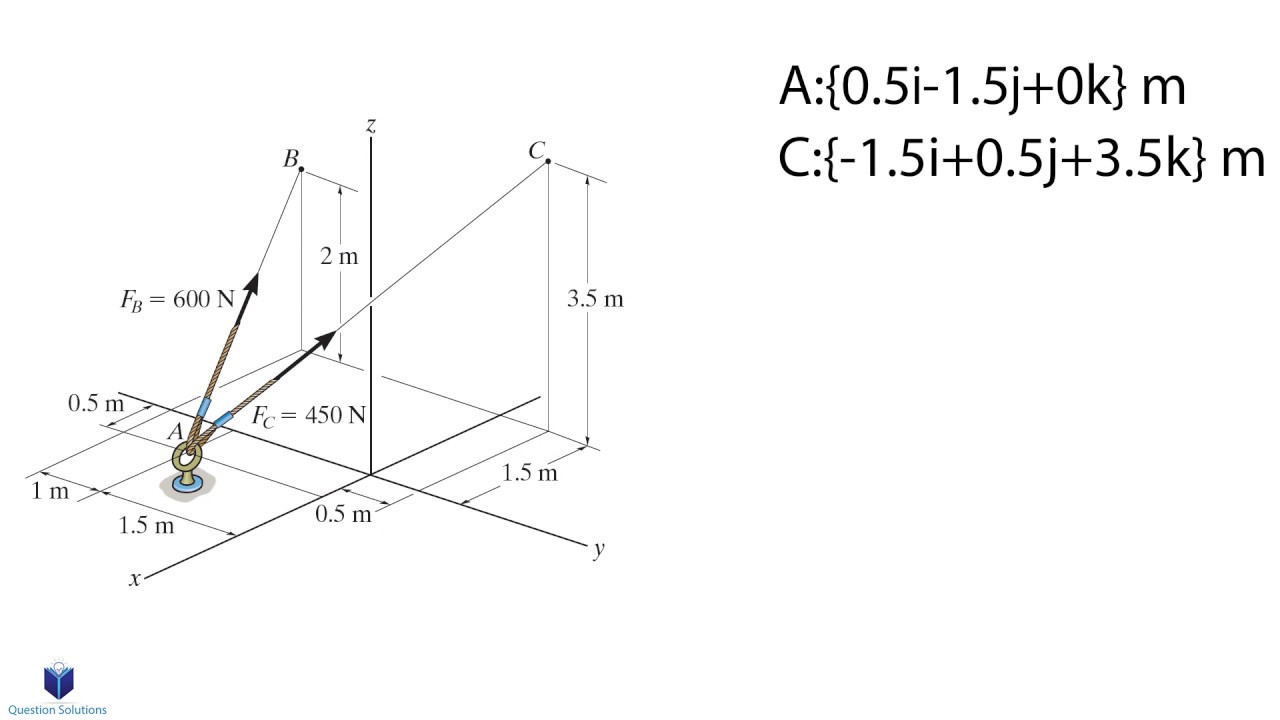

Forces In Cartesian Vector Form Question Solutions Imagine we have a force, $ \vec {f} $, and it points at some angle $ \theta $ from the x axis. how can we describe the amount of that force that is in the x direction or the y direction? let's say we didn't have the value for $ \theta $; how could we find it? let's keep going to find out. :). We have two tension forces we are trying to determine the resultant for. thus, we need the unit vectors along ab and ac to find the cartesian forces f a b → and f a c → f ab and f ac. Rectangular coordinate system: formed by 3 mutually perpendicular axes, the x, y, z axes, with unit vectors in these directions. the cables attached to the screw eye are subjected to the three forces shown. express each force vector using the cartesian vector form (components form). It includes examples of resolving forces using trigonometry and geometry, and demonstrates how to find the magnitude and direction angles of the resultant force. the final results show the cartesian representation of each force and the resultant force with its magnitude and angles.

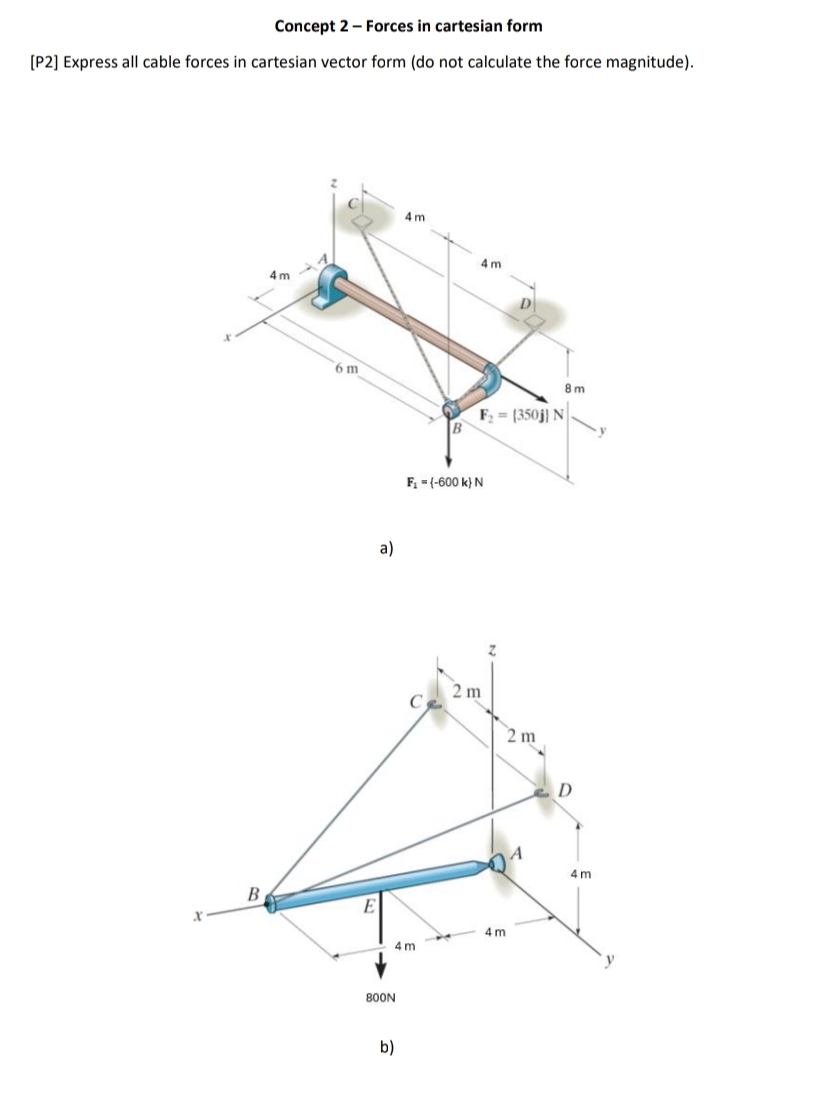

Solved Concept 2 ï Forces In Cartesian Form P2 ï Express Chegg Rectangular coordinate system: formed by 3 mutually perpendicular axes, the x, y, z axes, with unit vectors in these directions. the cables attached to the screw eye are subjected to the three forces shown. express each force vector using the cartesian vector form (components form). It includes examples of resolving forces using trigonometry and geometry, and demonstrates how to find the magnitude and direction angles of the resultant force. the final results show the cartesian representation of each force and the resultant force with its magnitude and angles. Plan: using geometry and trigonometry, write f and g in the cartesian vector form. then add the two forces. 2 38. express each of the three forces acting on the support in cartesian vector form and determine the magnitude of the resultant force and its direction, measured clockwise from positive x axis. Using geometry and trigonometry, write f1 and f2 in cartesian vector form. then add the two forces (by adding x and y components). Shows how to express a force in cartesian vector form. images from: hibbeler, r. c., s. c. fan, kai beng. yap, and peter schiavone. statics: mechanics for engineers. singapore: pearson,.
