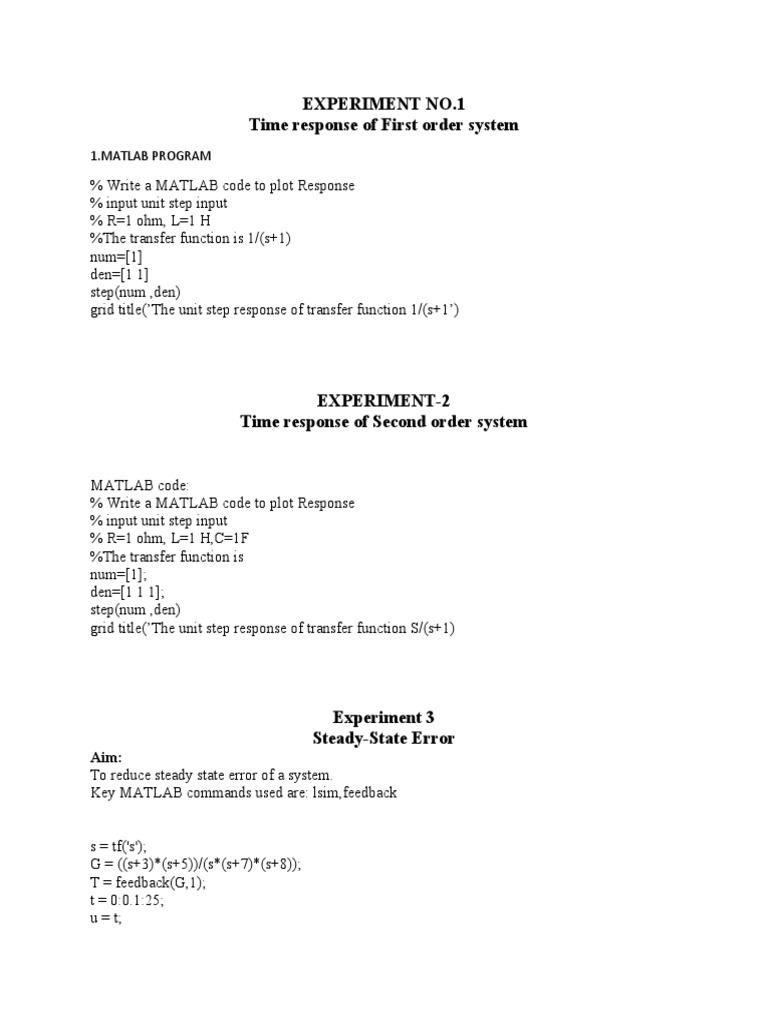

Experiment No 1 Time Response Of First Order System 1 Matlab Program The settling times for a first order system for the most common tolerances are provided in the table below. note that the tighter the tolerance, the longer the system response takes to settle to within this band, as expected. The document describes several experiments related to analyzing system dynamics and stability using matlab. experiment 1 generates a step response for a first order system.

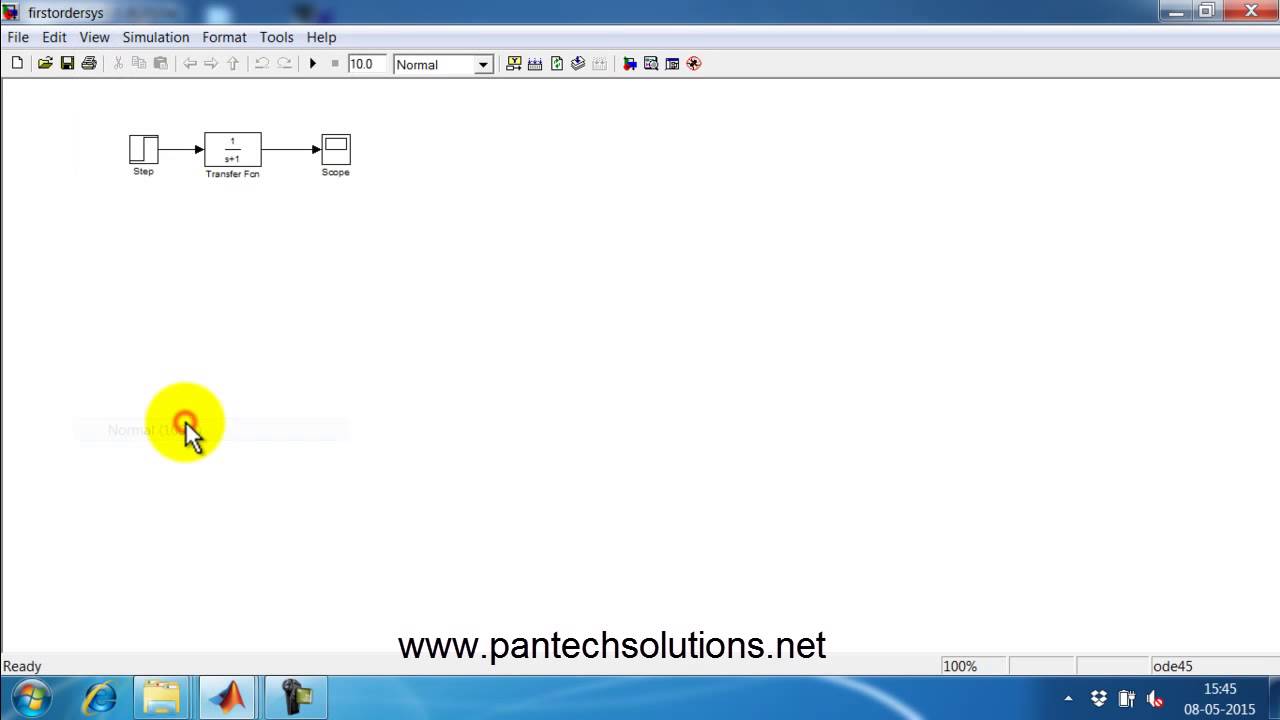

First Order System Pdf Function Mathematics Complex Number First order system: estimation of system properties order systems. if i give you the mathematical model of a system, then you can implement a proportional con roller and find the optimal kp. however, when you design a control system,. Your task is to write a program that performs the same function for first order control systems. we will consider three important aperiodic test signals: (1.) unit impulse (2.) unit step (3.) unit ramp. this will be specified as an additional parameter to your program. your program will then return:. In this video, you will learn how to simulate 1st order closed loop system with simulink. Explore first and second order system performance using matlab. learn about rc circuits, mass spring systems, and step responses.
First Order System 2002 Pdf Electronics Telecommunications In this video, you will learn how to simulate 1st order closed loop system with simulink. Explore first and second order system performance using matlab. learn about rc circuits, mass spring systems, and step responses. Description of first order system model and discussion of the response to a step function, the effect of varying the time constant of the system, and how to find the step response in matlab. the user can vary the r and c values of the circuit, and see the response of the circuit to a step function, the time constant, and the settling time. Having completed the simulink models for both the first and second order systems, it is now time to run a simple simulation and look at the results. we will start first with the first order system, and then show the simulation and results for the second order system. Introduction the system whose equation is a first order differential equation is called first order system. first order systems are systems, which means that they do not exhibit the property of inertia. first order systems themselves do not overshoot or oscillate. Define an inline function g for the right hand side of the first order system: note that g must be specified as a column vector using [ ; ] (not a row vector using [ , ]).
