Finfet Fabrication Process Siliconvlsi Finfet processing last updated 1 18 24 finfet transistors are fin like structures • dominant technology for large digital ic systems. The first step in the finfet fabrication process is to prepare the wafer that will be used to create the transistors. this typically involves cleaning the wafer and applying a layer of oxide to the surface.
Finfet Fabrication Process Siliconvlsi The finfet process technology is incompatible with planar mosfet process technology. moreover, since the development of finfet technology, there have been many technical challenges. This article delves into the intricate process of finfet fabrication, breaking it down into detailed steps to shed light on how these crucial components are brought to life. Finfet is built on the silicon substrate and the gate is surrounded by the channel forming drain and source. the name finfet is derived from the fin of fish as the top view of finfet drain and source appears like fin. fin can also be defined as the channel between the drain and the source. The major processing steps in patterning multiple fins using sadp technique include: (1) carbon hard mask or mandrel patterning; (2) offset spacer formation; and (3) silicon fin formation as described below.

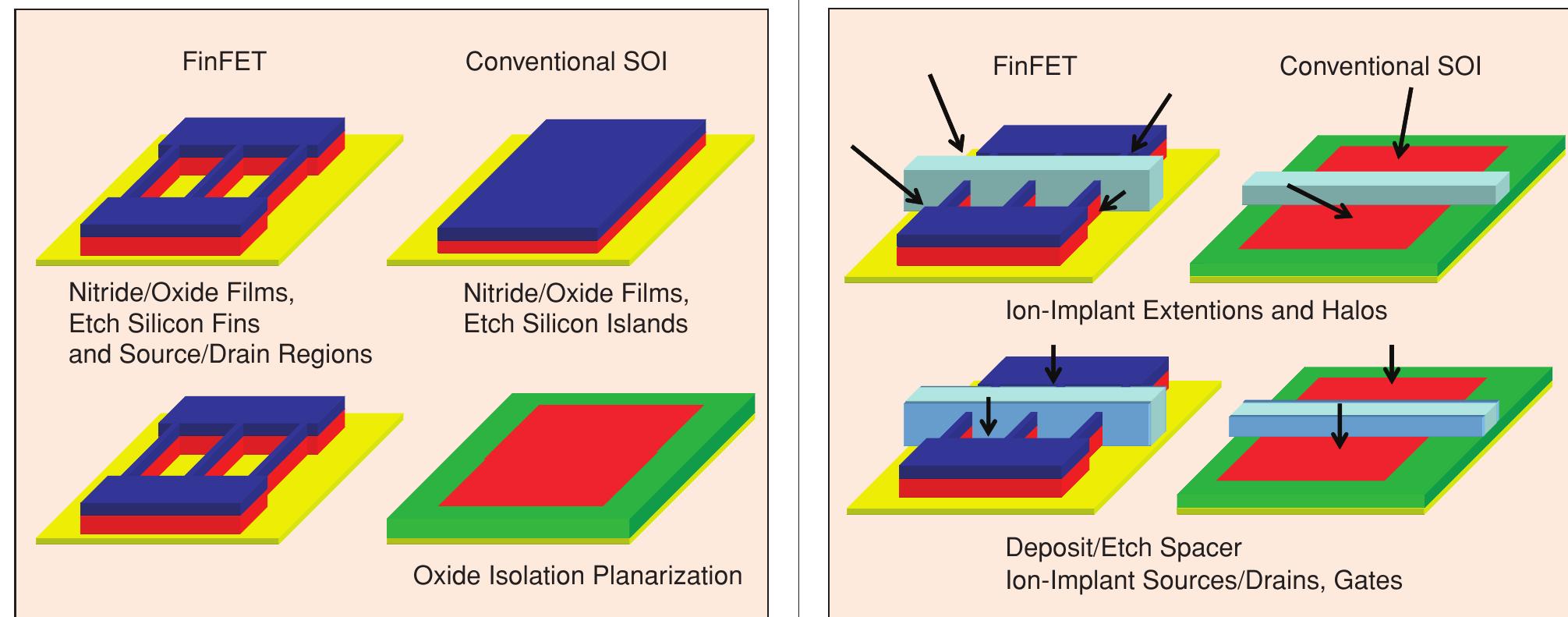

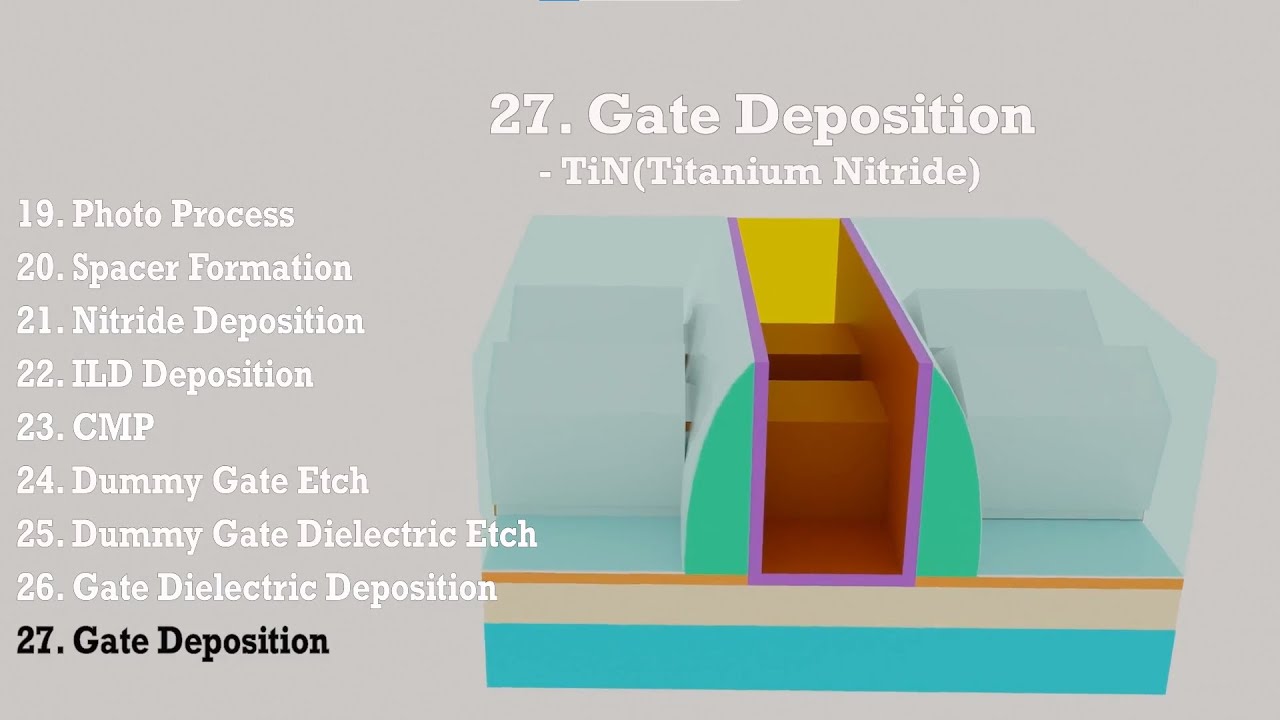

12 Finfet Process Flow Ii Reprinted With Permission From Finfet is built on the silicon substrate and the gate is surrounded by the channel forming drain and source. the name finfet is derived from the fin of fish as the top view of finfet drain and source appears like fin. fin can also be defined as the channel between the drain and the source. The major processing steps in patterning multiple fins using sadp technique include: (1) carbon hard mask or mandrel patterning; (2) offset spacer formation; and (3) silicon fin formation as described below. Learn how a finfet is built from a bulk silicon substrate with anisotropic etch, oxide deposition, and gate electrode. see the general layout and mode of operation of a finfet compared to a planar mosfet. This course provides a comprehensive overview of finfet process flow and strained si technique. you'll learn critical process concepts and purpose of each process step, equipping you with the state of the art knowledge and skills to enter the semiconductor foundries. After the front end processes (fin, gate, source, drain), the fabrication moves to the meol, which involves forming contacts to these regions. this is more complex in finfets than in planar technologies. This advanced course presents an accurate introducion to state of the art silicon fabrication as well as a detailed step by step description of a 10 7nm finfet fabrication process (both backend and front end pro cesses).
Fabrication Process Flow Of Ferroelectric Finfet Download Scientific Learn how a finfet is built from a bulk silicon substrate with anisotropic etch, oxide deposition, and gate electrode. see the general layout and mode of operation of a finfet compared to a planar mosfet. This course provides a comprehensive overview of finfet process flow and strained si technique. you'll learn critical process concepts and purpose of each process step, equipping you with the state of the art knowledge and skills to enter the semiconductor foundries. After the front end processes (fin, gate, source, drain), the fabrication moves to the meol, which involves forming contacts to these regions. this is more complex in finfets than in planar technologies. This advanced course presents an accurate introducion to state of the art silicon fabrication as well as a detailed step by step description of a 10 7nm finfet fabrication process (both backend and front end pro cesses).
Fabrication Process Flow Of Ferroelectric Finfet Download Scientific After the front end processes (fin, gate, source, drain), the fabrication moves to the meol, which involves forming contacts to these regions. this is more complex in finfets than in planar technologies. This advanced course presents an accurate introducion to state of the art silicon fabrication as well as a detailed step by step description of a 10 7nm finfet fabrication process (both backend and front end pro cesses).
