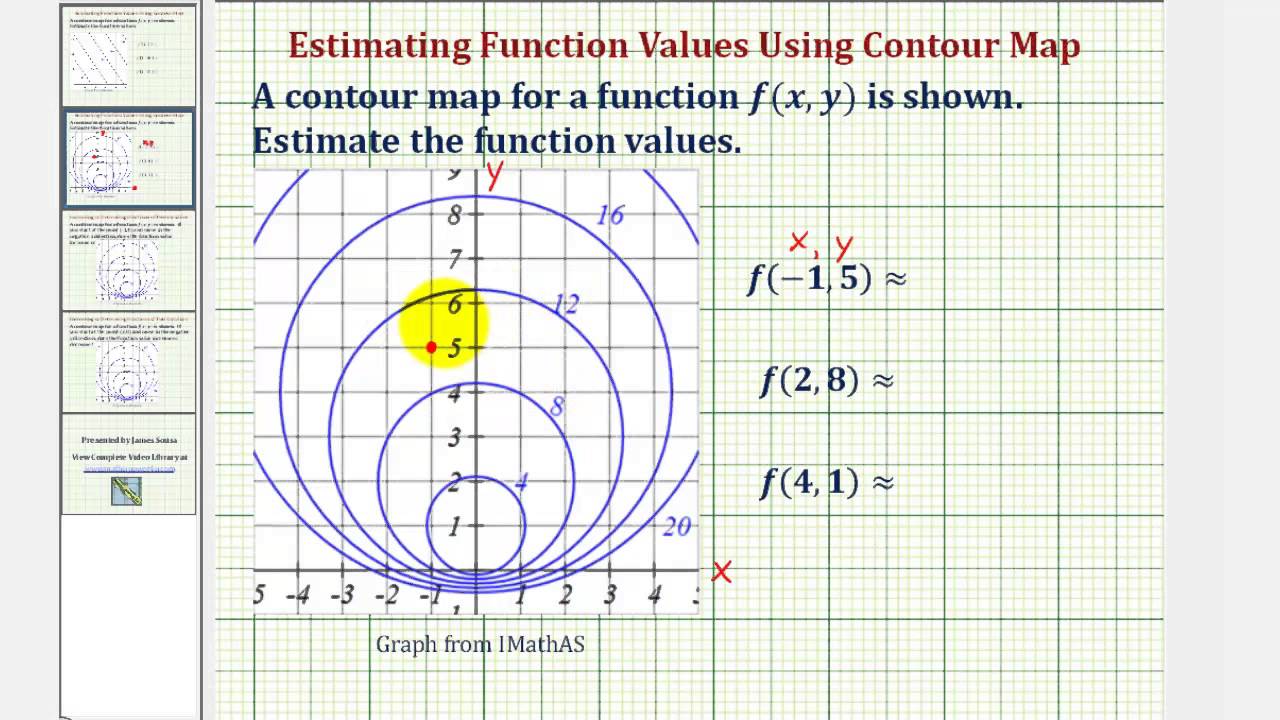

Ex 2 Determine A Function Value Using A Contour Map Physics Forums This video explains how to determine a function value for a function of two variables using a contour map. site: mathispower4u more. When drawing in three dimensions is inconvenient, a contour map is a useful alternative for representing functions with a two dimensional input and a one dimensional output.

Ex 2 Determine A Function Value Using A Contour Map Math Help From The video tutorial explains how to interpret contour maps for functions of two variables. it demonstrates how to determine whether function values increase or decrease when moving in specific directions on the map. Drawing several such lines for equally spaced levels we get what we will call a contour map. the contour map of the function from figure 2.2 is depicted in figure 2.3. The contour levels are marked with blue labels indicating function values such as 50, 100, 150, 200, and 250. the contour lines are diagonally oriented from the bottom left to the top right, aligning with increasing function values as you move diagonally upward to the right. Estimate f x(2,1) by looking at the change in the function value as you move one unit in the x direction along the contour line. if the contour interval is given, this change can be estimated by multiplying the contour interval by the slope of the tangent to the contour line.

Solved A Contour Map For A Function F Is Shown Use The Chegg The contour levels are marked with blue labels indicating function values such as 50, 100, 150, 200, and 250. the contour lines are diagonally oriented from the bottom left to the top right, aligning with increasing function values as you move diagonally upward to the right. Estimate f x(2,1) by looking at the change in the function value as you move one unit in the x direction along the contour line. if the contour interval is given, this change can be estimated by multiplying the contour interval by the slope of the tangent to the contour line. Interpreting contour diagrams match each of the following functions to their corresponding contour diagram. In the following figure, we show a conventional plot of a function graph on the left and the corresponding contour map on the right. in this map, colors are used to show different elevations, lighter colors at the higher elevations. One way to visualize functions of two variables z = f(x; y) is through their graphs. another type of visualization is through their contour diagrams or contour maps. S the graph of the function f(x;y) = sin(xy). we draw the contour map of f: the curve sin(xy) = c is xy = c, where c = arcsin(c) is a constant. the curves y = c=x are hyper.
