Sheet Metal Rectangular Tray Making Ourengineeringlabs The size of the given sheet is checked with the steel ruler. flatten the surface of the given sheet with a wooden mallet. check the dimensions of the g.i. sheet and remove excess material by using the pedestal shearing machine. mark all the measuring lines as per the given dimensions on the surface of the sheet by using the scriber. It includes dimensions and diagrams for each project, lists required materials and tools, and outlines the marking, cutting, bending, and joining steps to fabricate each item from galvanized iron sheet metal.

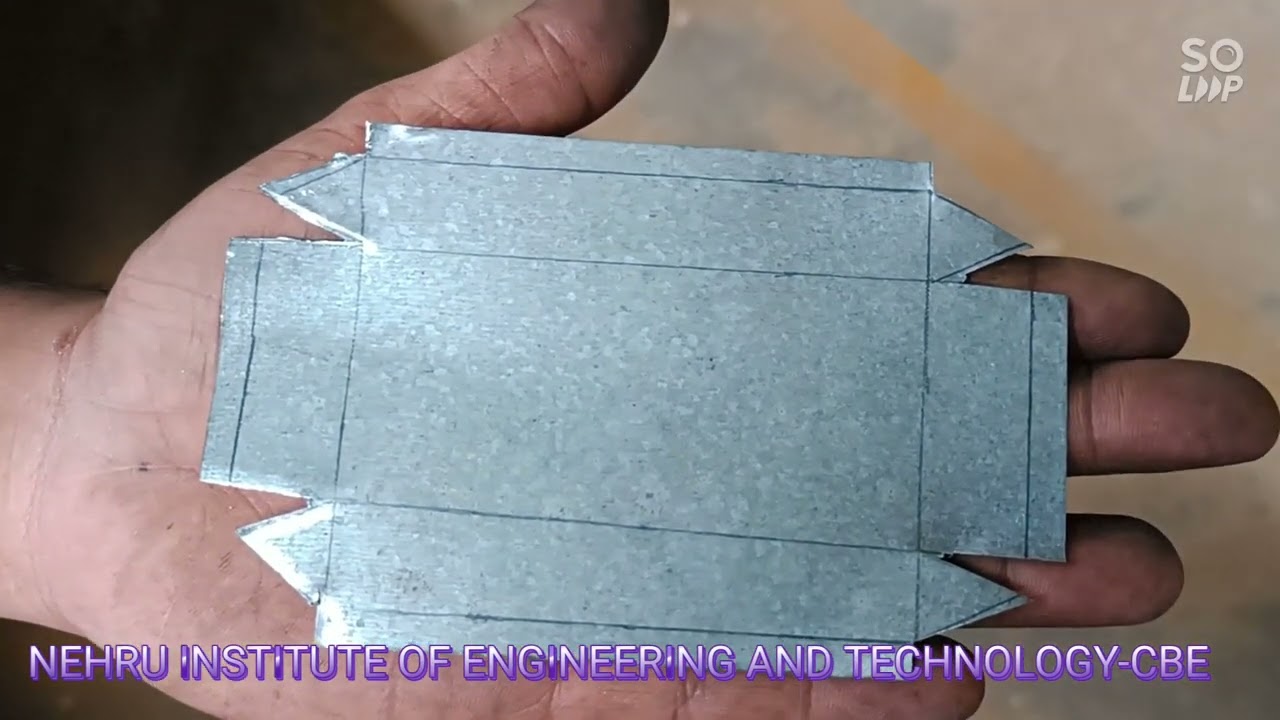

Offigam Stainless Steel Lab Instruments Rectangular 1pack 15 7x11 8x0 Enjoy the videos and music you love, upload original content, and share it all with friends, family, and the world on . It contains the procedure for the experiment 'rectangular tray making' along with pre and post lab questions, diagram and result. Procedure: study the given drawing check the work piece by steel rule. marking the work piece as per the given drawing by using steel rule and scriber. cut the work piece as per the drawing by using snips. file four sides of the work piece and make it correct dimensions. To fabricate a rectangular tray of dimensions 100 mm × 60 mm from a g.i. (galvanized iron) sheet using sheet metal tools and operations. forming tools: bench vice, stake, wooden mallet or.
A Schematic Of The Experiment Setup The Rectangular Tank Containing Procedure: study the given drawing check the work piece by steel rule. marking the work piece as per the given drawing by using steel rule and scriber. cut the work piece as per the drawing by using snips. file four sides of the work piece and make it correct dimensions. To fabricate a rectangular tray of dimensions 100 mm × 60 mm from a g.i. (galvanized iron) sheet using sheet metal tools and operations. forming tools: bench vice, stake, wooden mallet or. Aim: to make a rectangular tray, using the given sheet metal. tools: steel rule, try square, divider, scriber, straight snip, mallet, ball – peen hammer and hatchet stake. If you are really enjoying sheet metal work and want to go a step further after you make a tool tray, try designing a full tool box for this tray to sit in! in the following steps i'm going to walk you through making this sheet metal tool tray. For this the development of the article is first drawn on the sheet metal, then cut and folded, to form the required shape of the article. allowance should be given in the drawing stage for folding and bending. Remove the unwanted material by using a straight snip. fold the edges on the required sides by using a suitable stake. bend the sheet at required markings to get the shape using suitable stake and mallet. the rectangular tray of required dimensions is obtained.
Excavator Experiment Set Tray Educational Equipment Ltd Aim: to make a rectangular tray, using the given sheet metal. tools: steel rule, try square, divider, scriber, straight snip, mallet, ball – peen hammer and hatchet stake. If you are really enjoying sheet metal work and want to go a step further after you make a tool tray, try designing a full tool box for this tray to sit in! in the following steps i'm going to walk you through making this sheet metal tool tray. For this the development of the article is first drawn on the sheet metal, then cut and folded, to form the required shape of the article. allowance should be given in the drawing stage for folding and bending. Remove the unwanted material by using a straight snip. fold the edges on the required sides by using a suitable stake. bend the sheet at required markings to get the shape using suitable stake and mallet. the rectangular tray of required dimensions is obtained.
Labsheet Djj40163 Mom Mechanical Engineering Studocu For this the development of the article is first drawn on the sheet metal, then cut and folded, to form the required shape of the article. allowance should be given in the drawing stage for folding and bending. Remove the unwanted material by using a straight snip. fold the edges on the required sides by using a suitable stake. bend the sheet at required markings to get the shape using suitable stake and mallet. the rectangular tray of required dimensions is obtained.
