Electrical Warp Stop Motion Pdf Electrical warp stop motion free download as pdf file (.pdf), text file (.txt) or read online for free. how electrical warp stop motion is work in a loom with construction and working principle. In this class of warp stop motions the electric circuit is closed 15 when a warp thread breaks by the falling of a drop or circuit closing device normally supported by the unbroken.

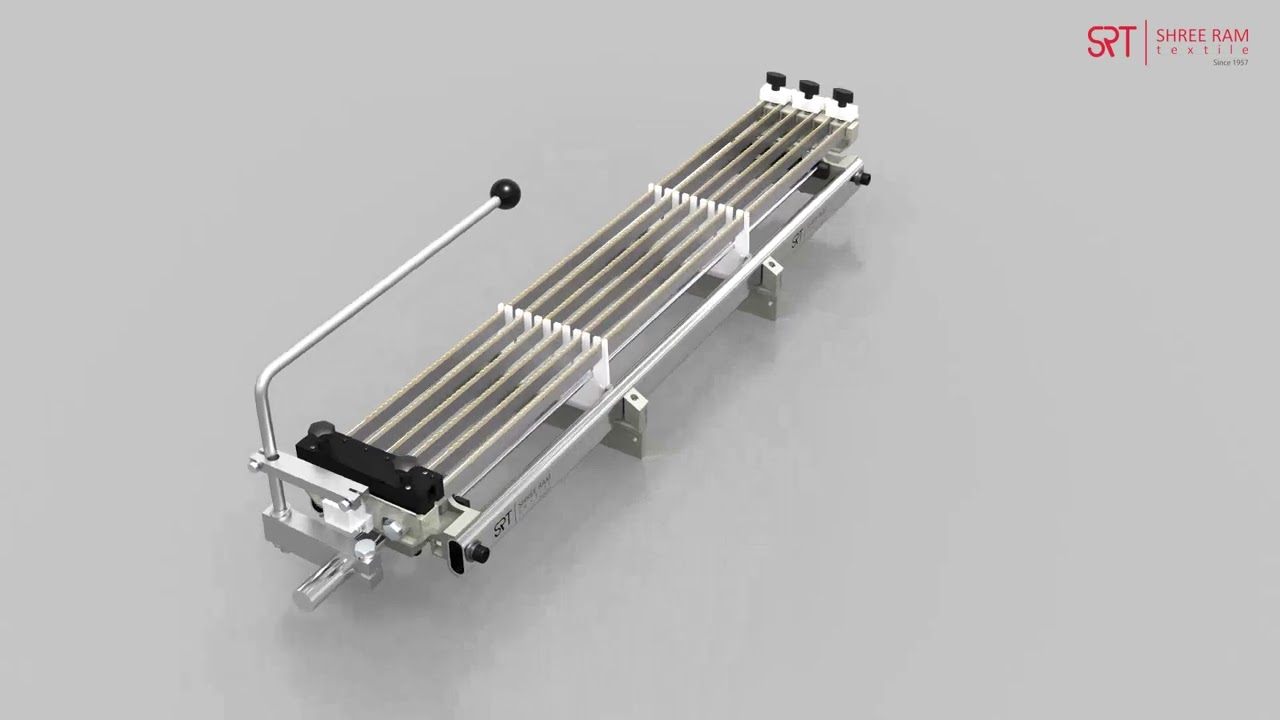

Warp Stop Motion Pdf It then explains the principles and objectives of electrical and sensor based warp stop motions. electrical warp stop motion works by stopping the loom when the electric circuit is activated due to a warp break. Features: the kfw 5600 warp stop motion is equipped with six contact bars with a pitch of 25 mm. extremely stable and wear resistant contact bars measuring 23 mm × 4 mm are available with serrated or unserrated inner bar. The study reveals that laser based warp stop motion provides instantaneous stopping of the loom upon yarn breakage, improving efficiency. compared to electrical systems, it reduces fire hazards associated with electrical sparks during operations. Two types of stop motions available; they are warp stop and weft stop. these stop motions are part of auxiliary or tertiary motion of a loom. the main purpose of this paper is to find.

Warp Stop Motion Pdf Weaving Laser The study reveals that laser based warp stop motion provides instantaneous stopping of the loom upon yarn breakage, improving efficiency. compared to electrical systems, it reduces fire hazards associated with electrical sparks during operations. Two types of stop motions available; they are warp stop and weft stop. these stop motions are part of auxiliary or tertiary motion of a loom. the main purpose of this paper is to find. Working principle of loose reed motion is shown in figure 9.11. the reed is supported by two baulks. the top baulk is fixed whereas the bottom one is loose. if the shuttle is trapped inside the shed, the reed experiences pressure when it moves towards the cloth fell for performing the beat up. This standard specifies the loom mechanical, electromechanical and electrical formula stop mechanism with basic dimensions menopause sheet, tolerances and marking. Controlled by electricity. in this class of warpstop motions the electric circuit is closed i5 when a warp thread breaks by the falling of a drop or circuit closing device normally sup ported by the unbroken warp thread. this closing of the circuit excites an electromag net therein, and the magnet acts through me 2o chanical devices to stop the. Warp stop motion diklasifikasikan dalam tiga kategori: 1. drop wire stop motions 2. harness stop motions 3. contactless electro optical stop motions. dengan drop wire dan harness stop motion, sinyal pemberhentian dapat ditransmisikan secara mekanik atau elektrik.

Pertemuan Ke 9 Drop Wire Warp Stop Motion Pdf Weaving Textile Arts Working principle of loose reed motion is shown in figure 9.11. the reed is supported by two baulks. the top baulk is fixed whereas the bottom one is loose. if the shuttle is trapped inside the shed, the reed experiences pressure when it moves towards the cloth fell for performing the beat up. This standard specifies the loom mechanical, electromechanical and electrical formula stop mechanism with basic dimensions menopause sheet, tolerances and marking. Controlled by electricity. in this class of warpstop motions the electric circuit is closed i5 when a warp thread breaks by the falling of a drop or circuit closing device normally sup ported by the unbroken warp thread. this closing of the circuit excites an electromag net therein, and the magnet acts through me 2o chanical devices to stop the. Warp stop motion diklasifikasikan dalam tiga kategori: 1. drop wire stop motions 2. harness stop motions 3. contactless electro optical stop motions. dengan drop wire dan harness stop motion, sinyal pemberhentian dapat ditransmisikan secara mekanik atau elektrik.
