Online Lab Electric Fields And Potentials 2 Pdf Pdf Electric Field In this experiment you will map a cross section of the 3 d electric field by measuring equipotential lines on a plane of black paper. these lines are defined by the intersection of a plane with equipotential surfaces. Explore electric fields and potentials with this lab manual. experiments, data analysis, and equipotential mapping included.
Physics Lab 2 Electric And Potential Fields Experiment Report Studocu Students will create electric dipole and parallel plate configurations using conductive ink and measure equipotential lines with a multimeter. they will then plot field lines and answer questions about field strength and potential variation with distance. We will explore the relationship between equipotential surfaces and electric field lines and use this to construct a map of the electric fields surrounding various distributions of charge such as the electric dipole, parallel plate capacitor and coaxial cables. A charge, for example, creates an electric field around it, which can then exert a force on a second charge which enters that field. in this lab we will study another way of thinking about this interaction through electric potentials. Physics 221 lab report 3 nishant patel instructor – karen marin experiment 3: electric fields and potentials introduction in this lab, we will measure the changes in electric potential (v) and we will find out the connection between the electric field lines and the equipotential surface.
Lab 1 Electric Charges Potentials And Fields Lab Report General A charge, for example, creates an electric field around it, which can then exert a force on a second charge which enters that field. in this lab we will study another way of thinking about this interaction through electric potentials. Physics 221 lab report 3 nishant patel instructor – karen marin experiment 3: electric fields and potentials introduction in this lab, we will measure the changes in electric potential (v) and we will find out the connection between the electric field lines and the equipotential surface. This experiment is designed to show the nature of the equipotentials and electric field lines associated with the parallel plate capacitor, and the various electrode configurations, such as the electric dipole. In this experiment, you will measure electric potential and use those measurements to plot both equipotential lines and electric field lines for two configurations of charges. These two concepts are intimately related, and we will explore both of them in this lab exercise. the electric field is defined to be the force per unit charge at a given point in space. In this lab, we will determine the electric potential due to three diferent charge distributions and infer their corresponding electric fields. in calculus you learned about the concept of a gradient. the connection between the electric field and electric potential is through the gradient.

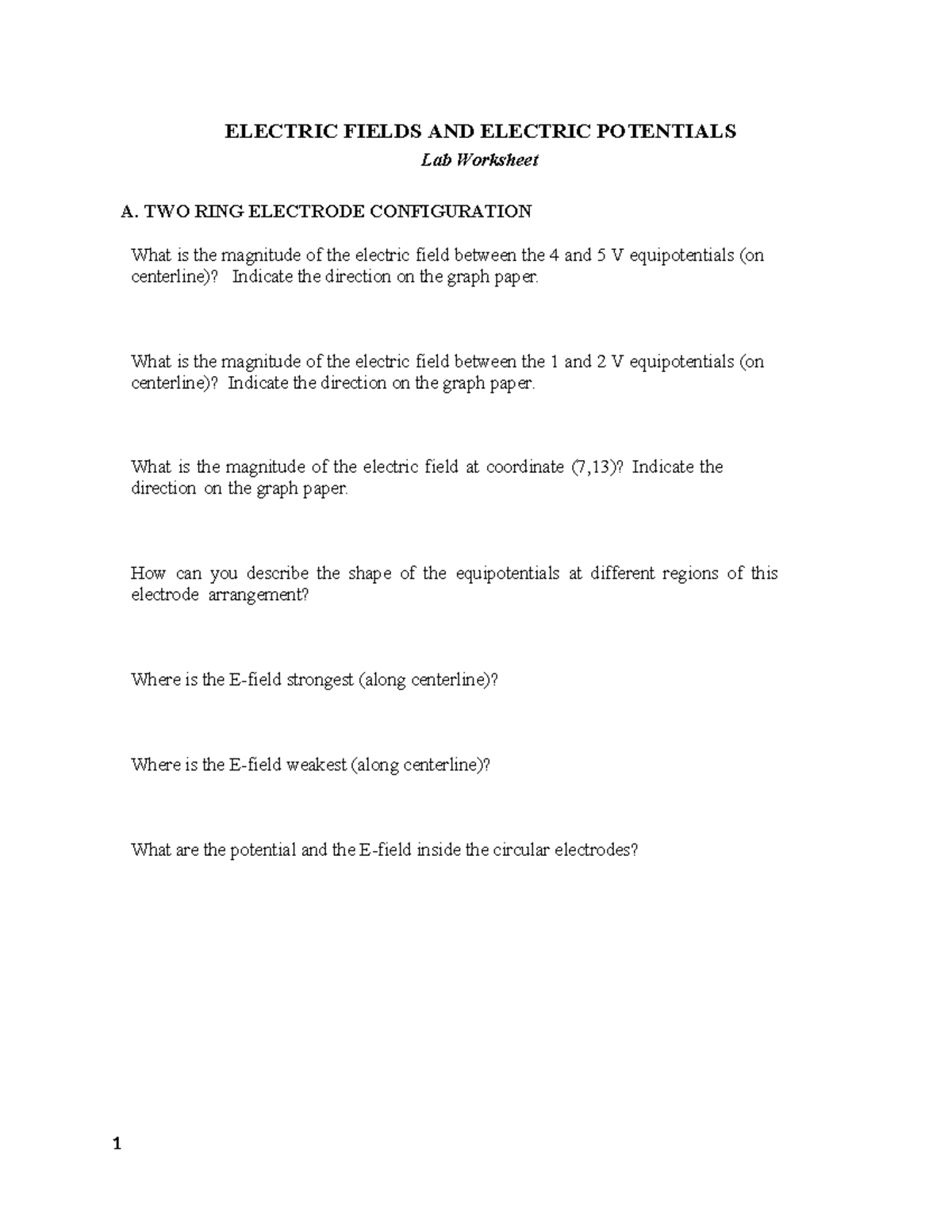

1w Electric Fields And Electric Potentials Worksheet Electric Fields This experiment is designed to show the nature of the equipotentials and electric field lines associated with the parallel plate capacitor, and the various electrode configurations, such as the electric dipole. In this experiment, you will measure electric potential and use those measurements to plot both equipotential lines and electric field lines for two configurations of charges. These two concepts are intimately related, and we will explore both of them in this lab exercise. the electric field is defined to be the force per unit charge at a given point in space. In this lab, we will determine the electric potential due to three diferent charge distributions and infer their corresponding electric fields. in calculus you learned about the concept of a gradient. the connection between the electric field and electric potential is through the gradient.
