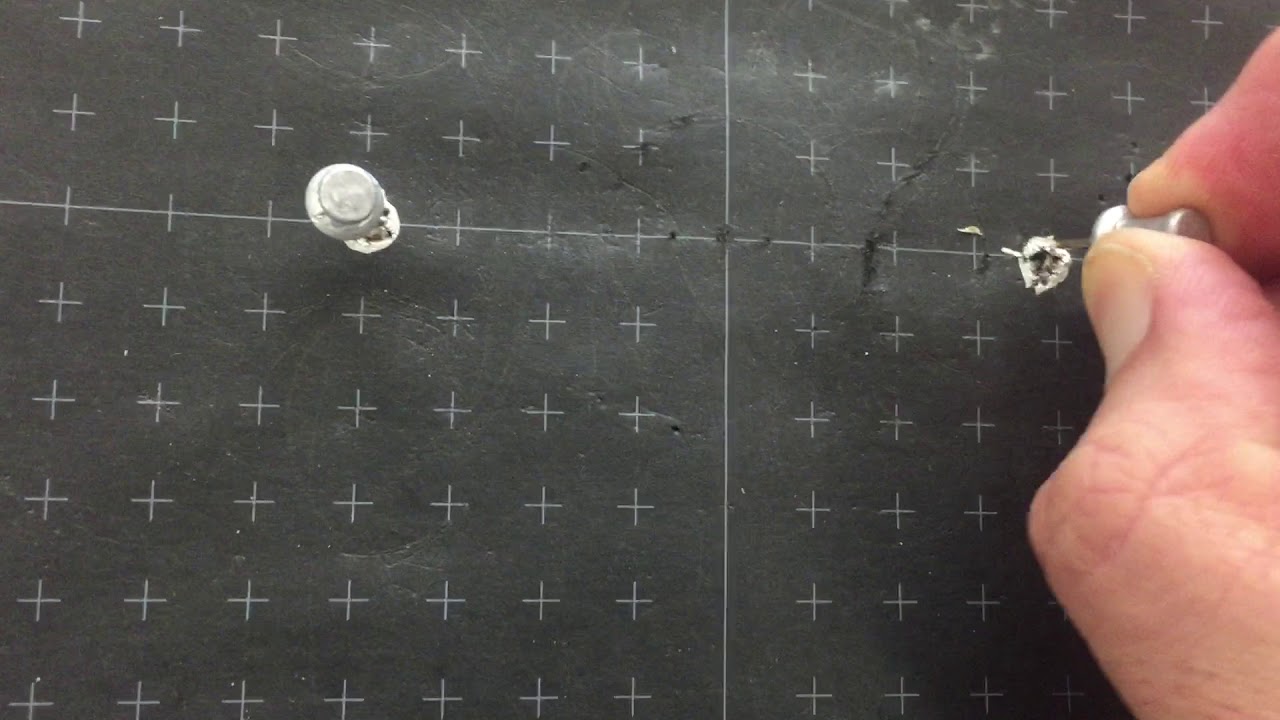

Electric Field Mapping Pdf Electric Charge Electricity The purpose of this experiment is to map invisible electric fields using conductive paper, a voltage source, and probes to measure potential differences on the paper, which are always perpendicular to electric field lines showing force direction and strength. For each case, you will use those surfaces to determine the electric field lines. to prepare for what you will see, sketch the expected equipotential surfaces surrounding the following charges.

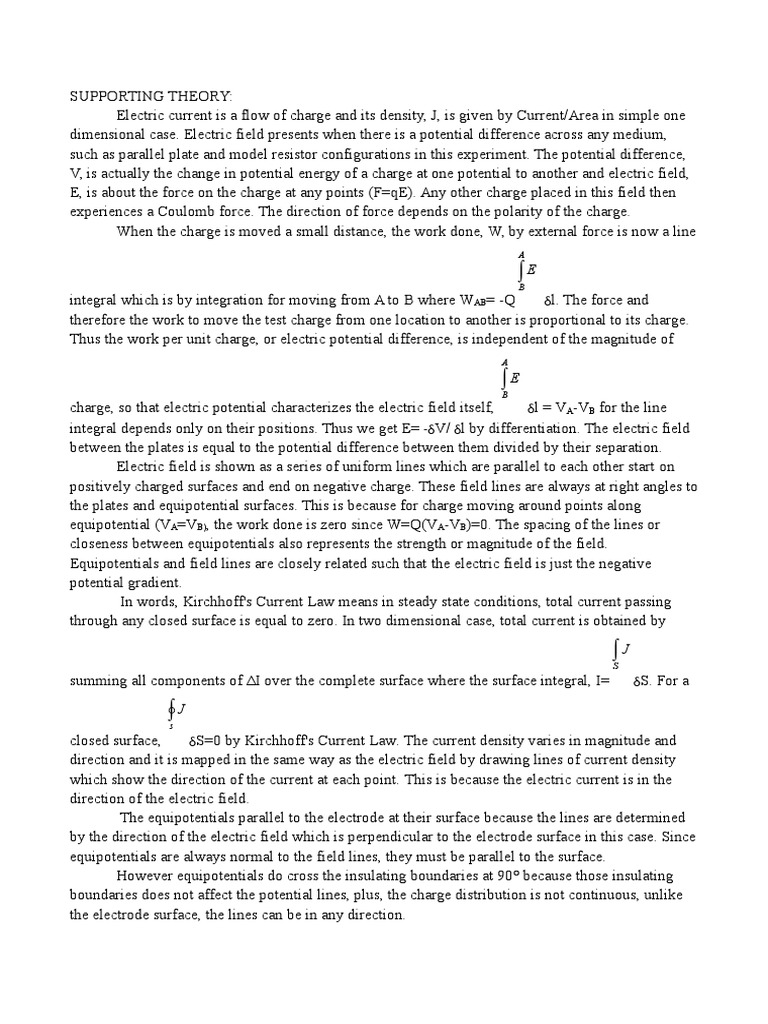

Electromagnetic Field Mapping Pdf Electric Charge Electric Field Draw electric eld lines per pendicular to your equipotential lines, putting lines closer together where the electric eld is stronger. include arrows on the eld lines to show the direction of the electric eld. Electric field mapping free download as pdf file (.pdf), text file (.txt) or read online for free. 1) this document describes an experiment to map electric field lines and equipotential lines near charged electrodes. To visualize the electrostatic potentials and fields in some physically interesting situations. our goal is to explore the electric potential in the region of space around some conductors of specified shape, which are held at specified potentials by batteries or some such device. Electric field mapping ving both magnitude and direction. it's magnitude is propor tional to the force felt by a unit positive charge, and its direct on is the direction of this force. motion of a charged object in or opposite the direction of the eld res.
Electric Field Mapping At John Macdonald Blog To visualize the electrostatic potentials and fields in some physically interesting situations. our goal is to explore the electric potential in the region of space around some conductors of specified shape, which are held at specified potentials by batteries or some such device. Electric field mapping ving both magnitude and direction. it's magnitude is propor tional to the force felt by a unit positive charge, and its direct on is the direction of this force. motion of a charged object in or opposite the direction of the eld res. In this experiment we will best utilize equipotential lines to draw electric field lines. however, let us first learn how electric field and electric potentials are related to each other. Use the principles of electric fields and electric potential energy to experimentally determine the lines of equal electric potential (isolines) surrounding oppositely charged electrodes and the shape and direction of the electric field lines in each configuration. The procedure below gives details of the apparatus used in this experiment to map out equal potential lines, and thus the electric field. try to anticipate the features of the equipotential lines within your group before the experiment is completed. Expt 5 electric field mapping free download as pdf file (.pdf), text file (.txt) or read online for free. the document outlines experiment 5 of the physics for engineers lab, focusing on electric field mapping.
