Electric Field And Electric Potential Lab Report Example Purpose: the purpose of this lab was to begin understanding and experimenting with electrical potentials and examining electrical fields, from their directions to their strengths and their behavior. University physics lab report on measuring electric fields and potential using conductive paper. includes data, analysis, and conclusions for physics 212.

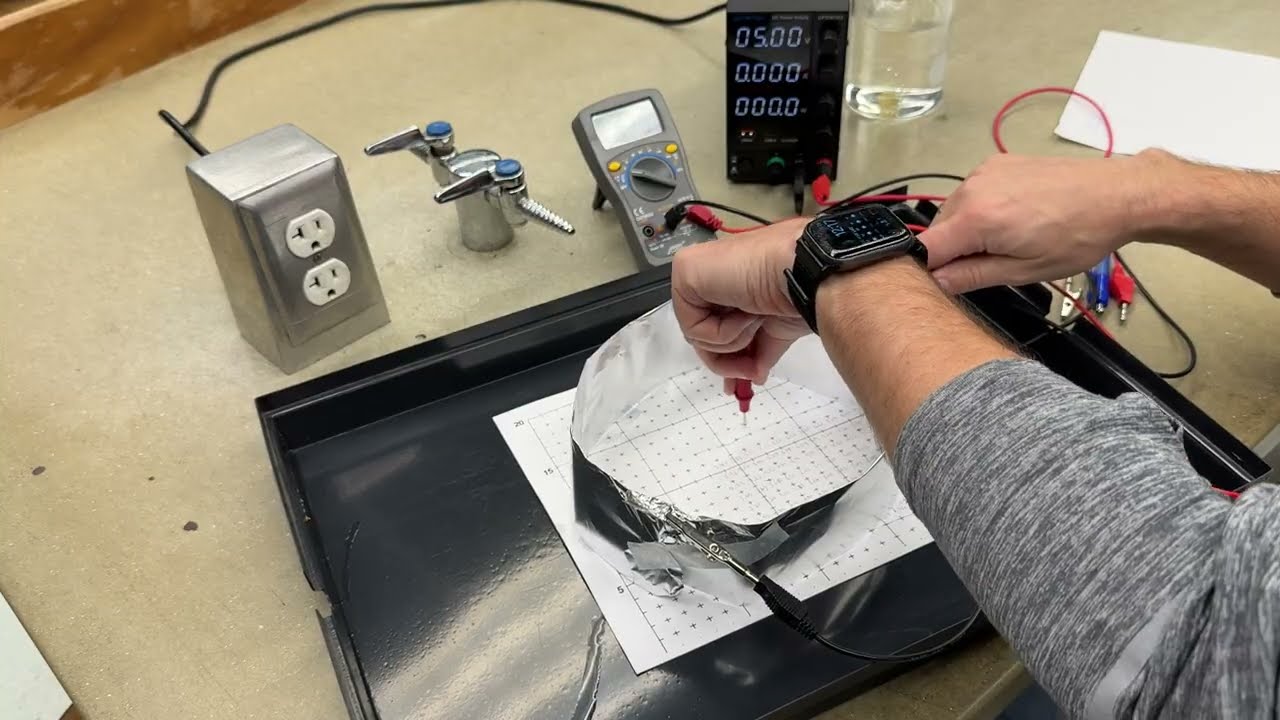

Electric Field And Electric Potential Physics Lab 3 Lab 4 Pdf This report details an experiment investigating the relationship between electric potential and electric field using conductive paper. it compares expected and actual equipotential lines and field lines, confirming theoretical predictions while noting minor discrepancies due to experimental limitations. In this laboratory experiment, the focus will be on the examination of the equipotential and electric fields around the charges by utilizing an electric dipole. in order to enhance our comprehension of the mutual influence they impose; we examine coulomb's law. In this lab, we will determine the electric potential due to three diferent charge distributions and infer their corresponding electric fields. in calculus you learned about the concept of a gradient. the connection between the electric field and electric potential is through the gradient. Using conductive paper, a power supply, and a dmm, we were able to make points and see how electric field lines are always perpendicular to equipotential lines. the goal of the experiment was to confirm different concepts by physically mapping them.
Mapping Electric Fields And Potential A Hands On Lab Guide Course Hero In this lab, we will determine the electric potential due to three diferent charge distributions and infer their corresponding electric fields. in calculus you learned about the concept of a gradient. the connection between the electric field and electric potential is through the gradient. Using conductive paper, a power supply, and a dmm, we were able to make points and see how electric field lines are always perpendicular to equipotential lines. the goal of the experiment was to confirm different concepts by physically mapping them. The electric field is defined to be the force per unit charge at a given point in space. the way we think about measuring the electric field is to take a very small positive test charge, q0, and measure the force on it due to the source charges around it. Use the virtual voltmeter and radial position grid to measure the potential as a function of position for a few locations and create a plot of the potential vs. r. use this to establish the electric field function for a point charge. We will explore the relationship between equipotential surfaces and electric field lines and use this to construct a map of the electric fields surrounding various distributions of charge such as the electric dipole, parallel plate capacitor and coaxial cables. In this experiment, you will measure electric potential and use those measurements to plot both equipotential lines and draw the corresponding electric field lines for two configurations.
