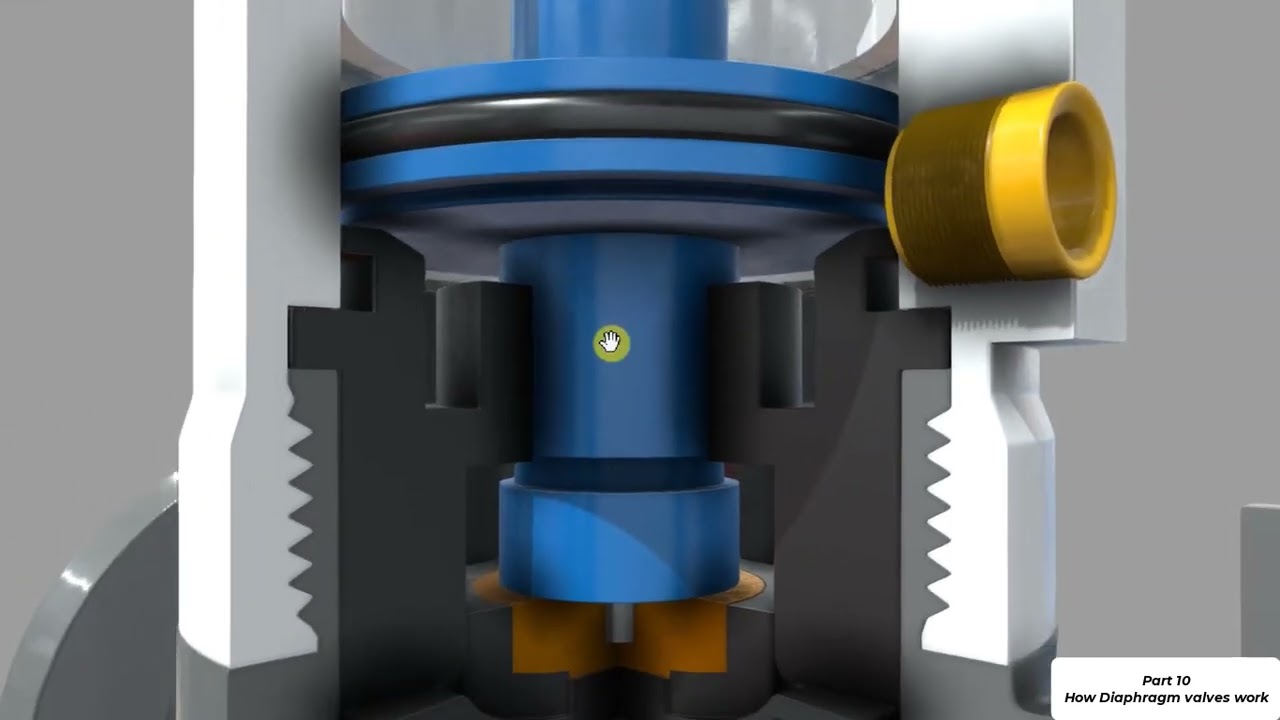

How Diaphragm Valve Working In Depth Exploration Of Flow Control Enjoy the videos and music you love, upload original content, and share it all with friends, family, and the world on . The diaphragm valve controls the fluid flow rate by shifting the diaphragm’s position. the valve closes, and the flow is stopped when the diaphragm presses firmly against its seat. these valves use a linear movement mechanism to regulate and control the fluid flow.
How Diaphragm Valve Working In Depth Exploration Of Flow Control This guide is written to help you read a diaphragm valve diagram more efficiently, compare weir and straight through designs, interpret typical labels and callouts, and use the drawing for selection, leakage diagnosis, replacement planning, and project communication. They are used to control different types of fluids. there are multiple types of valves, and a diaphragm valve is one of them. diaphragm valves are used for closing, opening, and throttling the fluid flow. this article mainly explains diaphragm valve working, types, parts, and many other aspects. Explore the complete guide to diaphragm valves, including how they work, key types, advantages, disadvantages, and selection tips for various industries. A diaphragm valve is a type of flow control valve that uses a flexible membrane to start, stop, or regulate fluid moving through a pipe. unlike ball valves or gate valves that rely on metal to metal contact, the diaphragm itself acts as the seal, pressing down against a seat inside the valve body.
Diaphragm Valves Vs Other Valve Types A Comparative Analysis Explore the complete guide to diaphragm valves, including how they work, key types, advantages, disadvantages, and selection tips for various industries. A diaphragm valve is a type of flow control valve that uses a flexible membrane to start, stop, or regulate fluid moving through a pipe. unlike ball valves or gate valves that rely on metal to metal contact, the diaphragm itself acts as the seal, pressing down against a seat inside the valve body. A diaphragm valve, or membrane valve, consists of a valve body with two or more ports, a flexible diaphragm, and a weir, saddle, or seat upon which the diaphragm closes the valve. Diaphragm valves work by changing the position of the diaphragm: when the diaphragm is pushed tightly against the valve seat, it completely stops the flow of fluid. when the diaphragm is lifted, the valve allows fluid to pass through and can also regulate the flow rate. Think of it as a barrier valve. all the operating components—the stem, the threads, the handwheel—are completely isolated from the fluid. when you turn the handle or trigger an actuator, it simply pushes the diaphragm down until it seals against the weir. lift it, and the path is open. What is a diaphragm valve? diaphragm valves use a flexible diaphragm that seals against the valve seat to control the flow of fluid in a piping system.
Diaphragm Valves Manufacturers In India United Valves A diaphragm valve, or membrane valve, consists of a valve body with two or more ports, a flexible diaphragm, and a weir, saddle, or seat upon which the diaphragm closes the valve. Diaphragm valves work by changing the position of the diaphragm: when the diaphragm is pushed tightly against the valve seat, it completely stops the flow of fluid. when the diaphragm is lifted, the valve allows fluid to pass through and can also regulate the flow rate. Think of it as a barrier valve. all the operating components—the stem, the threads, the handwheel—are completely isolated from the fluid. when you turn the handle or trigger an actuator, it simply pushes the diaphragm down until it seals against the weir. lift it, and the path is open. What is a diaphragm valve? diaphragm valves use a flexible diaphragm that seals against the valve seat to control the flow of fluid in a piping system.
Diaphragm Valves Manufacturers In India United Valves Think of it as a barrier valve. all the operating components—the stem, the threads, the handwheel—are completely isolated from the fluid. when you turn the handle or trigger an actuator, it simply pushes the diaphragm down until it seals against the weir. lift it, and the path is open. What is a diaphragm valve? diaphragm valves use a flexible diaphragm that seals against the valve seat to control the flow of fluid in a piping system.
