Diode Circuits 03 Class Notes Pdf Germanium diodes are more sensitive to temperature variations than silicon diodes. We will learn to analyze and design circuits using semiconductor devices – diodes and transistors our primary focus will be discrete, analog circuits discrete circuits: built using individual discrete components (transistors, diodes, rs, ls, cs) not integrated circuits (ics), though we will be laying the foundation for ic design.
Diode Notes Pdf Diode P N Junction Analyze nonlinear circuits using the graphical load line technique. analyze and design simple voltage regulator circuits. solve circuits using the ideal diode model and piecewise linear models. understand various rectifier and wave shaping circuits. understand small signal equivalent circuits. Diode circuit analysis * in dc situations, for each diode in the circuit, we need to establish whether it is on or off, replace it with the corresponding equivalent circuit, and then obtain the quantities of interest. Diode introduction a diode is a non linear element. to a very good approximation, the current through the diode is exponentially related to the voltage across the diode. in most of today's lecture, we will excite the diode with \large" signals and therefore we cannot use the small signal model. Di means two and ode means electrode. so physical contact of two electrodes is known as diode and its important function is alternative current to direct current.

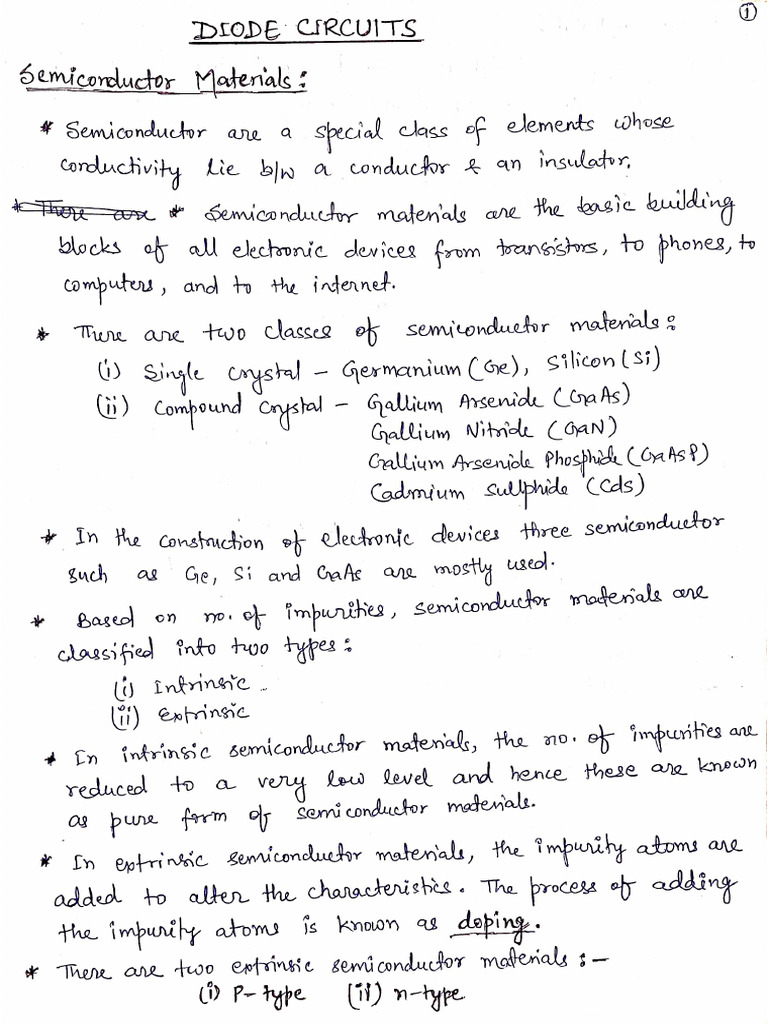

Diode Circuits Handwritten Notes Pdf This resource contains information on diodes, ideal diode model, full diode model, offset voltage model, half wave rectifier, full awve rectifier, and zener diode. freely sharing knowledge with learners and educators around the world. learn more. Diode circuits notes (1) free download as pdf file (.pdf), text file (.txt) or read online for free. the document provides notes on diode circuits, covering topics such as p n junction diodes, i v characteristics, and various rectifier types (half wave and full wave). (input wave form) (half wave rectifier circuit) (output voltage wave) (output current) circuit details: the above fig shows the circuit where a single crystal diode acts as a half wave rectifier. The circuit symbol (or graphic symbol) for a diode is an arrowhead and bar, (fig. 1 10). the arrowhead indicates the conventional direction of current flow when the diode is forward biased, (from the positive terminal through the device to the negative terminal).
Diode Notes Pdf (input wave form) (half wave rectifier circuit) (output voltage wave) (output current) circuit details: the above fig shows the circuit where a single crystal diode acts as a half wave rectifier. The circuit symbol (or graphic symbol) for a diode is an arrowhead and bar, (fig. 1 10). the arrowhead indicates the conventional direction of current flow when the diode is forward biased, (from the positive terminal through the device to the negative terminal).
