Difference Between Core Type And Shell Type Transformer With One of the major differences between the core type and the shell type transformers is that in core type transformer, the winding encircles the core, whereas, in shell type transformer, the core encircles the windings of the transformer. This article compares core and shell type transformers, highlighting their key differences in construction, application, and performance.

Difference Between Core Type And Shell Type Transformer Electrical Exam As discussed earlier, in core type transformers, the winding surrounds the core whereas in shell type transformers the winding surrounds the middle limb of the core and side limbs surrounds the windings. the core type transformers are easier to dismantle and repair. Core type and shell type transformers are different designs of transformers. in a core type transformer, the primary and secondary windings are wound around a laminated iron core, while in a shell type transformer, the core surrounds the windings. Depending on the type of construction used, the transformers are classified into two categories. in core type construction, as shown in the figure, the coils are wound around the two limbs of a rectangular magnetic core. The following table keys out the main differences between core and shell type transformers. difference between core type and shell type transformer.

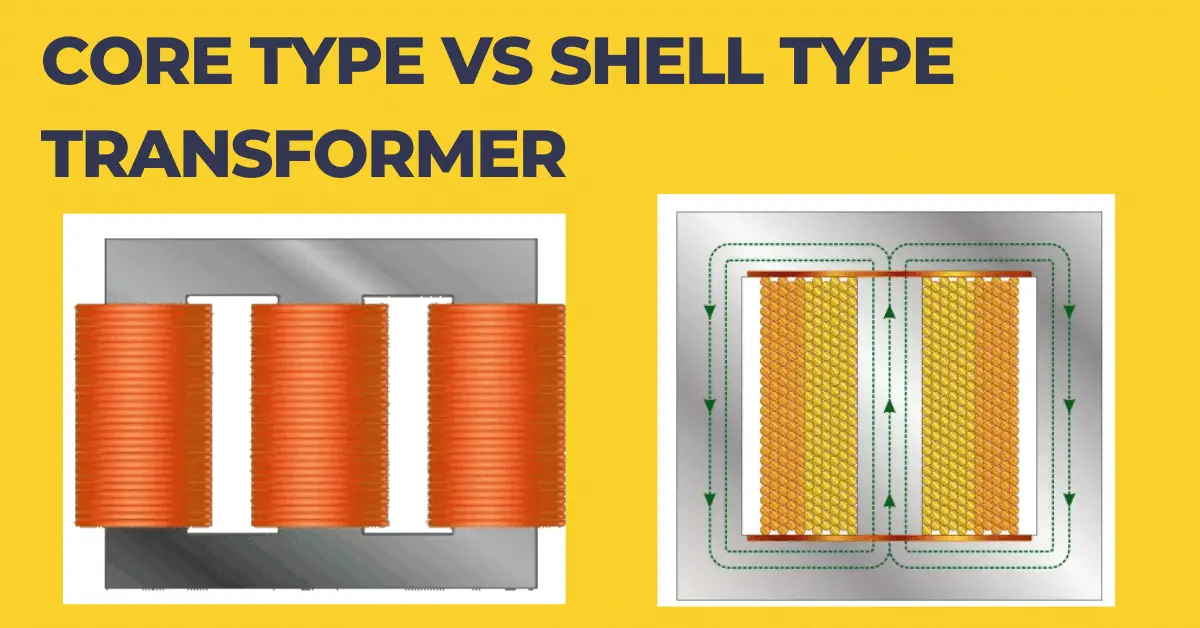

Core Type Vs Shell Type Transformer Difference And Comparison Depending on the type of construction used, the transformers are classified into two categories. in core type construction, as shown in the figure, the coils are wound around the two limbs of a rectangular magnetic core. The following table keys out the main differences between core and shell type transformers. difference between core type and shell type transformer. In a shell type transformer, the core encircles the windings of the transformer. the central limb of the core carries the entire flux and the side limb of the transformer carries half of the flux. hence the width of the central limb is two times the side limbs. In today’s post, we will have a detailed look at both core and shell types of transformers do compare them to find their differences. so let’s get started with the difference between core type and shell type transformer. Check the classification of the transformer for more detail. in a tabular form, you can learn the topmost 16 different points for core type transformer vs shell type transformer. Core type transformer uses concentric cylindrical winding whereas the shell type transformer uses sandwiched winding. it is also noted that in a core type transformer, winding surrounds the core whereas, in a shell type transformer, the core surrounds the winding.

Difference Between Core Type And Shell Type Transformer In a shell type transformer, the core encircles the windings of the transformer. the central limb of the core carries the entire flux and the side limb of the transformer carries half of the flux. hence the width of the central limb is two times the side limbs. In today’s post, we will have a detailed look at both core and shell types of transformers do compare them to find their differences. so let’s get started with the difference between core type and shell type transformer. Check the classification of the transformer for more detail. in a tabular form, you can learn the topmost 16 different points for core type transformer vs shell type transformer. Core type transformer uses concentric cylindrical winding whereas the shell type transformer uses sandwiched winding. it is also noted that in a core type transformer, winding surrounds the core whereas, in a shell type transformer, the core surrounds the winding.

Difference Between Core Type And Shell Type Transformer Check the classification of the transformer for more detail. in a tabular form, you can learn the topmost 16 different points for core type transformer vs shell type transformer. Core type transformer uses concentric cylindrical winding whereas the shell type transformer uses sandwiched winding. it is also noted that in a core type transformer, winding surrounds the core whereas, in a shell type transformer, the core surrounds the winding.
