Star Delta Transformation And Delta Star Transformation Pdf Solution: in the given circuit 6 , 6 and 18 connected (5) between a,b and c are in delta connection, convert this into star network. the details are as shown in figure 3 (6) ra. 4.1 star – delta and delta –star conversions these methods of conversions may be used for solving complicated networks having number of branches.
L8 Star Delta Transformation Pdf Specifically, it provides the mathematical formulas to transform a star network into an equivalent delta network and vice versa. the key formulas are: 1) to transform a delta network to a star network, each star impedance is calculated based on the delta impedances. Star delta transformation or delta star transformation: it is a mathematical technique to simplify the analysis of an electrical network. Download as a pdf or view online for free. Star delta transformation : in solving complicated networks , it is necessary to transform from star to delta or from delta to star as shown below . a ra rc rb b.
Star Delta Connection Pdf Diagram Board Download as a pdf or view online for free. Star delta transformation : in solving complicated networks , it is necessary to transform from star to delta or from delta to star as shown below . a ra rc rb b. Star delta star transformations free download as word doc (.doc .docx), pdf file (.pdf), text file (.txt) or read online for free. We know that two star and delta arrangements are said to be electrically equal if and only if the impedances across any pair of terminals in both cases are equal. This work provides new expressions for the delta star transformation relevant to reliability evaluation of complex systems. Nterconnection can be shaped to look like the letter y. the (y) configuration also is referred to as tee (t) structure without disturbing the electrical equivalence of the two structures and delta (Δ)in whic.

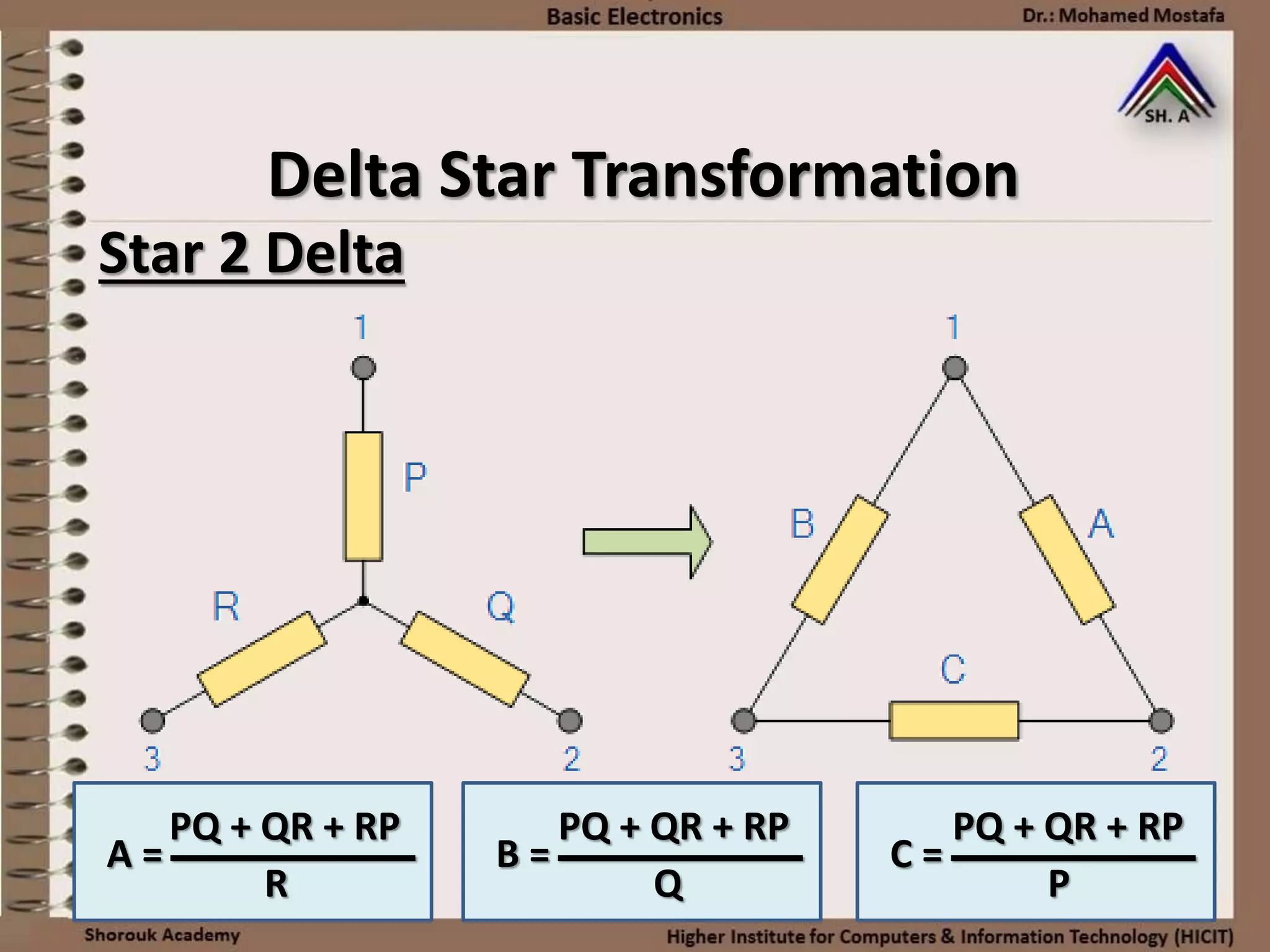

3 Delta Star Transformation Pptx Star delta star transformations free download as word doc (.doc .docx), pdf file (.pdf), text file (.txt) or read online for free. We know that two star and delta arrangements are said to be electrically equal if and only if the impedances across any pair of terminals in both cases are equal. This work provides new expressions for the delta star transformation relevant to reliability evaluation of complex systems. Nterconnection can be shaped to look like the letter y. the (y) configuration also is referred to as tee (t) structure without disturbing the electrical equivalence of the two structures and delta (Δ)in whic.
