Decoupling Capacitor Pdf Capacitor Electrical Network All decoupling capacitors must connect directly to a low impedance ground plane in order to be effective. short traces or vias are required for this connection to minimize additional series inductance. All capacitors will display impedance curves which are similar in general shape to those shown. the exact plots will be different, but the general shape stays the same.

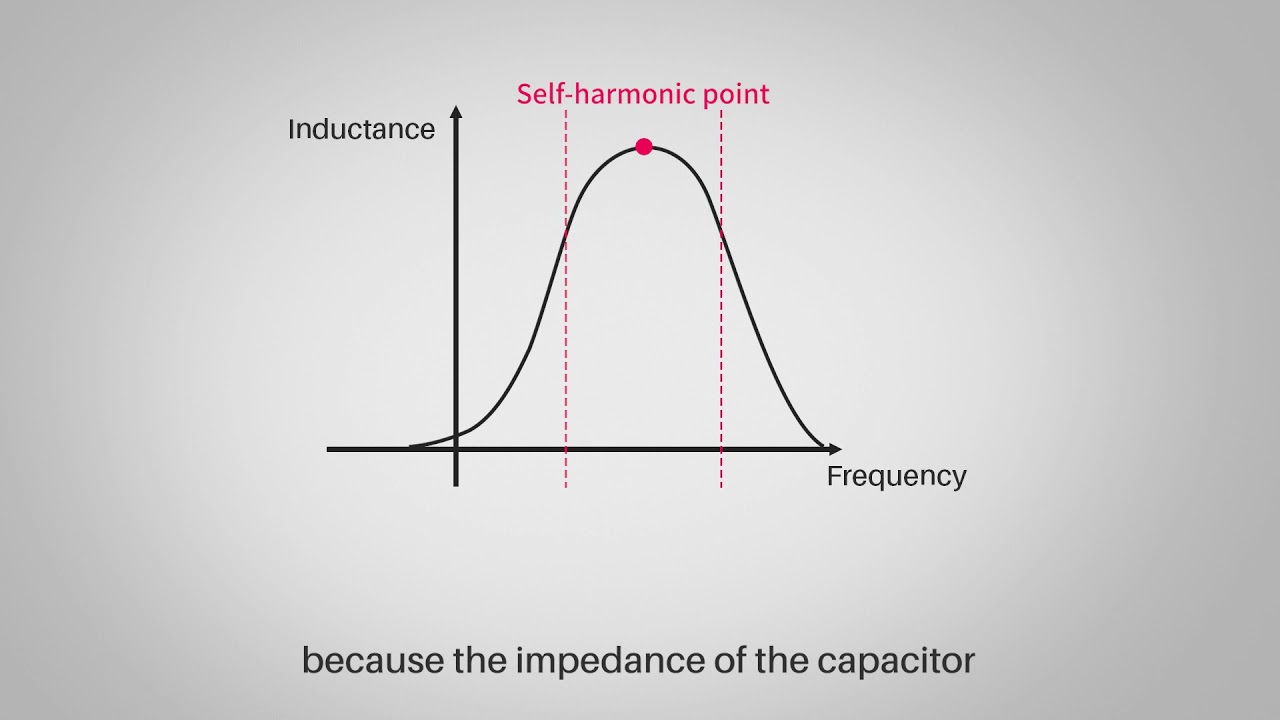

Decoupling Capacitor Tutorial Pdf Inductor Capacitor The key specification of the capacitor used for decoupling is the self resonant frequency, where the capacitor remains capacitive up to this frequency and starts to appear as an inductor above this frequency. The solution to this problem is to put capacitors, called decoupling or bypass capacitors, across the power and ground distribution conductors, physically close to the ics that are demanding the varying current. For high performance circuits, proper decoupling requires the designer to consider the frequency demands of the load, the frequency response of the capacitor, and the overall layout and routing of the pcb. In this paper, an attempt has been made to analyze the performance of pdn of a two layer and three layer p.c. board, for the same set of decoupling capacitors. the pdn design has been carried.
Module 5 Part1 Inductor Capacitor Pdf Capacitor Inductor For high performance circuits, proper decoupling requires the designer to consider the frequency demands of the load, the frequency response of the capacitor, and the overall layout and routing of the pcb. In this paper, an attempt has been made to analyze the performance of pdn of a two layer and three layer p.c. board, for the same set of decoupling capacitors. the pdn design has been carried. This video looks at factors impacting the impedance of the decoupling network, such as pcb trace length, via selection, and capacitor parasitics. the video also covers how current flows relative to the decoupling network and associated power and ground planes. A real capacitor includes both an inductor and resistor in the form of leads, traces, and even ground planes in series with it (figure 2). multi layer chip capacitors (mlc) have approximately 5 nh of parasitic inductance when mounted on a printed circuit board. First, a method of choosing decoupling capacitors at low frequency decoupling will be shown. this will be followed by a discussion on choosing low inductance capacitors for high frequency decoupling. Use 0.1 0.001uf ceramic (x7r etc)capacitor with every 1 3 pins for decoupling. power gnd plane pair is very high quality capacitor with extremely low esr and esl. each component supply the current in certain frequency range and overa ll d esi red response i s fl at line.
Decoupling Techniques Pdf Capacitor Inductor This video looks at factors impacting the impedance of the decoupling network, such as pcb trace length, via selection, and capacitor parasitics. the video also covers how current flows relative to the decoupling network and associated power and ground planes. A real capacitor includes both an inductor and resistor in the form of leads, traces, and even ground planes in series with it (figure 2). multi layer chip capacitors (mlc) have approximately 5 nh of parasitic inductance when mounted on a printed circuit board. First, a method of choosing decoupling capacitors at low frequency decoupling will be shown. this will be followed by a discussion on choosing low inductance capacitors for high frequency decoupling. Use 0.1 0.001uf ceramic (x7r etc)capacitor with every 1 3 pins for decoupling. power gnd plane pair is very high quality capacitor with extremely low esr and esl. each component supply the current in certain frequency range and overa ll d esi red response i s fl at line.
