Forces Acting On A Dam Structure Pdf Dam Pressure This document discusses the analysis of dams. it describes different types of dams and the hydrostatic forces that act on them, including the dam's weight, water weight, and hydrostatic uplift. Two dimensional (2d) and three dimensional (3d) analyses of dam behavior, taking into account the earth pressures and the hydrostatic load, using the finite element method (fem) based computer program diana, were performed.

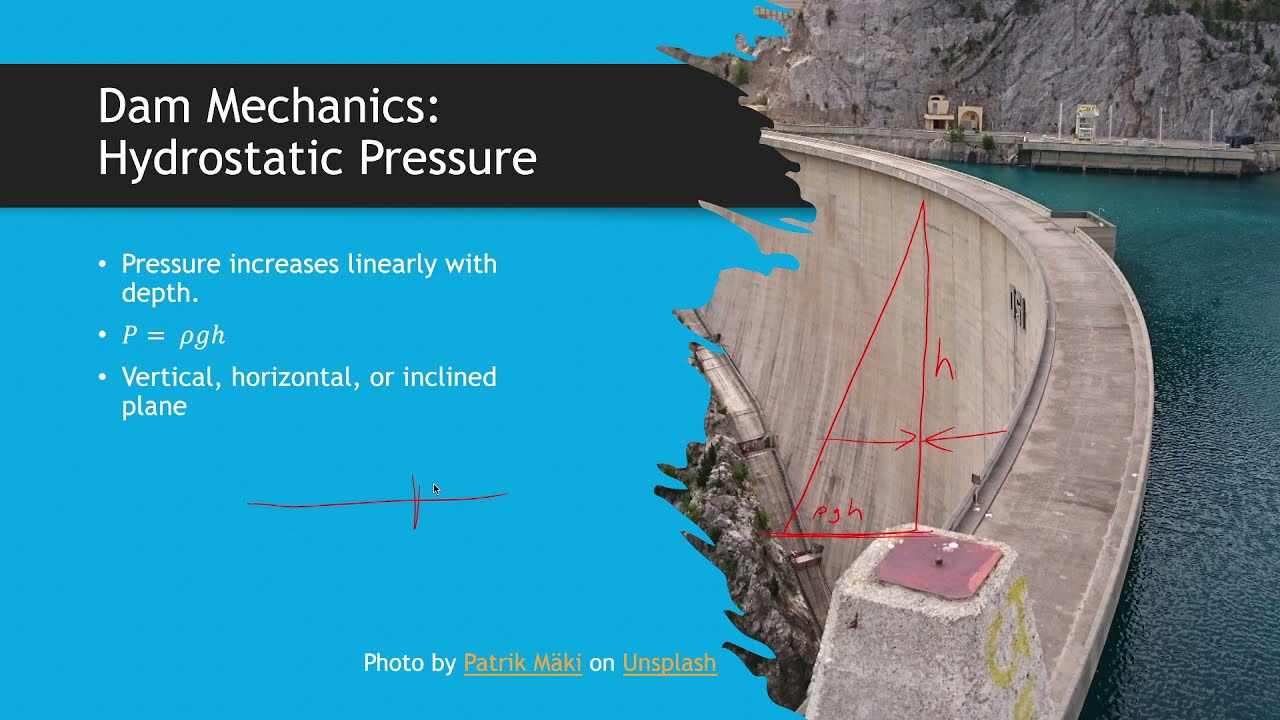

Hydrostatic Forces On Surfaces Pdf Pressure Dam One model considered only hydrostatic pressure, while the other included the self weight of the dam. finite element analysis (fea) was performed to compute bending (mxy), membrane (sxy), and shear stresses (sqx, sqy), offering insights into internal forces within the structure. Hello and welcome to today's condensed episode on dam mechanics and hydrostatic forces on a submerged, vertical plane. we will spend just a few minutes reviewing the topic before jumping. As the upstream water level rises, it exerts a horizontal hydrostatic force on the dam’s vertical face. this force increases with depth and acts perpendicular to the surface of the dam. Dam calculations: this calculator performs three main types of dam calculations: hydrostatic force, vertical force, and moment. these forces and moments are essential for understanding the stability and design of dams.
Hydraulics Lecture Notes 2 Hydrostatic Force On Plane Surfaces As the upstream water level rises, it exerts a horizontal hydrostatic force on the dam’s vertical face. this force increases with depth and acts perpendicular to the surface of the dam. Dam calculations: this calculator performs three main types of dam calculations: hydrostatic force, vertical force, and moment. these forces and moments are essential for understanding the stability and design of dams. The raised water level on the upstream edge or heel will also cause the water to seep under the dam. the pressure due to this seepage is commonly called hydrostatic uplift and will reduce the stability of the dam against sliding and against overturning. Different types of forces acts on a dam structure such as water pressure, self weight, wave pressure etc. determination of various forces which acts on the structure is the first step in the design of dams. Dams are acted upon by numerous forces, which include: hydrostatic pressure: it is the pressure exerted by water on the dam structure. self weight: it is the weight of the dam itself, which is useful in resisting overturning. uplift pressure: water pressure acting beneath the dam, trying to uplift. The main objective of this study is to perform a linear fe analysis of the indirasagar polavaram gravity dam by varying the upstream hydrostatic pressure with constant downstream tailwater pressure.
Lecture 4 Hydrostatic Force On Plane And Curved Surface Pdf The raised water level on the upstream edge or heel will also cause the water to seep under the dam. the pressure due to this seepage is commonly called hydrostatic uplift and will reduce the stability of the dam against sliding and against overturning. Different types of forces acts on a dam structure such as water pressure, self weight, wave pressure etc. determination of various forces which acts on the structure is the first step in the design of dams. Dams are acted upon by numerous forces, which include: hydrostatic pressure: it is the pressure exerted by water on the dam structure. self weight: it is the weight of the dam itself, which is useful in resisting overturning. uplift pressure: water pressure acting beneath the dam, trying to uplift. The main objective of this study is to perform a linear fe analysis of the indirasagar polavaram gravity dam by varying the upstream hydrostatic pressure with constant downstream tailwater pressure.
Solved Calculate The Horizontal And Vertical Hydrostatic Chegg Dams are acted upon by numerous forces, which include: hydrostatic pressure: it is the pressure exerted by water on the dam structure. self weight: it is the weight of the dam itself, which is useful in resisting overturning. uplift pressure: water pressure acting beneath the dam, trying to uplift. The main objective of this study is to perform a linear fe analysis of the indirasagar polavaram gravity dam by varying the upstream hydrostatic pressure with constant downstream tailwater pressure.
