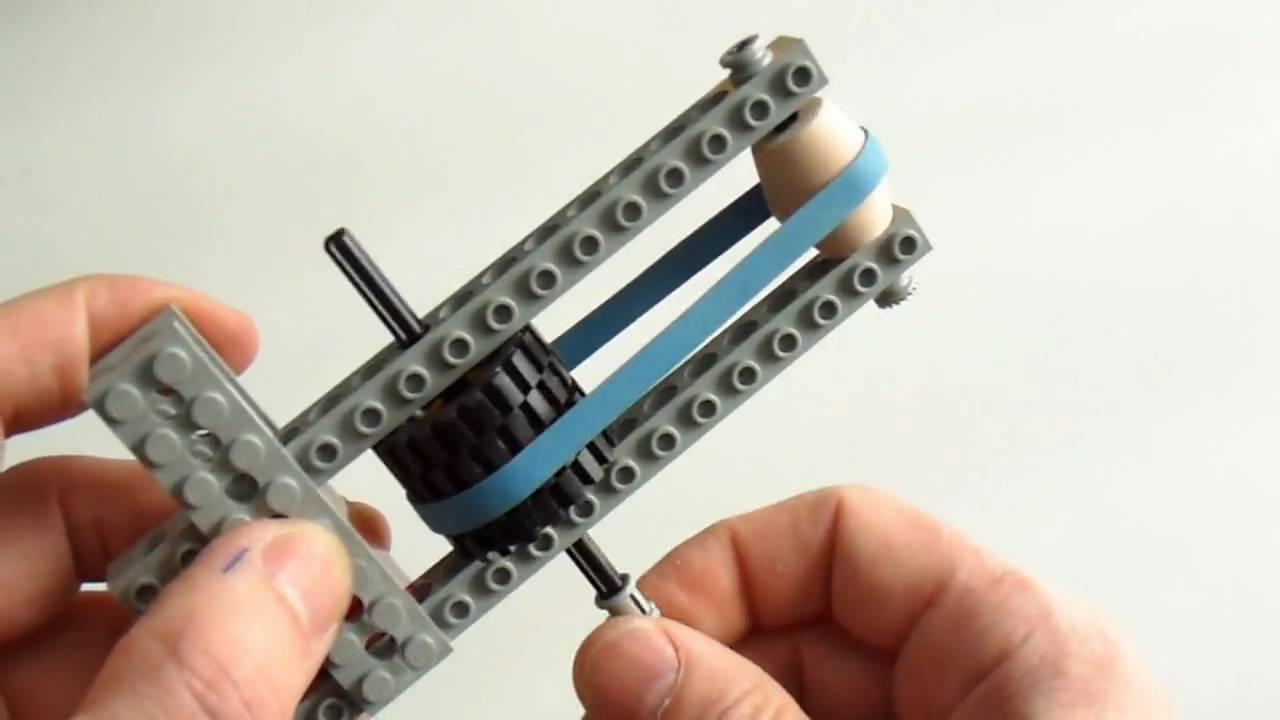

Crowning On Pulleys Helps Examians The purpose of a crowned pulley (or tapered pulley) is to assist with belt tracking. in most operating conditions, a belt will follow the path of highest tension. To understand this paradoxical behavior, let’s take a closer look at the belt on a crowned pulley. for this purpose, the figure below shows a flat belt attached to a cylindrical pulley (driving pulley) and to a crowned pulley (driven pulley).
Crowning Pulleys At 1000 Mohali Id 23231830462 The crowning is normally made as classical crowned pulley (fig. 1) or as a cylindrical tapered pulley (fig. 2). if pulley lagging is used we recommend to make the crowning in the “steel part “of the pulley and not in the pulley lagging !. Discover the impact of crowned and straight faced pulleys on belt tracking and maintenance in conveyor systems. The document provides specifications for radius and trapezoidal crown heights based on pulley diameter and width to properly track belts. it also notes to crown pulleys rotating in the same direction in a multiple pulley system and that the pulley width should be 10 20% wider than the belt width. Steering of flat conveyor belts is most commonly and efficiently accomplished by utilizing “crowned” pulleys. the crowned pulley utilizes a balance of opposing lateral forces to provide an automatic steering action, free from damaging abrasion.
Sv Stainless Steel Ss Crowning Pulleys 3 M Single Groove At 150 In The document provides specifications for radius and trapezoidal crown heights based on pulley diameter and width to properly track belts. it also notes to crown pulleys rotating in the same direction in a multiple pulley system and that the pulley width should be 10 20% wider than the belt width. Steering of flat conveyor belts is most commonly and efficiently accomplished by utilizing “crowned” pulleys. the crowned pulley utilizes a balance of opposing lateral forces to provide an automatic steering action, free from damaging abrasion. To prevent the flat belt from slipping, at least one pulley must be crowned, preferably a larger pulley or a pulley with the greatest contact angle. usually the available pulleys are crowned to iso 22. Choose from our selection of crowned pulleys, including v belt pulleys, timing belts and pulleys, and more. same and next day delivery. Crowned pulleys are designed to assist in tracking belting in conveyor systems. there are several approaches to the design of crowned pulleys, but they all have the same basic design feature, the center of the pulley has a larger diameter than the outer edges of the pulley, thus the “crown.”. In a system with multiple pulleys, crown the pulleys that turn the same way. the cylindrical part of the pulley w c is half of the belt width w b. also, it is recommended for the pulley width w p to be approximately 10 to 20% wider than the belt width w b for the pulley crown to function properly.
Crowning Pulleys To prevent the flat belt from slipping, at least one pulley must be crowned, preferably a larger pulley or a pulley with the greatest contact angle. usually the available pulleys are crowned to iso 22. Choose from our selection of crowned pulleys, including v belt pulleys, timing belts and pulleys, and more. same and next day delivery. Crowned pulleys are designed to assist in tracking belting in conveyor systems. there are several approaches to the design of crowned pulleys, but they all have the same basic design feature, the center of the pulley has a larger diameter than the outer edges of the pulley, thus the “crown.”. In a system with multiple pulleys, crown the pulleys that turn the same way. the cylindrical part of the pulley w c is half of the belt width w b. also, it is recommended for the pulley width w p to be approximately 10 to 20% wider than the belt width w b for the pulley crown to function properly.
