A Diagram Of Spin Echo Pulse Sequence Conventional B Schematic Of Download scientific diagram | conventional spin echo pulse sequence from publication: detection of explosive precursors using low field magnetic resonance imaging | the method of. The spin echo sequence is made up of a series of events : 90° pulse – 180° rephasing pulse at te 2 – signal reading at te. this series is repeated at each time interval tr (repetition time). with each repetition, a k space line is filled, thanks to a different phase encoding.
A Diagram Of Spin Echo Pulse Sequence Conventional B Schematic Of The fse tse pulse sequence superficially resembles a conventional spin echo (cse) sequence in that it uses a series of 180º refocusing pulses after a single 90º pulse to generate a train of echoes. The two variables of interest in spin echo sequences are the repetition time (tr) and the echo time (te). all spin echo sequences include a slice selective 90 degree pulse followed by one or more 180 degree refocusing pulses as shown in the diagrams. Many of today’s applications in routine clinical use are based on this elementary sequence. in this review article, the principles of the spin echo formation are dem onstrated on which the generation of the fundamental image contrasts t1, t2, and proton density is based. Conventional spin echo sequences are the traditional and basic way to acquire mri images. conventional spin echo can be either: t1, t2 or proton density weighted. cse contains one echo per te period (see diagram). due to scan time length being long, cse’s have been innovated and rarely are used.

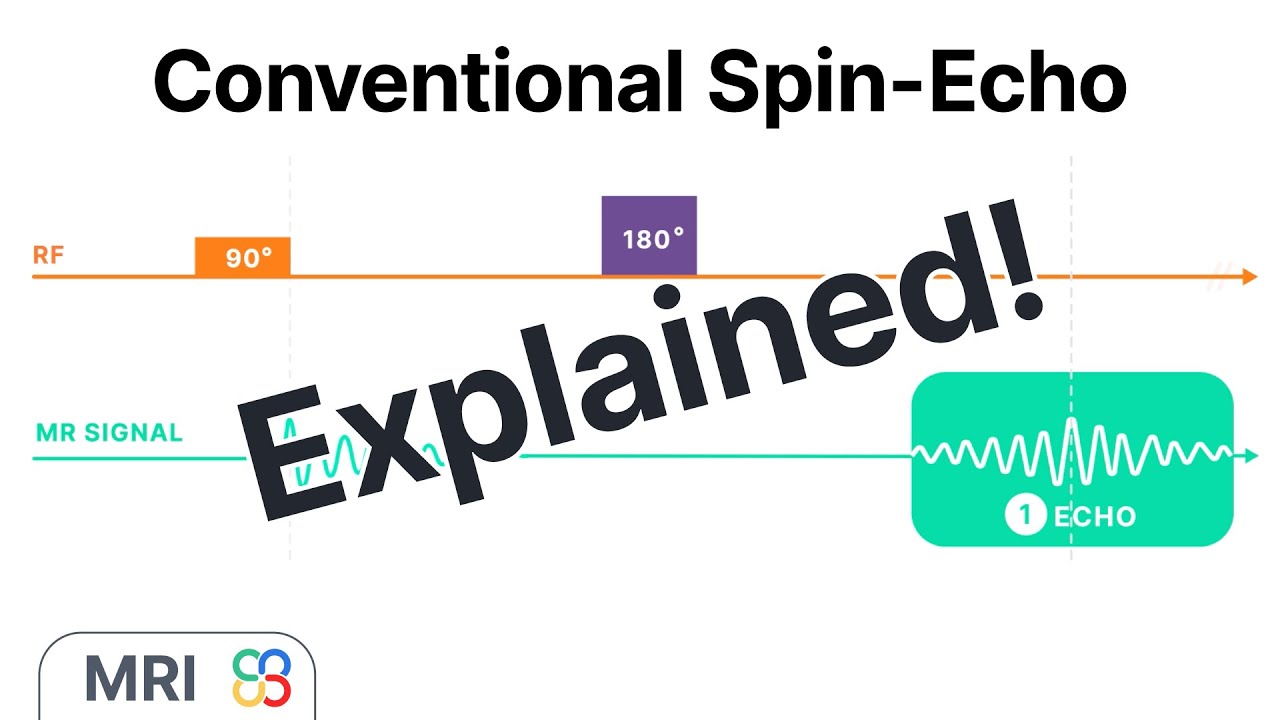

Pulse Sequence Diagram Of A Mars Modified Conventional Spin Echo Mr Many of today’s applications in routine clinical use are based on this elementary sequence. in this review article, the principles of the spin echo formation are dem onstrated on which the generation of the fundamental image contrasts t1, t2, and proton density is based. Conventional spin echo sequences are the traditional and basic way to acquire mri images. conventional spin echo can be either: t1, t2 or proton density weighted. cse contains one echo per te period (see diagram). due to scan time length being long, cse’s have been innovated and rarely are used. Simplified pulse diagram of the spin echo sequence. the top line shows the radiofrequency pulses sent from the scanner, while the middle line shows the mr signal. This document discusses different pulse sequences used in mri, including spin echo sequences that rephase spins using 180 degree pulses. it focuses on conventional spin echo, fast spin echo, and inversion recovery sequences. There are two broad classes of pulse sequences used: gradient echo and spin echo methods. gradient echo sequences use a simpler pulse and acquire acquisition, while spin echo sequences use an additional rf refocusing pulse that eliminates the effects of off resonance that are often undesirable. Conventional spin echo (se or cse) pulse sequences are used to produce t1, t2 or proton density weighted images and are one of the most basic pulse sequences used in mri.
Pulse Sequence Diagram Of A Mars Modified Conventional Spin Echo Mr Simplified pulse diagram of the spin echo sequence. the top line shows the radiofrequency pulses sent from the scanner, while the middle line shows the mr signal. This document discusses different pulse sequences used in mri, including spin echo sequences that rephase spins using 180 degree pulses. it focuses on conventional spin echo, fast spin echo, and inversion recovery sequences. There are two broad classes of pulse sequences used: gradient echo and spin echo methods. gradient echo sequences use a simpler pulse and acquire acquisition, while spin echo sequences use an additional rf refocusing pulse that eliminates the effects of off resonance that are often undesirable. Conventional spin echo (se or cse) pulse sequences are used to produce t1, t2 or proton density weighted images and are one of the most basic pulse sequences used in mri.
Pulse Sequence Diagram Of A Mars Modified Conventional Spin Echo Mr There are two broad classes of pulse sequences used: gradient echo and spin echo methods. gradient echo sequences use a simpler pulse and acquire acquisition, while spin echo sequences use an additional rf refocusing pulse that eliminates the effects of off resonance that are often undesirable. Conventional spin echo (se or cse) pulse sequences are used to produce t1, t2 or proton density weighted images and are one of the most basic pulse sequences used in mri.
