Feedback Control Theory Pdf Control Theory Feedback This document is a lab manual for a control systems course. it contains instructions and procedures for experiments involving matlab, simulink, laplace transforms, modeling linear time invariant systems, and analyzing system response and stability. Before going into a pid control, let's take a look at a pi control. from the table, we see that an integral controller (ki) decreases the rise time, increases both the overshoot and the settling time, and eliminates the steady state error.
Control System Lab 1 Pdf System Control System Many important characteristics of dynamic or control systems can be determined from the transfer function. the transfer function is commonly used in the analysis of single input single output electronic system, for instance. The book is addressed to students in engineering who have had an undergraduate course in signals and systems, including an introduction to frequency domain methods of analyzing feedback control systems, namely, bode plots and the nyquist criterion. To analyze the tracking behavior with respect to the frequency of the reference signal and to quantify the tracking error, we need to study the system behavior not only in the time domain (t ∈ r) but also in the complex domain (s = σ jω ∈ c). Aim: to study control action of light control system (a) the study of lamp response (b) the controller with amplifier in closed loop (c) and the introduction of p i controller to improve the response.
01 Anatomy Of A Feedback Control System Pdf Control System To analyze the tracking behavior with respect to the frequency of the reference signal and to quantify the tracking error, we need to study the system behavior not only in the time domain (t ∈ r) but also in the complex domain (s = σ jω ∈ c). Aim: to study control action of light control system (a) the study of lamp response (b) the controller with amplifier in closed loop (c) and the introduction of p i controller to improve the response. The three mode controllers (pid) are the most common feedback controller used in industrial control. pid controllers are used for controlling almost all process variables like temperature, flow, level, pressure, etc. in a continuous or bath process. Feedback control systems feedback is widely used in automatic control terminology: 2 the system to be controlled is called the plant 2. Solutions and problems of control systems by a.k. jairath, cbs publishers. a thorough knowledge on open loop and closed loop control systems, concept of feedback in control systems. understanding of transfer function representation through block diagram algebra and signal flow graphs. Negative feedback improves performance (gain stability, linearity, frequency response, step response) and reduces sensitivity to parameter variations due to manufacturing or environment.

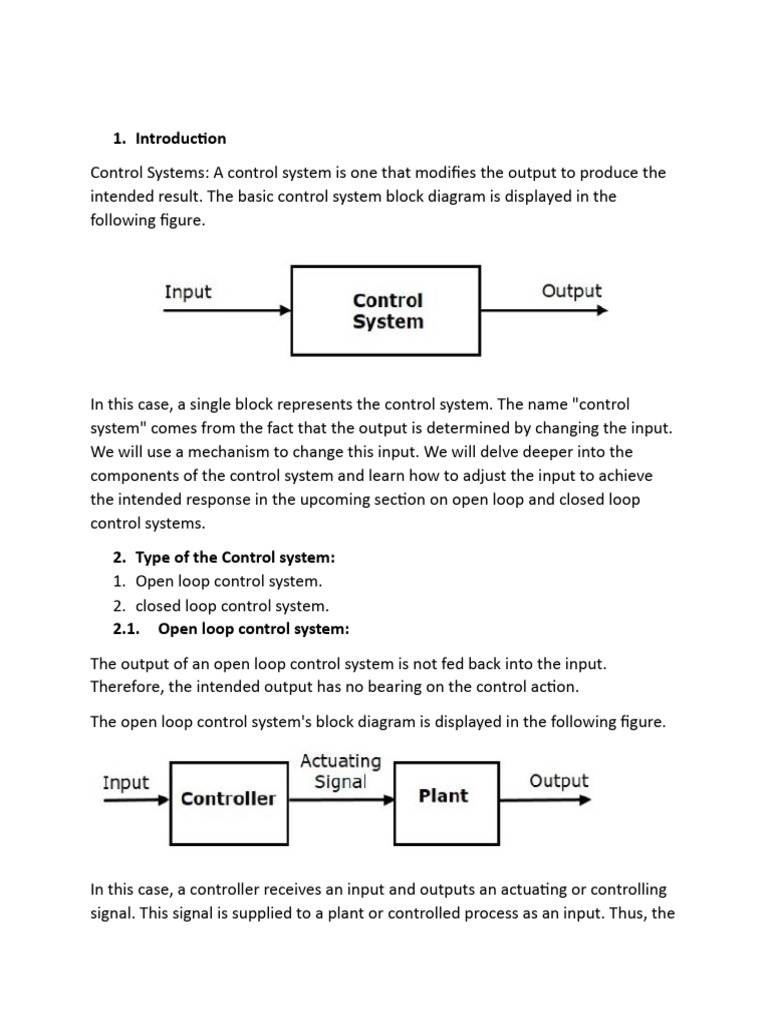

Lab 2 Contorl System Pdf Control Theory Feedback The three mode controllers (pid) are the most common feedback controller used in industrial control. pid controllers are used for controlling almost all process variables like temperature, flow, level, pressure, etc. in a continuous or bath process. Feedback control systems feedback is widely used in automatic control terminology: 2 the system to be controlled is called the plant 2. Solutions and problems of control systems by a.k. jairath, cbs publishers. a thorough knowledge on open loop and closed loop control systems, concept of feedback in control systems. understanding of transfer function representation through block diagram algebra and signal flow graphs. Negative feedback improves performance (gain stability, linearity, frequency response, step response) and reduces sensitivity to parameter variations due to manufacturing or environment.
Operations Research Feedback Control System In Control Theory Ppt Solutions and problems of control systems by a.k. jairath, cbs publishers. a thorough knowledge on open loop and closed loop control systems, concept of feedback in control systems. understanding of transfer function representation through block diagram algebra and signal flow graphs. Negative feedback improves performance (gain stability, linearity, frequency response, step response) and reduces sensitivity to parameter variations due to manufacturing or environment.
