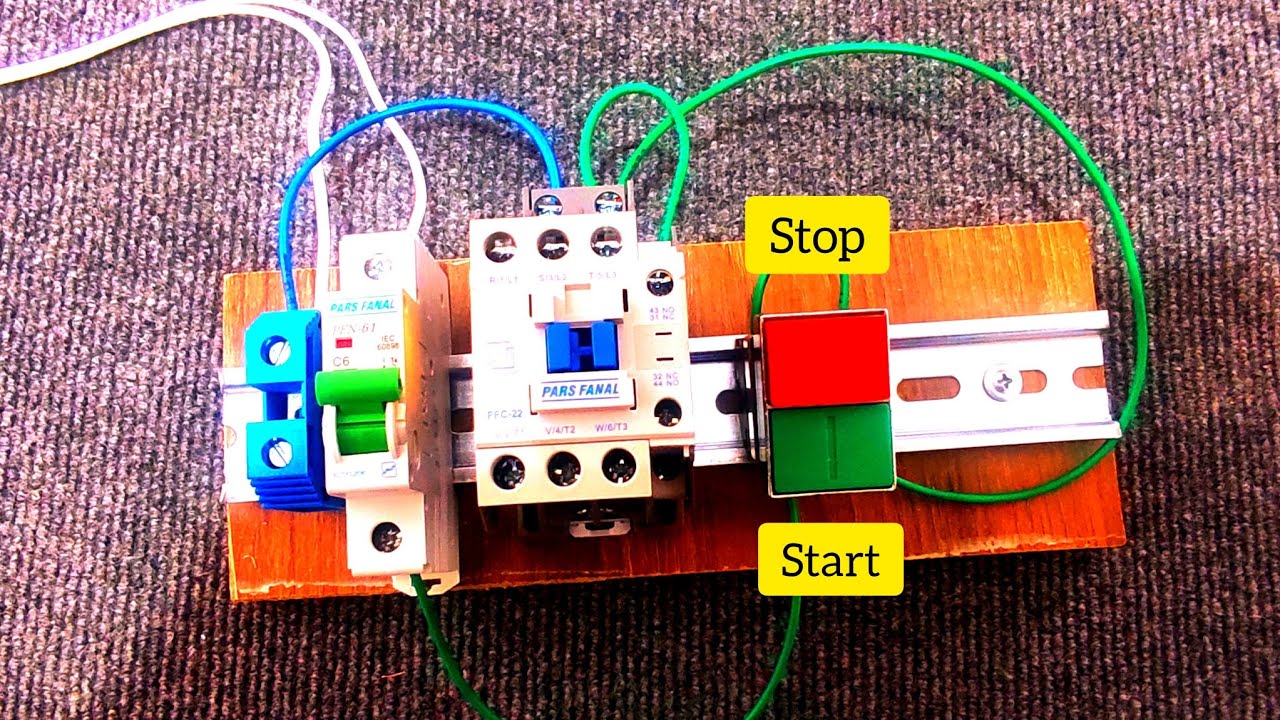

Start Stop Circuit Contactor Self Holding With Push Button Youtube The document describes how to build a self holding circuit using a contactor, push buttons, and power supply. it explains how to connect a normally open contactor and normally open and normally closed push buttons to control the contactor's switching of a load when the buttons are pressed. This video about contactor self holding with push button | start stop button let's learn what self holding in contactor means more.

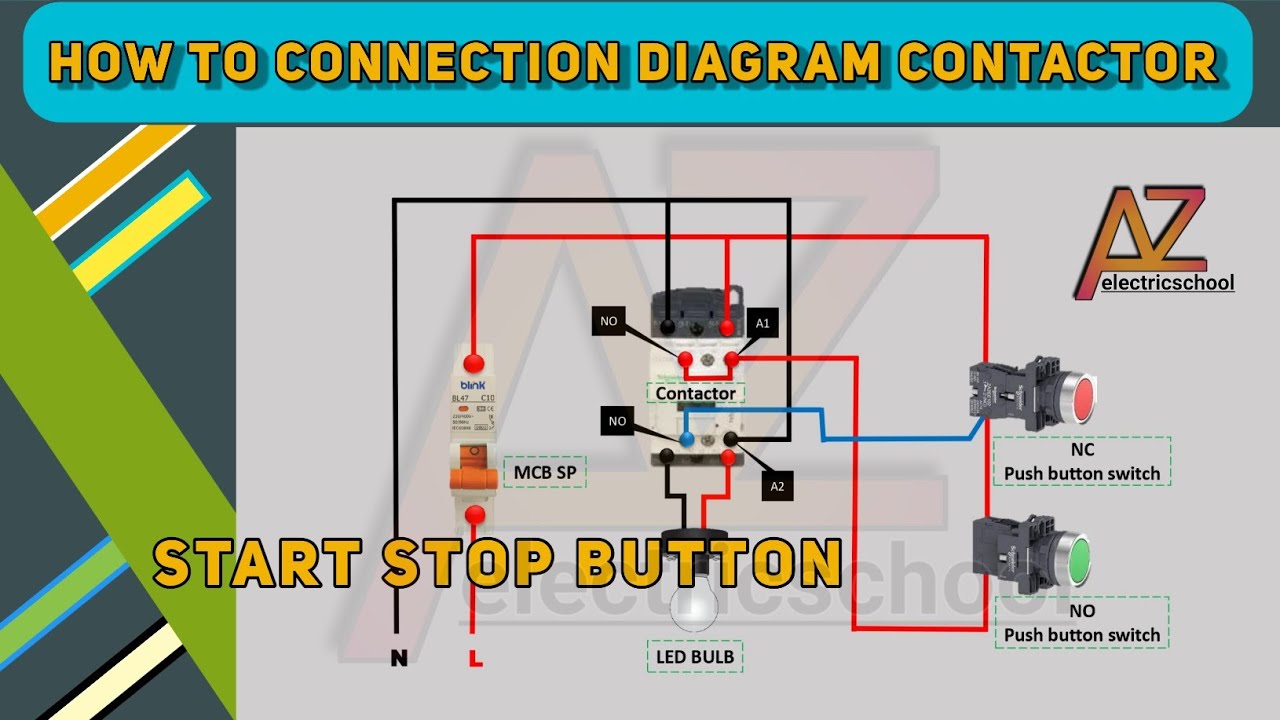

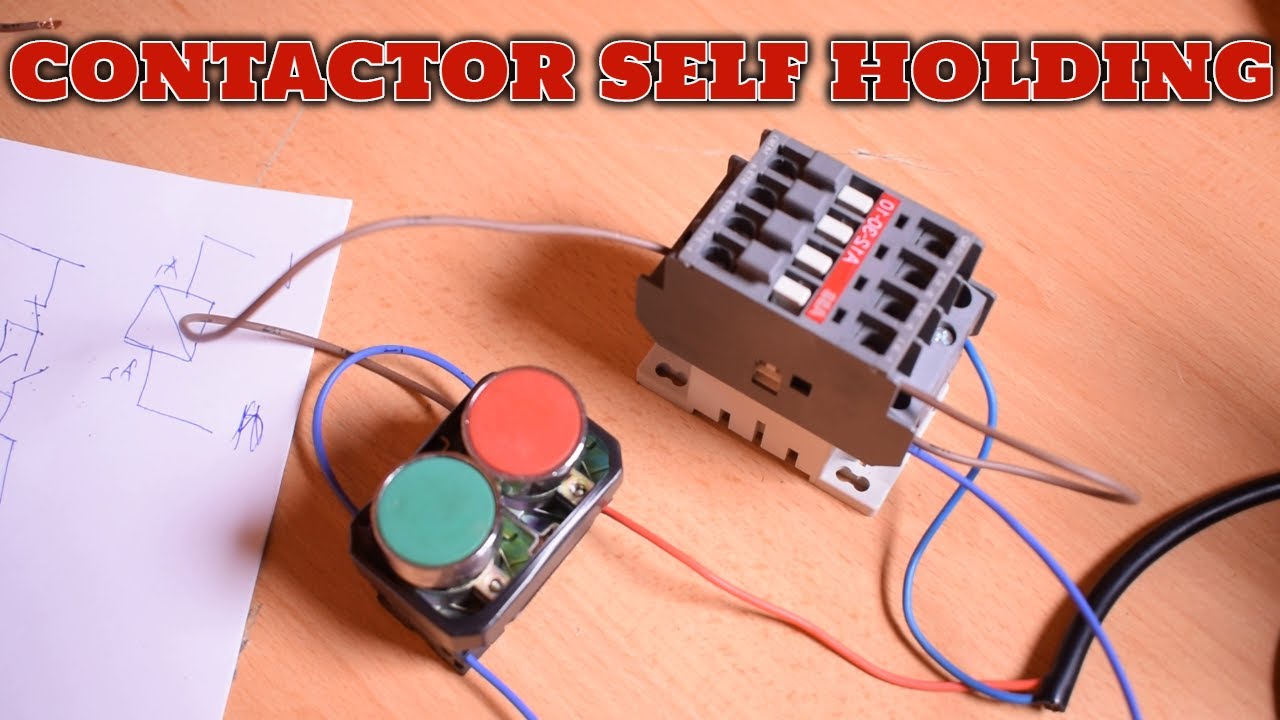

Contactor Self Holding With Push Button Start Stop Button On Off Button This contactor holding circuit is mostly used in the motor controller or motor starter circuit such as dol starter, star delta starter, etc. the main objective of this holding circuit is to keep the contactor on condition even if we release the pressure from the no push button switch. Let's say you want to control your three or single phase motor with a self holding circuit. (1) contactor (4 poles) or with no auxiliary. (2) stop and start push buttons. (3) auto cables (for connection) first, make sure you follow the circuit as per reference in the video. Pada umumnya sebuah instalasi control dengan menggunakan relay atau kontaktor, fungsi self holding ini selalu ada. saya akan memberikan contoh paling sederhana bagaimana fungsi self holding ini bekerja serta analisanya ditinjau dari diagram kontrol dan diagram daya yang ada. Learn how to connect a magnetic contactor self holding circuit using push button (start stop). contactor coil connection no & nc push button wiring self holding circuit explained control panel basic wiring.

The Self Holding Push Button Explained Youtube Pada umumnya sebuah instalasi control dengan menggunakan relay atau kontaktor, fungsi self holding ini selalu ada. saya akan memberikan contoh paling sederhana bagaimana fungsi self holding ini bekerja serta analisanya ditinjau dari diagram kontrol dan diagram daya yang ada. Learn how to connect a magnetic contactor self holding circuit using push button (start stop). contactor coil connection no & nc push button wiring self holding circuit explained control panel basic wiring. Learn how to create a contactor holding circuit diagram for efficient and reliable control of electrical systems. understand the components involved and their connections to ensure the safe operation of your circuits. This technique is commonly used with contactors. a no push button connects the coil to a voltage source, the no contact of the relay contactor then closes and connects to the coil as well and thereby powers it. the push button can now be released as the circuit will hold itself active. The core of a motor self locking circuit is to connect the auxiliary normally open contact of the contactor in parallel with the start button. this configuration enables continuous power supply after the start button is pressed, ensuring the motor remains in operation even when the button is released. Rangkaian self holding banyak digunakan diberbagai aplikasi pengendali berbasis kontaktor magnetik. seperti apa prinsip kerjanya?.
