Physics 133 Ch 24 Capacitance And Dielectrics By Hrj Pdf Each material has a break down threshold electric field, named dielectric strength (just like atmosphere when lightning happens). this puts an upper limit of the possible potential you can apply to the capacitor. A parallel plate capacitor initially has a potential difference of 400 v and is then disconnected from the charging battery. if the plate spacing is now doubled (without changing q), what is the new value of the voltage?.

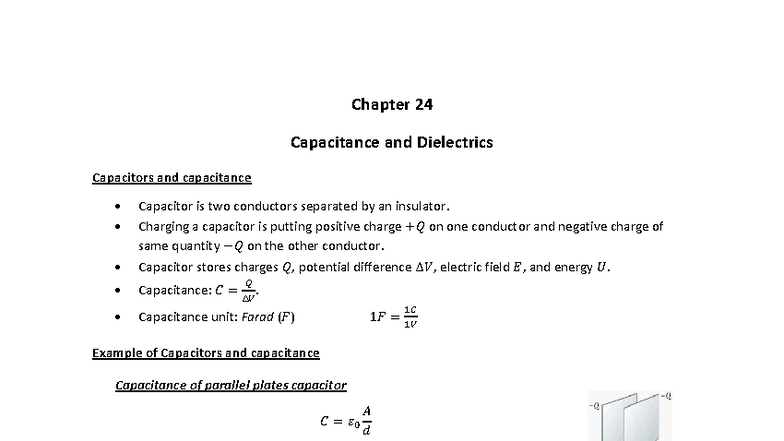

Chapter 24 29 Summary Capacitance Dielectrics And Circuits Studocu Ch 24 capacitance dielectrics free download as pdf file (.pdf), text file (.txt) or view presentation slides online. A parallel plate capacitor consists of two parallel conducting plates separated by a distance that is small compared to their dimensions. (see figure 24.2 below.). We treat this system as two capacitors, one with a dielectric, and one without a dielectric. both capacitors have their high voltage plates in contact and their low voltage plates in d contact, so they are in parallel. Capacitor filled with dielectric of permittivity 2 = k20, c = kc0 energy density in dielectric:.
Capacitance And Dielectrics Overview Pdf Capacitor Capacitance We treat this system as two capacitors, one with a dielectric, and one without a dielectric. both capacitors have their high voltage plates in contact and their low voltage plates in d contact, so they are in parallel. Capacitor filled with dielectric of permittivity 2 = k20, c = kc0 energy density in dielectric:. Capacitance (c) is equal to the charge (q ) between two charges or charged “regions” divided by the voltage (v) in those regions. This chapter discusses capacitance and dielectrics. it begins by defining a capacitor and capacitance, and providing examples of calculating the capacitance of parallel plate, cylindrical, and spherical capacitors. The capacitance does not depend on the voltage; it is a function of the geometry (size, shape, and relative position of the two conductors) of and material that separates the capacitor. Find (a) the equivalent capacitance of the combination, (b) the charge stored on the positively charge plate of each capacitor, (c) the voltage across each capacitor, and (d) the energy stored in each capacitor.
24 Capacitance And Dielectrics Pdf Capacitor Capacitance Capacitance (c) is equal to the charge (q ) between two charges or charged “regions” divided by the voltage (v) in those regions. This chapter discusses capacitance and dielectrics. it begins by defining a capacitor and capacitance, and providing examples of calculating the capacitance of parallel plate, cylindrical, and spherical capacitors. The capacitance does not depend on the voltage; it is a function of the geometry (size, shape, and relative position of the two conductors) of and material that separates the capacitor. Find (a) the equivalent capacitance of the combination, (b) the charge stored on the positively charge plate of each capacitor, (c) the voltage across each capacitor, and (d) the energy stored in each capacitor.
